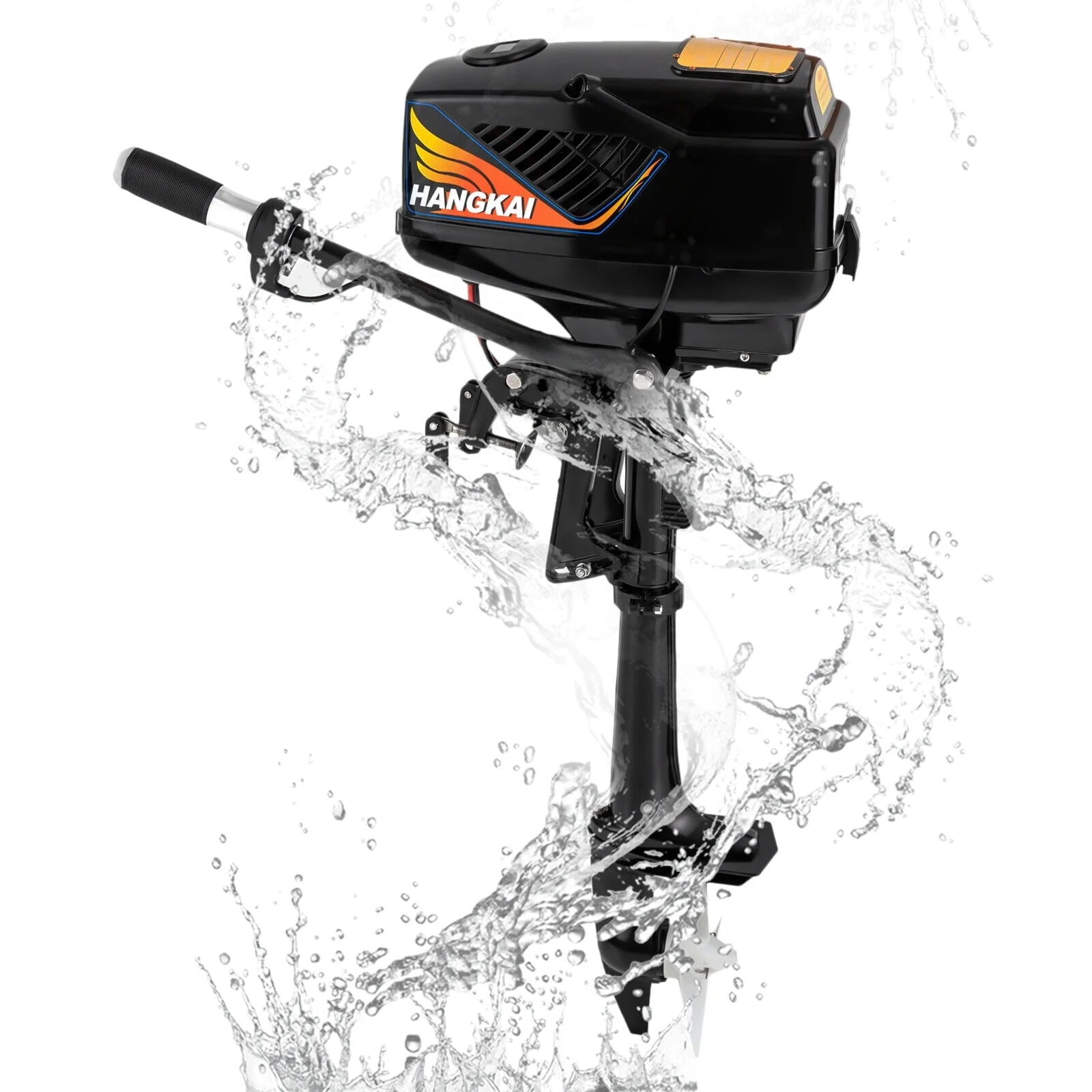

Oukaning 48V 5 HP 1200W Electric Outboard Motor Fishing Boat Trolling Engine Short Shaft

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share

          🎁Some products are for clearance！

          🔥Limited stock at this price!

          ⏰The time for the clearance activity is limited！

          🎁Some products are for clearance！

          🔥Limited stock at this price!

          ⏰The time for the clearance activity is limited！

          Description

          【Product description】

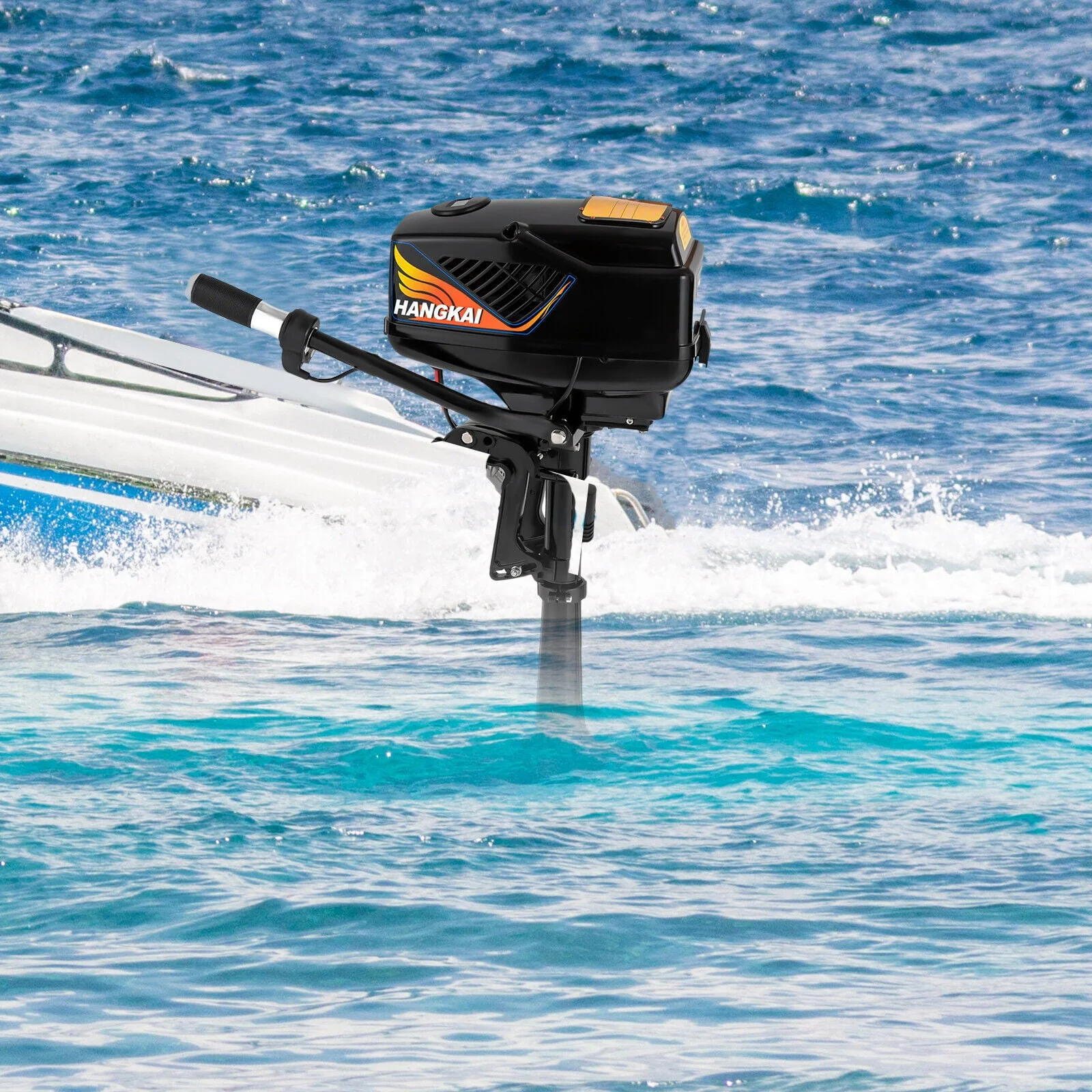

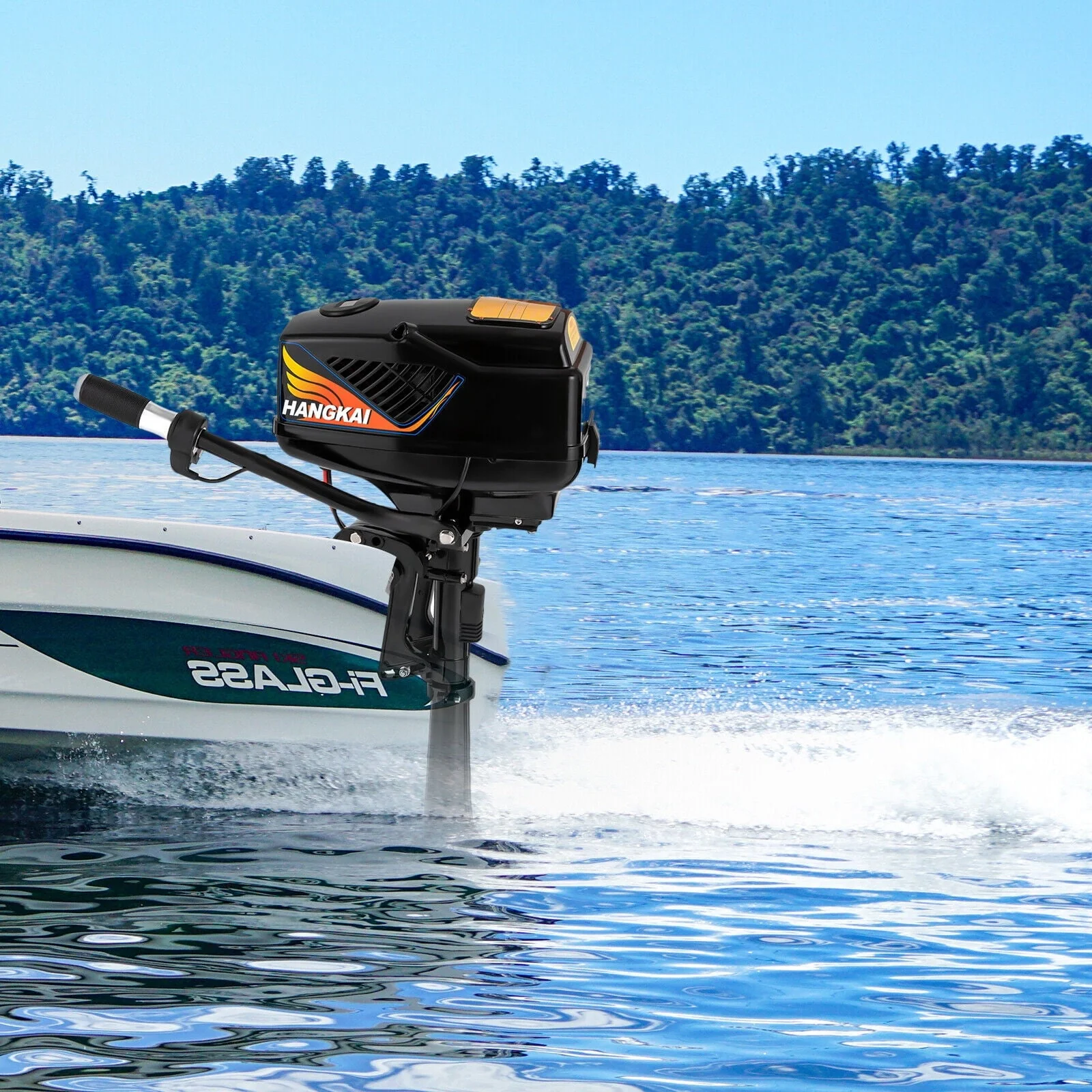

          With a huge thrust, a super strong shaft, and precise speed control, the outboard engine is a good helper for your water work. Its brushless pure copper motor and flexible steering let you sneak up on fish, outdoor adventure, etc. with the best speed and low noise.This electric outboard motor is suitable for small ships with different materials within 16.4 feet in length, such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquaculture, outdoor exploration, etc.

          【Specification】

          Model: DD-48V-1200W

          Power: 1200W/5HP

          Rated Voltage: 48V

          Rated Current: 18A

          Rated Speed: 3000rpm

          No-load Speed: 4000 rpm

          Process: Spray Painting

          Gear Ratio: 2.08(27:13)

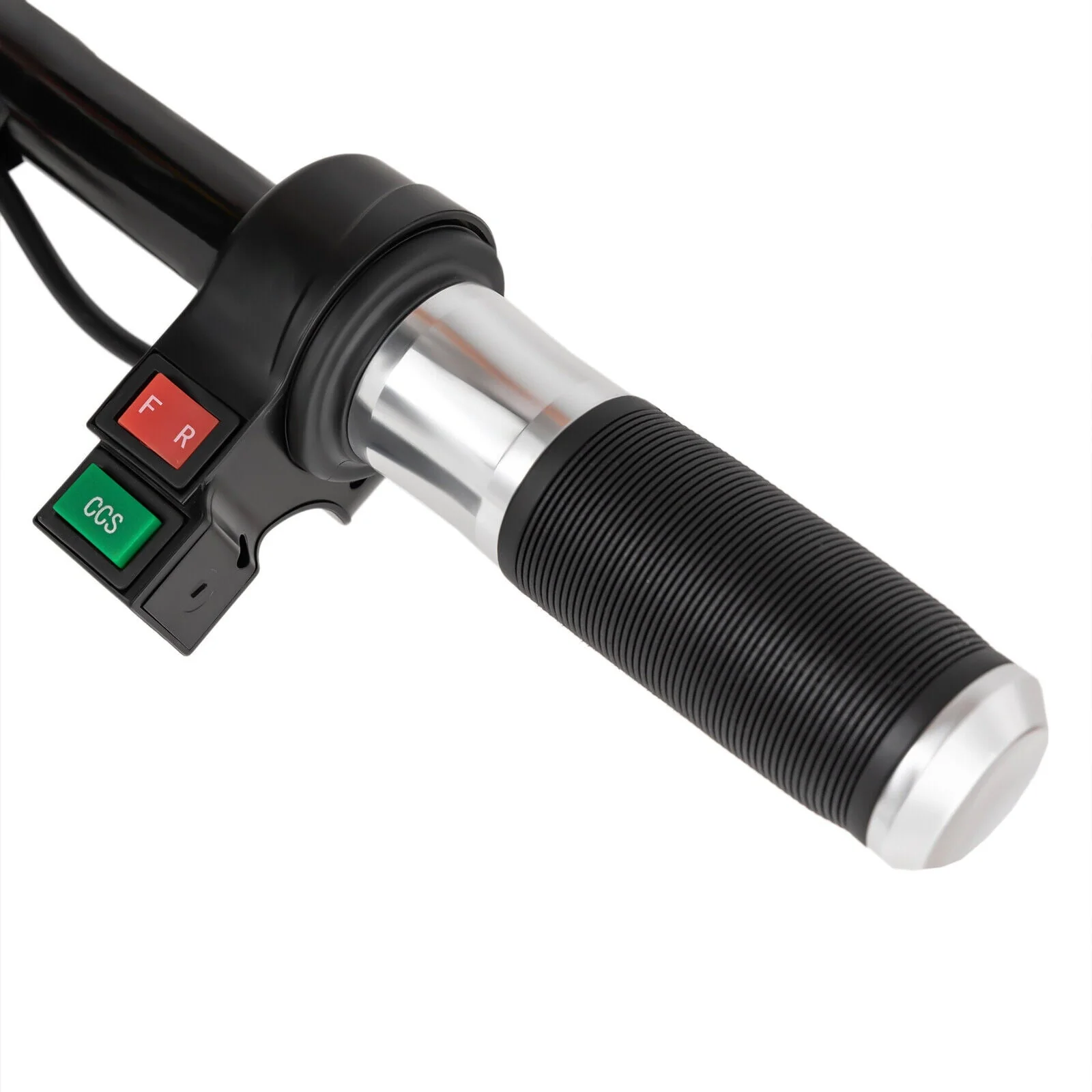

          Control System: Tiller Control

          Max. Speed: 15km/h/9.3mph

          Motor Type: Pure Copper Brushless Motor

          Reverse Gear: Yes

          Max. Load-bearing Capacity: 500kg/1102lbs

          Recommended Battery: 1*48V/4*12V (Not Included )

          Propeller Model(in): 7-1/4x5-A(The size of the propeller is 7.25 inches/18.4cm, and the propelling distance of the propeller is 5 inches/12.7cm after one revolution)

          Length of Suitable Ships: Less than 5m/16.4ft

          Package Size: 95*42*29cm/37.4*16.53*11.41in

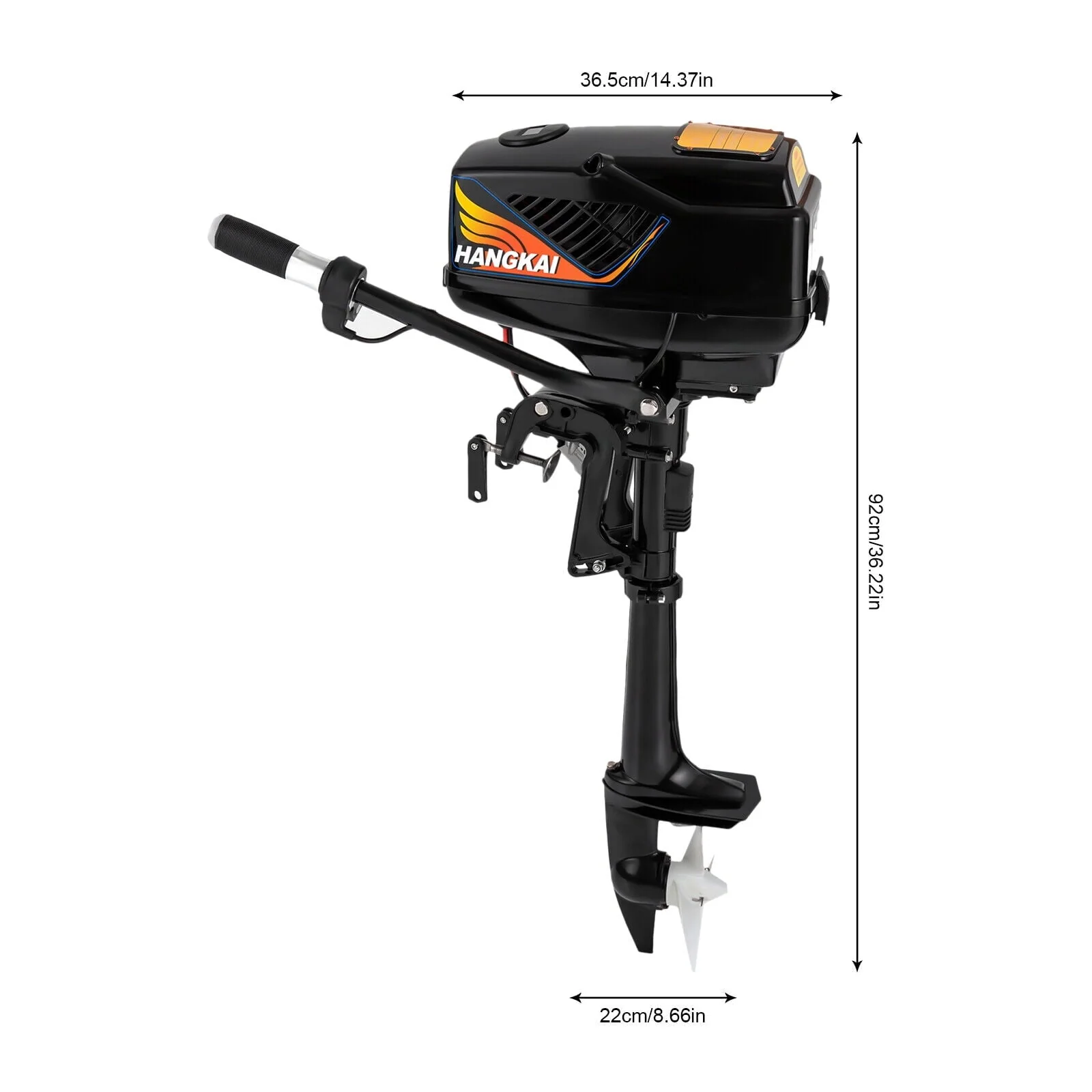

          Product Size: 92*36.5*22cm/36.22*14.37*8.66in

          Gross Weight: 14kg/30.86lbs

          Net Weight: 12kg/26.45lbs

          Tail Plate Height: 42cm/16.53in(Short Shaft)

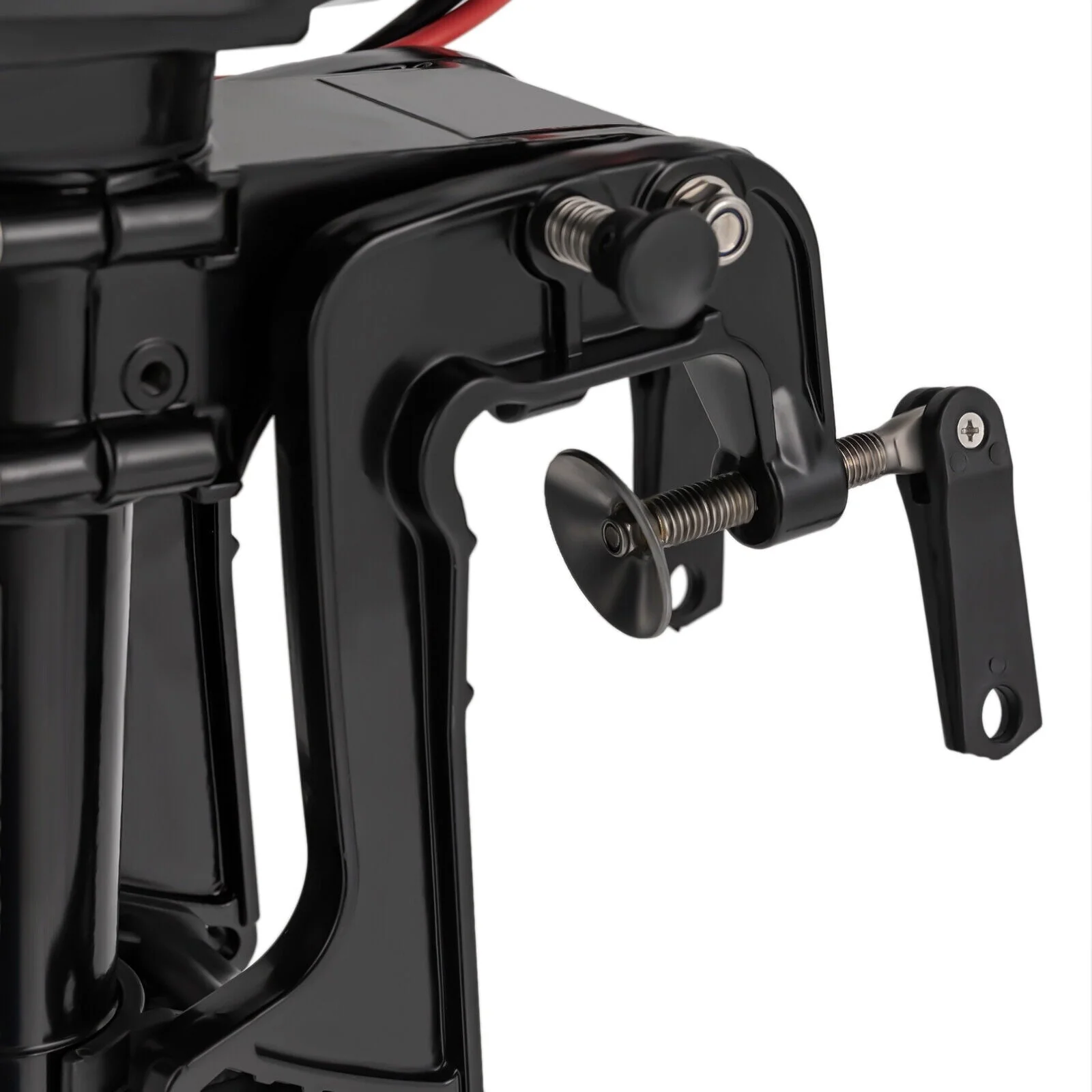

          Stern Plate Adapter Height: 40cm/15.74in

          【Maintenance】

          1.Complete machine maintenance(The following time and date intervals are in no order.)

          1.1 Daily inspection: whether screws and nuts are loose.

          1.2 Clean the dust on the surface of the whole machine every 8 hours.

          1.3 Check the connection of high-voltage line every 100 hours.

          2. Keep the product clean

          2.1 Clean the dirt on the motor controller regularly. It is forbidden to spray with water, and clean it with a brush and high-pressure air.

          2.2 Before starting each time, combustible materials around the controller must be cleaned to avoid fire.

          2.3 Clean the sundries in the cooling system to avoid blocking the air duct. The cooling fan should be cleaned regularly to avoid overheating and mechanical damage.

          【Common Faults and Troubleshooting】

          1. If the starting handle is found to be powered off during operation, please check whether the positive and negative poles of the battery and the whole set of power cables are connected properly.

          2. Always check whether the controller screws are loose.

          3. The gearbox should be replaced with gear oil for three months

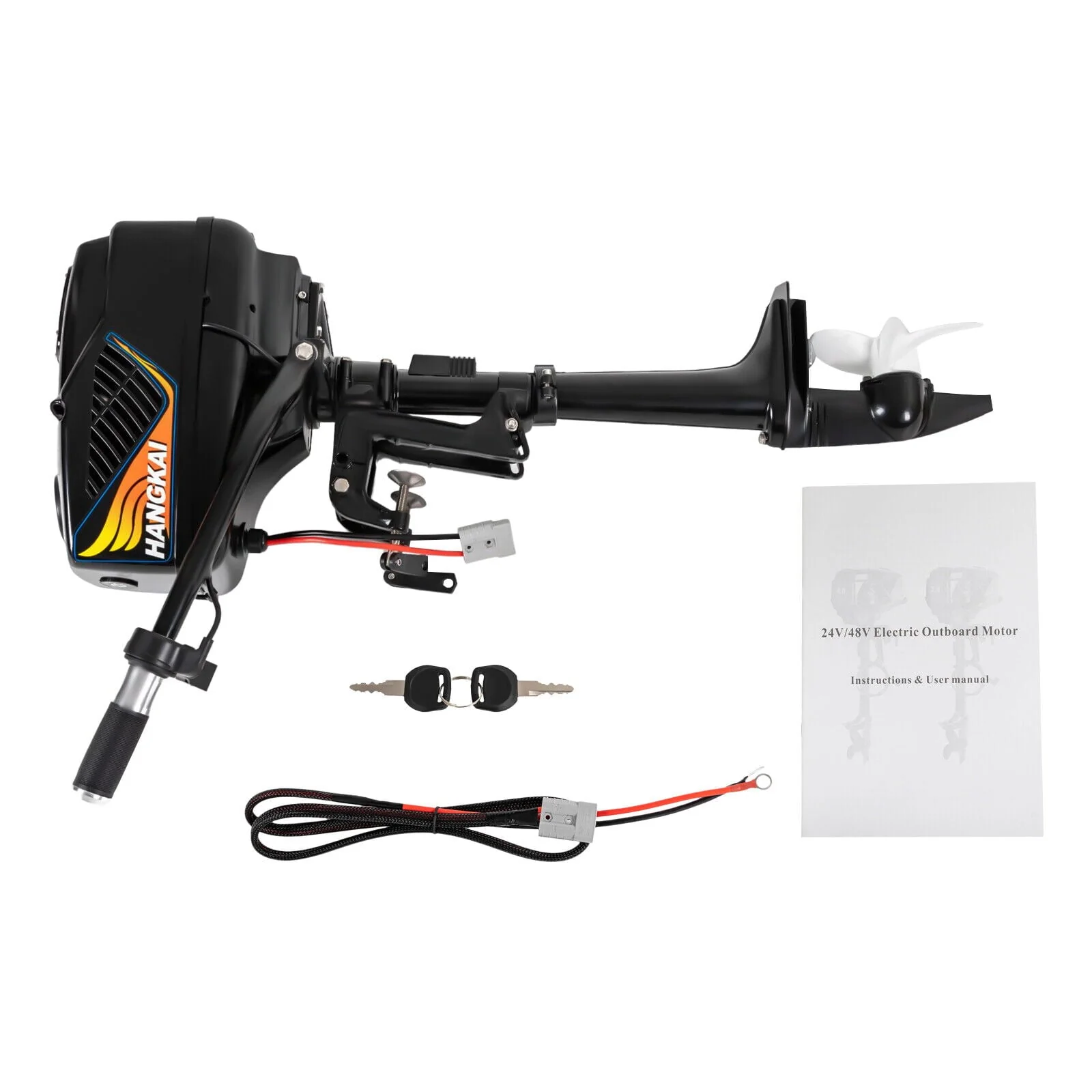

          【Package Included】

          1* Electric Outboard Motor

          1* Propeller

          1*English User Manual

          2*Keys

          All Accessories Needed for Installation
