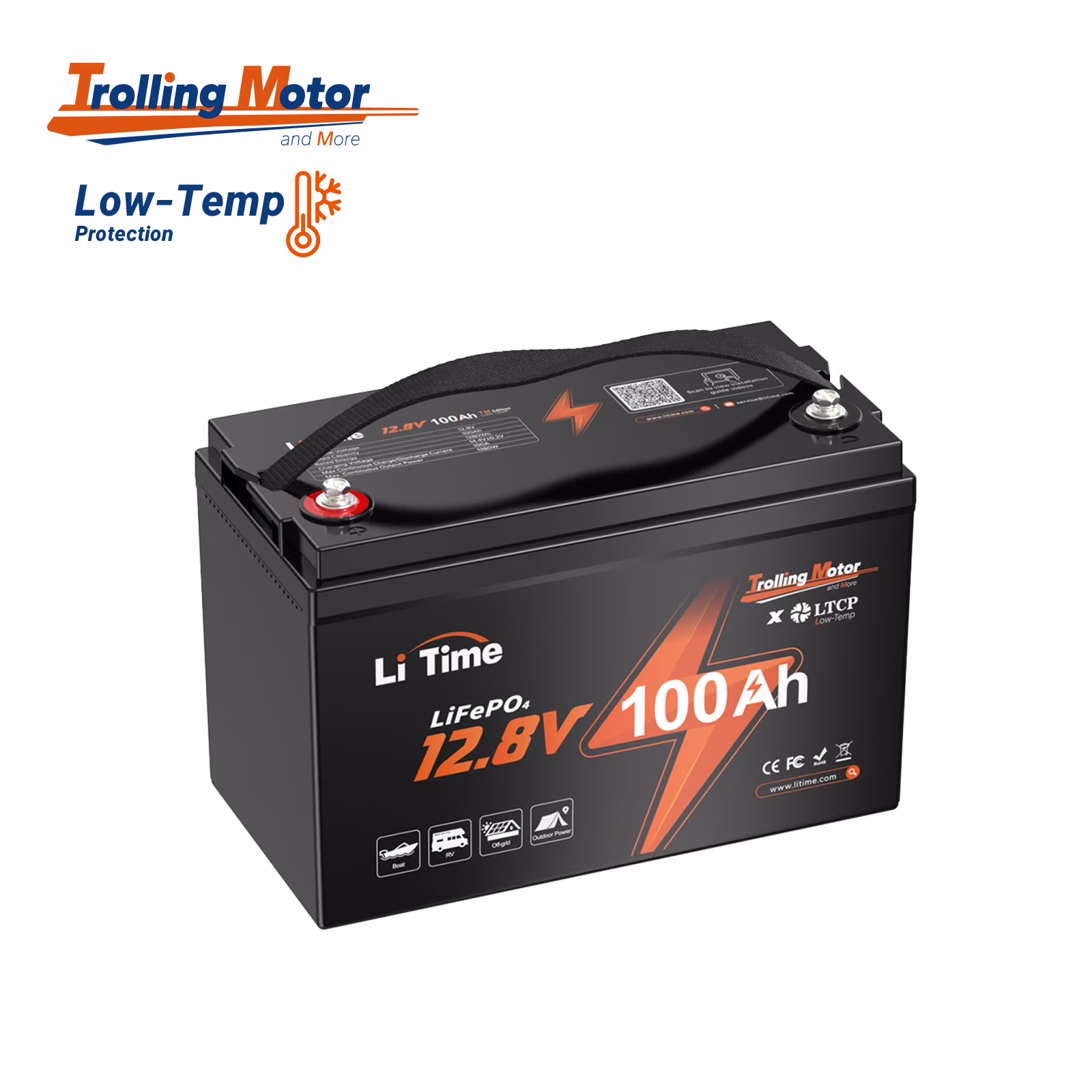

Litime 12V 100ah TM LiFePO4 Lithium Battery Low Temp Protection Deep Cycle Trolling Motors Battery

LiTime's upgraded 12V 100Ah trolling motors battery feature triple protection against dust, water. Coming with auto overload protection & recovery, the trolling motors battery, built-in TVS, ensure your battery and motor remain stable and protected in the rough waters. Each battery passes rigorous testing to ensure safety and performance. Benefit from expert support and a seamless experience with LiTime LiFePO4 batteries, backed by a dedicated team to assist you throughout your solar journey.

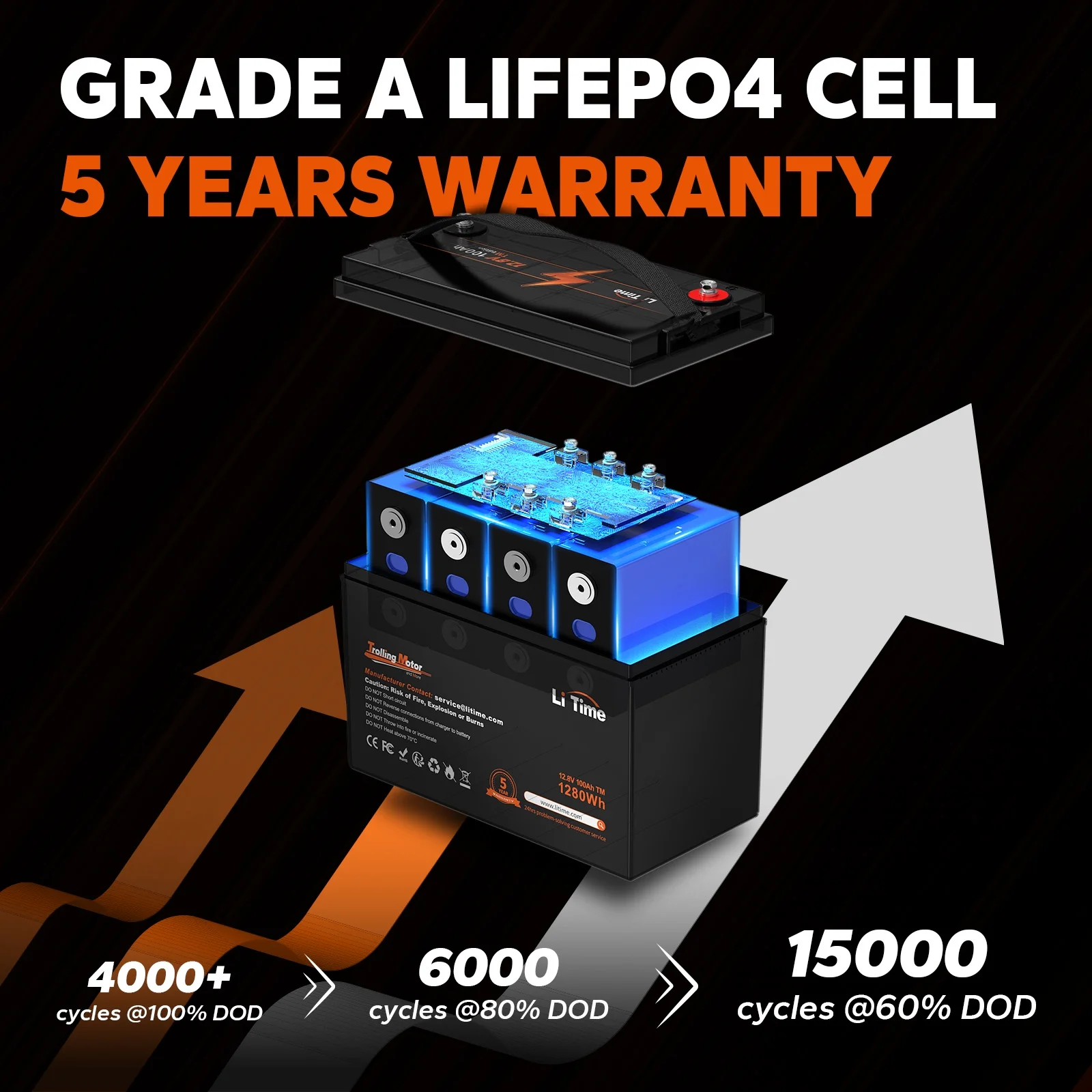

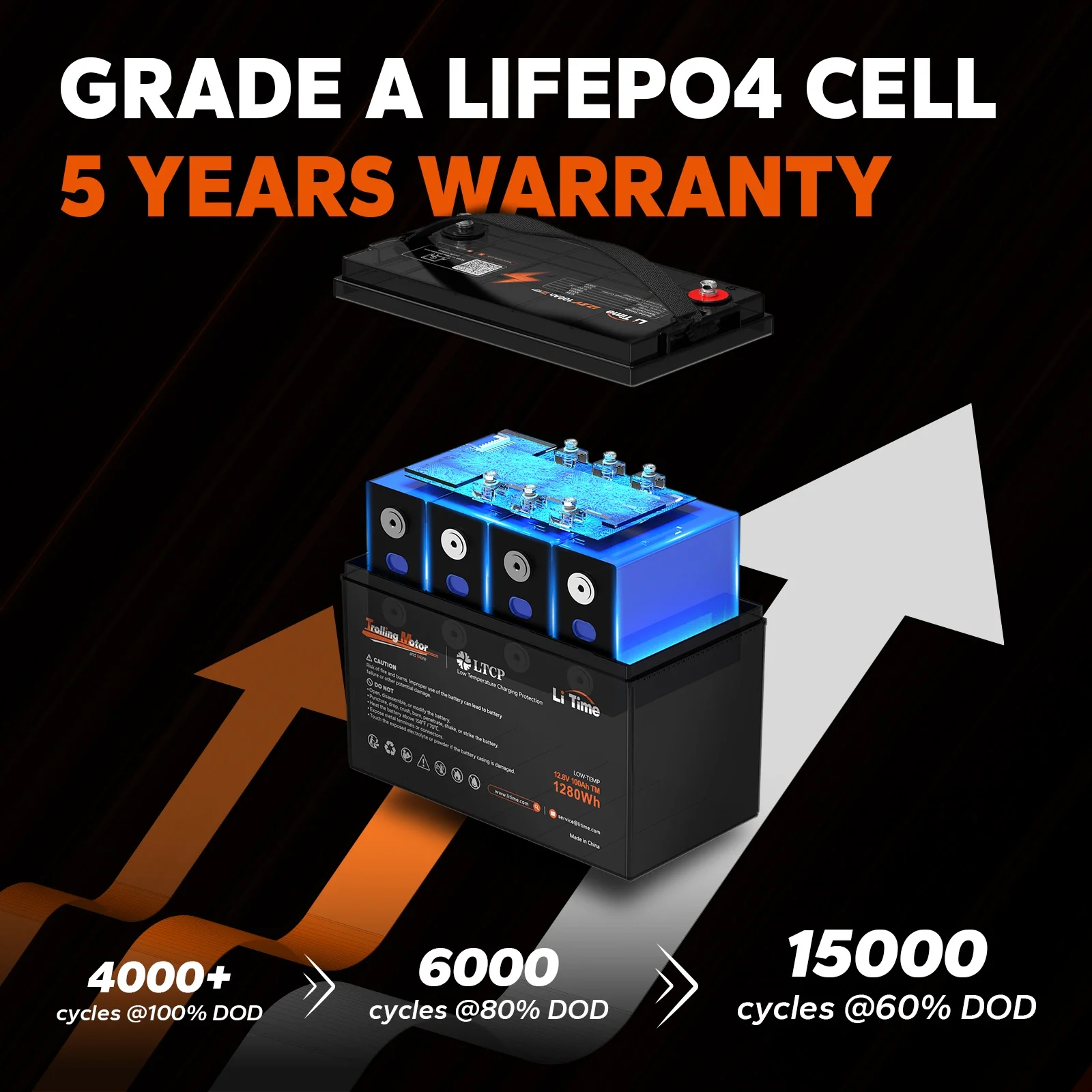

• 【Grade A LiFePO4 Cell & 10 Years Lifetime】LiTime's 12V 100Ah TM lithium battery uses Grade A LiFePO4 cells for exceptional quality, higher energy density, and greater power, certified by UL testing for highest level of safety. The 12V 100Ah TM LiFePO4 battery has an impressive 10-year lifespan, with 4000+ cycles @100% DOD (6000 cycles @80% DOD, 15000 cycles @60% DOD). In contrast, SLA/AGM batteries typically only last for 3 years with 200-500 cycles.

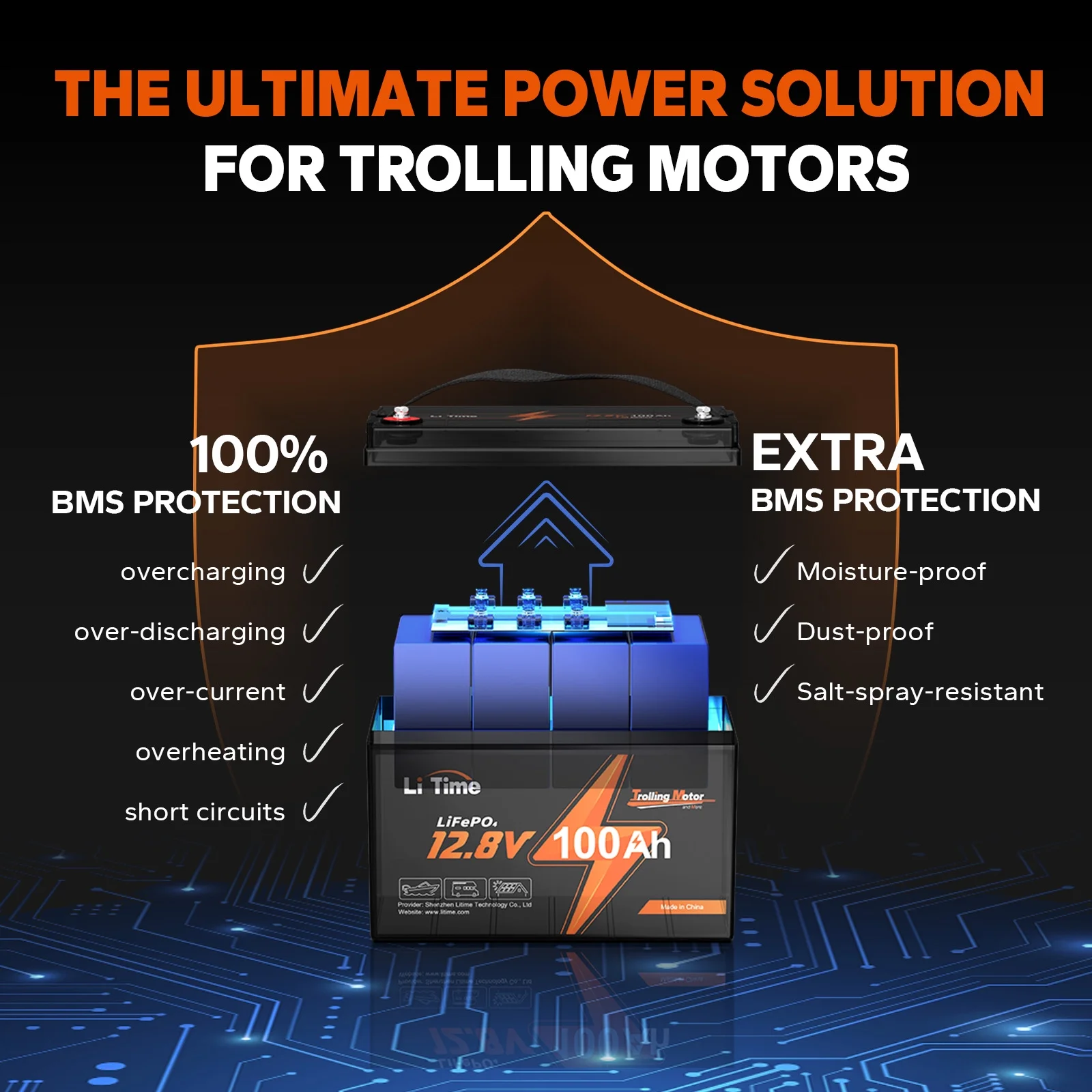

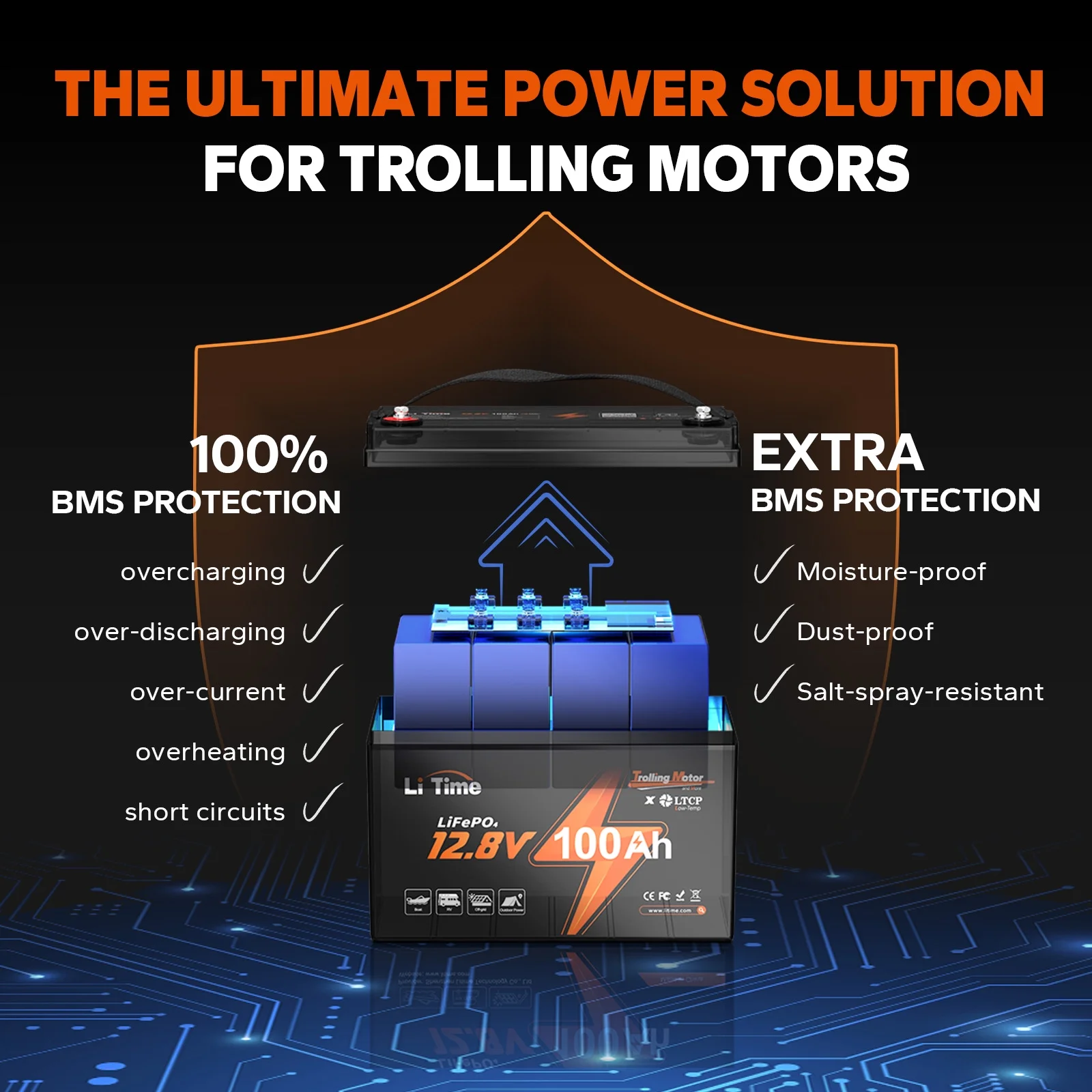

• 【Extra Triple Protection BMS for Trolling Motors】LiTime's 12V 100Ah TM LiFePO4 battery is optimized for trolling motor users with its BMS featuring triple protection against dust, water, and salt spray, as well as 100% full protection against overcharging, over-discharging, over-current, overheating, and short circuits. Designed for harsh environments such as rainy or coastal areas, or dusty and wet conditions, this battery offers worry-free and long-lasting performance with an extended lifespan

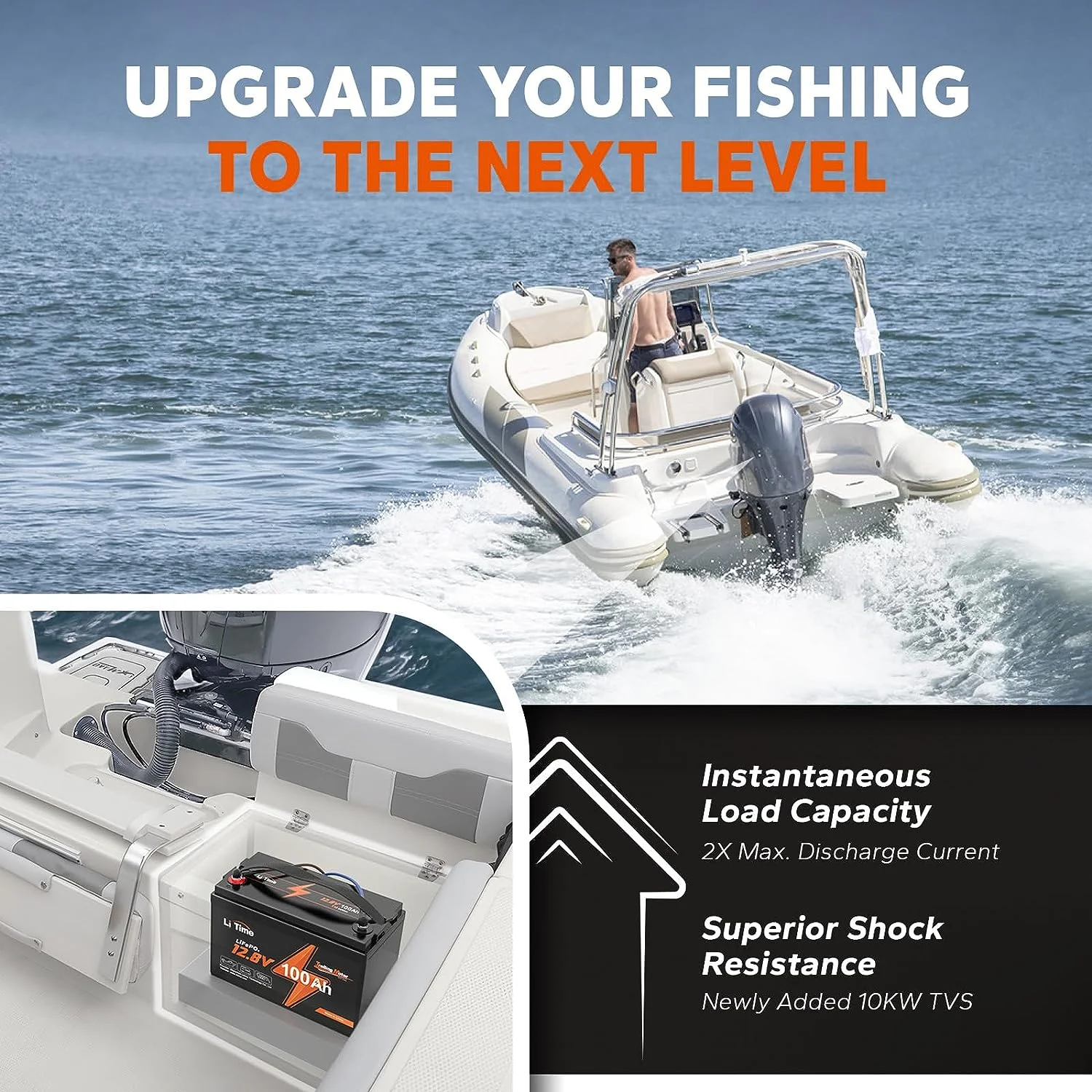

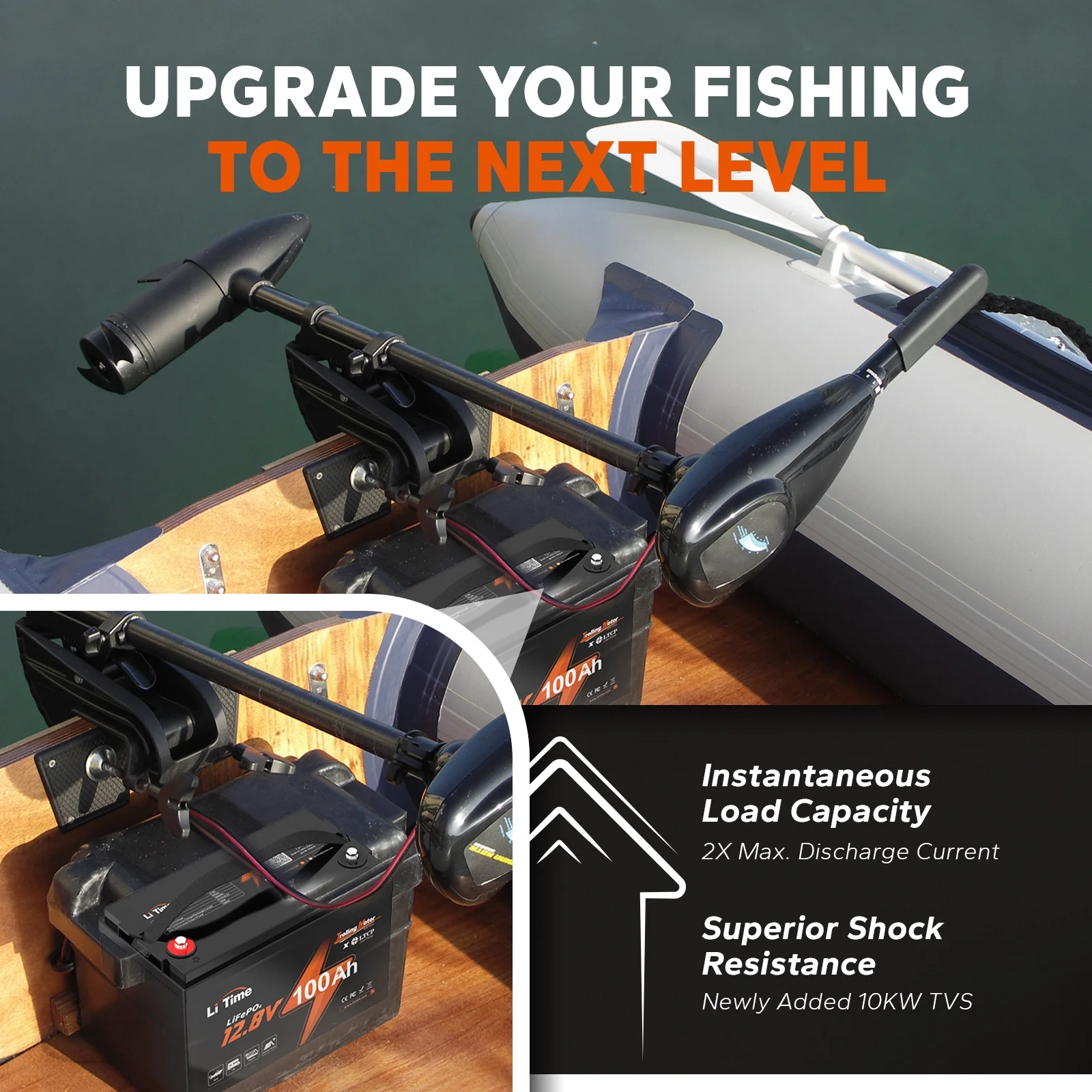

• 【Better Resistance to Big Waves】The advanced built-in TVS provides superior protection against voltage spikes and surges for upgraded shock resistance, ensuring your battery and motor remain stable and protected in the rough waters. Whether you're trolling for big fish or cruising for leisure, the 12V 100Ah TM LiFePO4 battery gives you the confidence to enjoy your time on the water to the fullest.


• 【Auto Overload Protection & Recovery】Say goodbye to manual intervention due to battery shutdown or protection mode. The 12V100Ah TM LiFePO4 battery features automatic overload recognition, protection and recovery, allowing the battery to self-protect and resume normal operation in case of an overload.

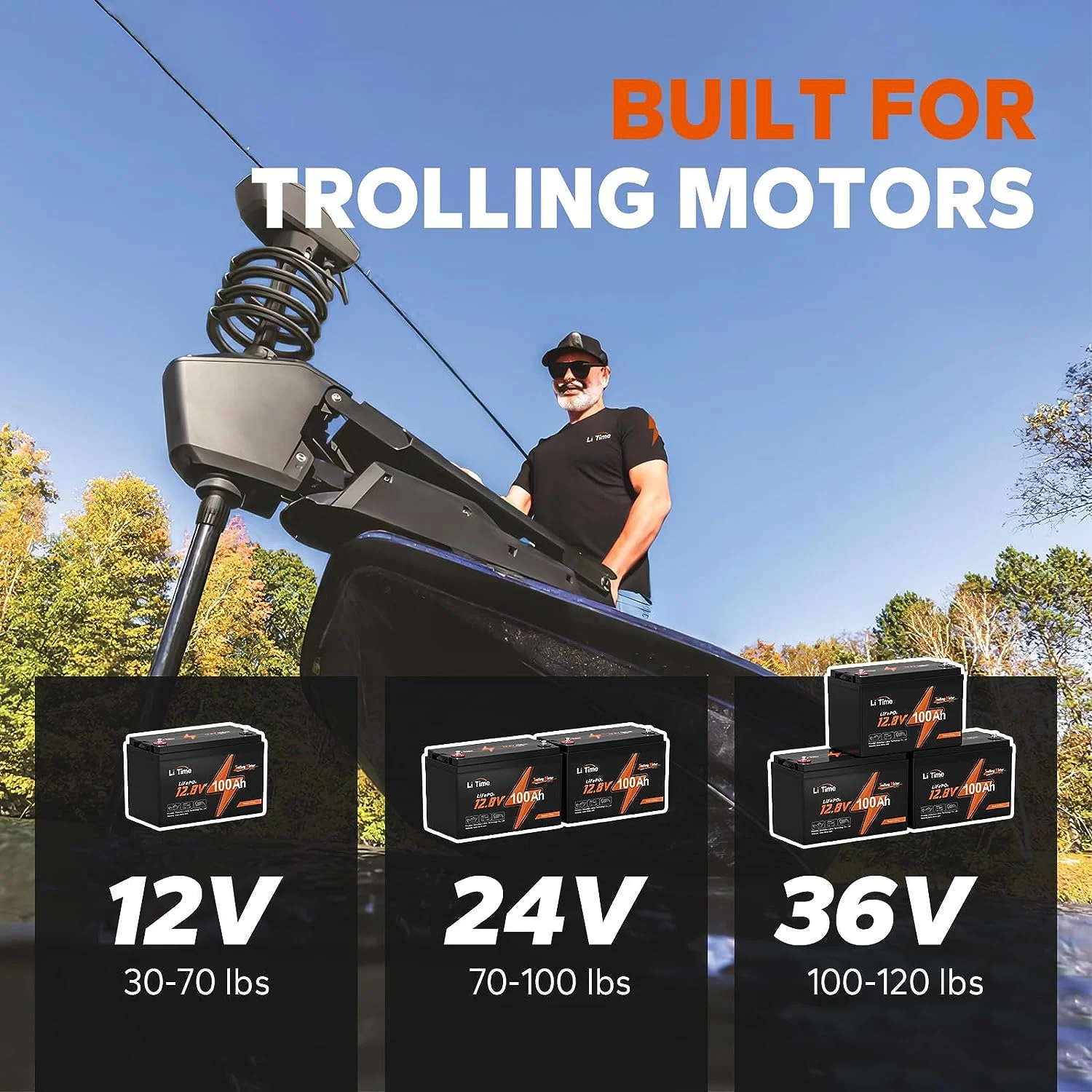

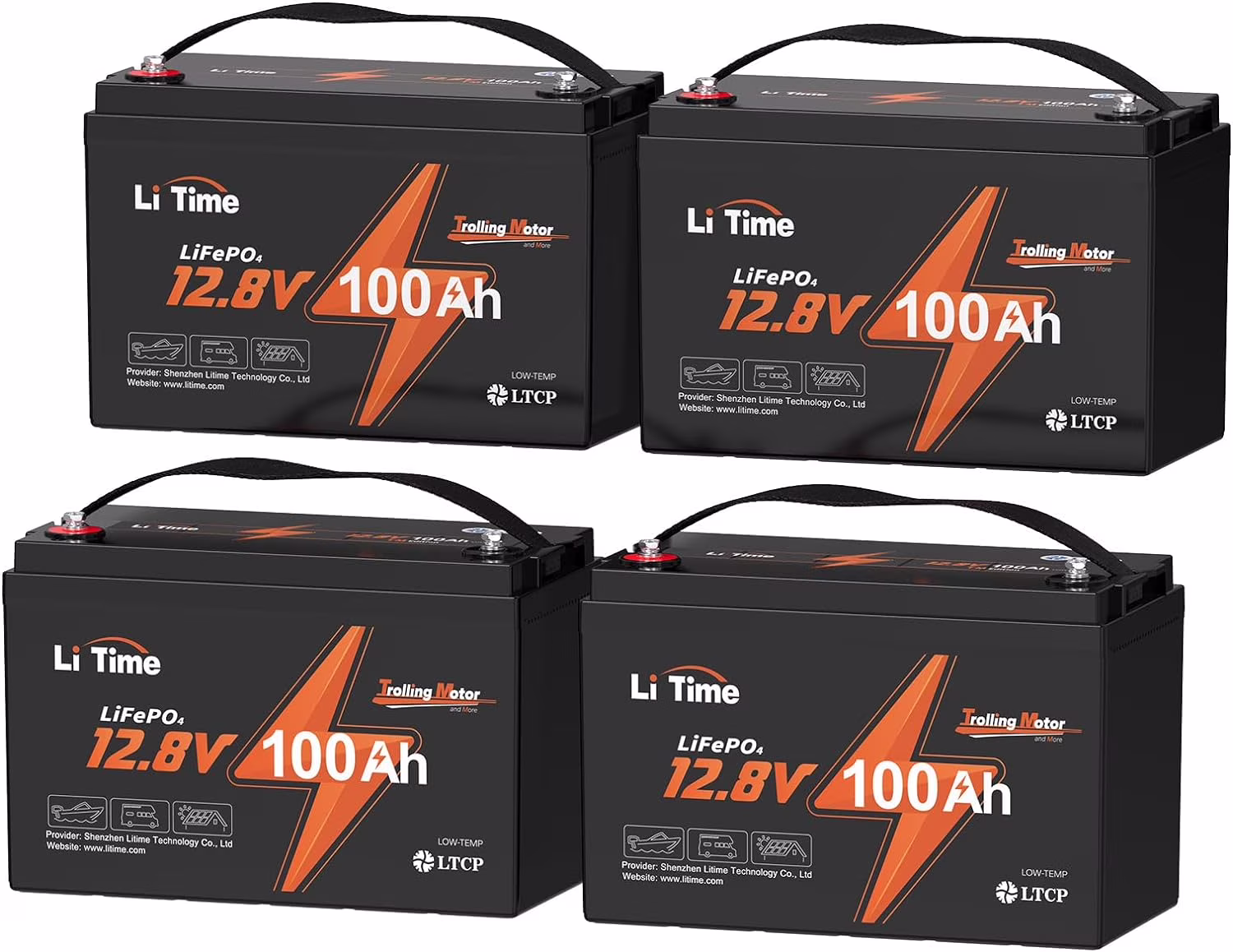

• 【Expandable for Wide Applications】Expandable up to 4 in series and 4 in parallel (Max 4S4P), the 12V 100Ah TM LiFePO4 battery can build a 48V 400Ah system for max. 20.48kWh energy and 20.48kW load power. Perfect for RV, solar, home energy storage, and especially ideal for 30-70 lb thrust trolling motors.


• 【Lightweight & Small Size】At just 22lbs, the 12V 100Ah TM LiFePO4 battery is 1/5 the weight of a 12V 200Ah lead acid battery (about 130lbs), but equivalent in energy, which is easier to carry, faster to charge, and more convenient to use.
• BATTERY
  1. Cell Type：LiFePO4 Prismatic
  2. Warranty�? Years
  3. Cycle Life�?000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
  4. Nominal Voltage�?2.8V
  5. Rated Capacity�?00Ah
  6. Energy�?280Wh
  7. Max. Expansion (Parallel & Series)�?P4S
  8. Internal Resistance：≤40mΩ
  9. Certifications：UL, FCC, CE, RoHS, UN38.3
  10. ABYC Official Certi.：Yes
• BMS
  1. BMS�?00A
  2. Max. Continuous Output Power�?280W
  3. Max. Continuous Charge Current�?00A
  4. Max. Continuous Discharge Current�?00A
  5. Max. Discharge Current 5 Seconds�?00A
  6. Max. Discharge Current 1 Second�?00A
• CHARGE
  1. Charge Method：CC/CV
  2. Charge Voltage�?4.4V ± 0.2V
  3. Recommend Charge Current�?0A (0.2C)
• TEMPERATURE
  1. Charge Temperature�?�?to 50�?/ 32�?to 122�?/font>
  2. Discharge Temperature�?20�?to 60�?/ -4�?to 140�?/font>
  3. Storage Temperature�?10�?to 50�?/ 14�?to 122�?/font>

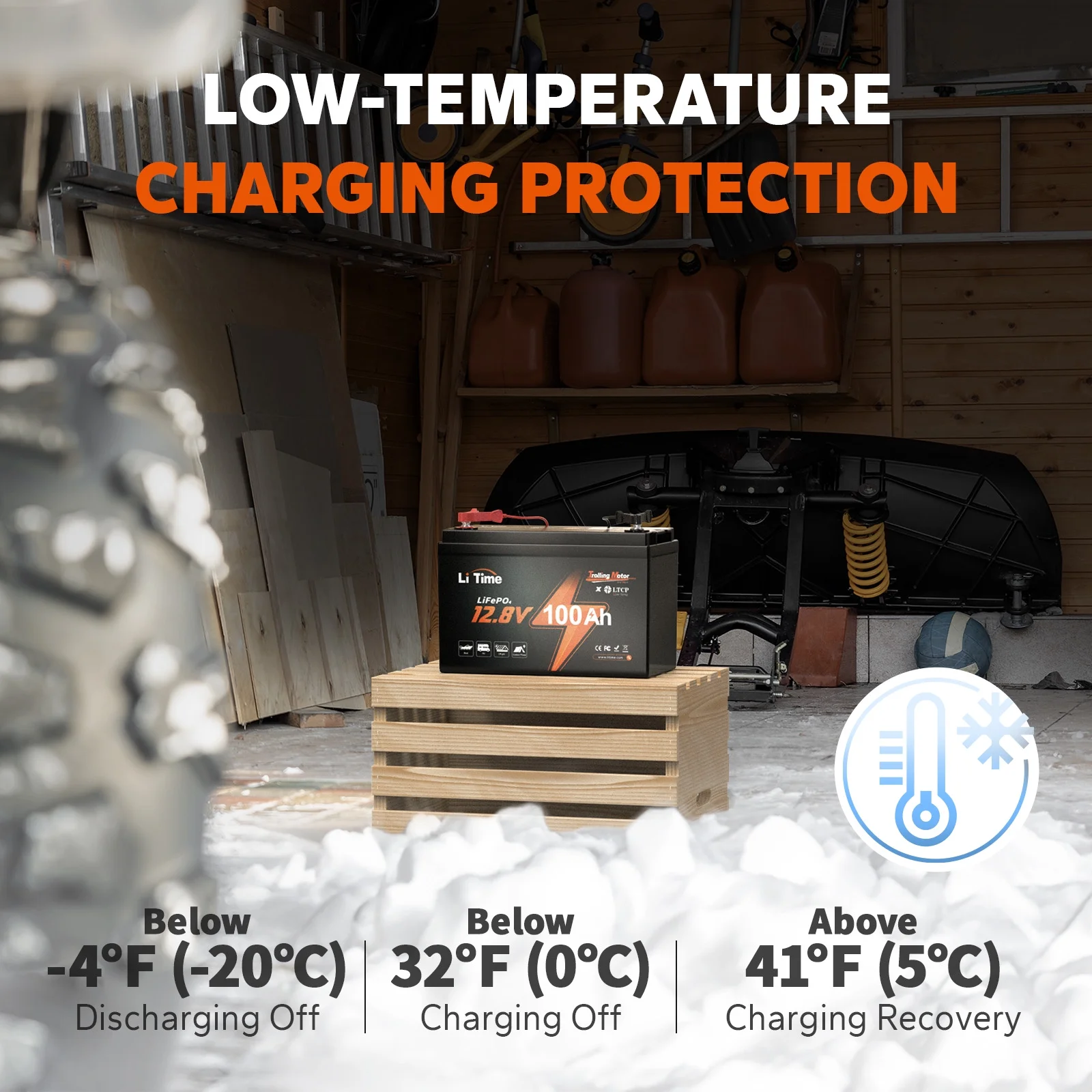

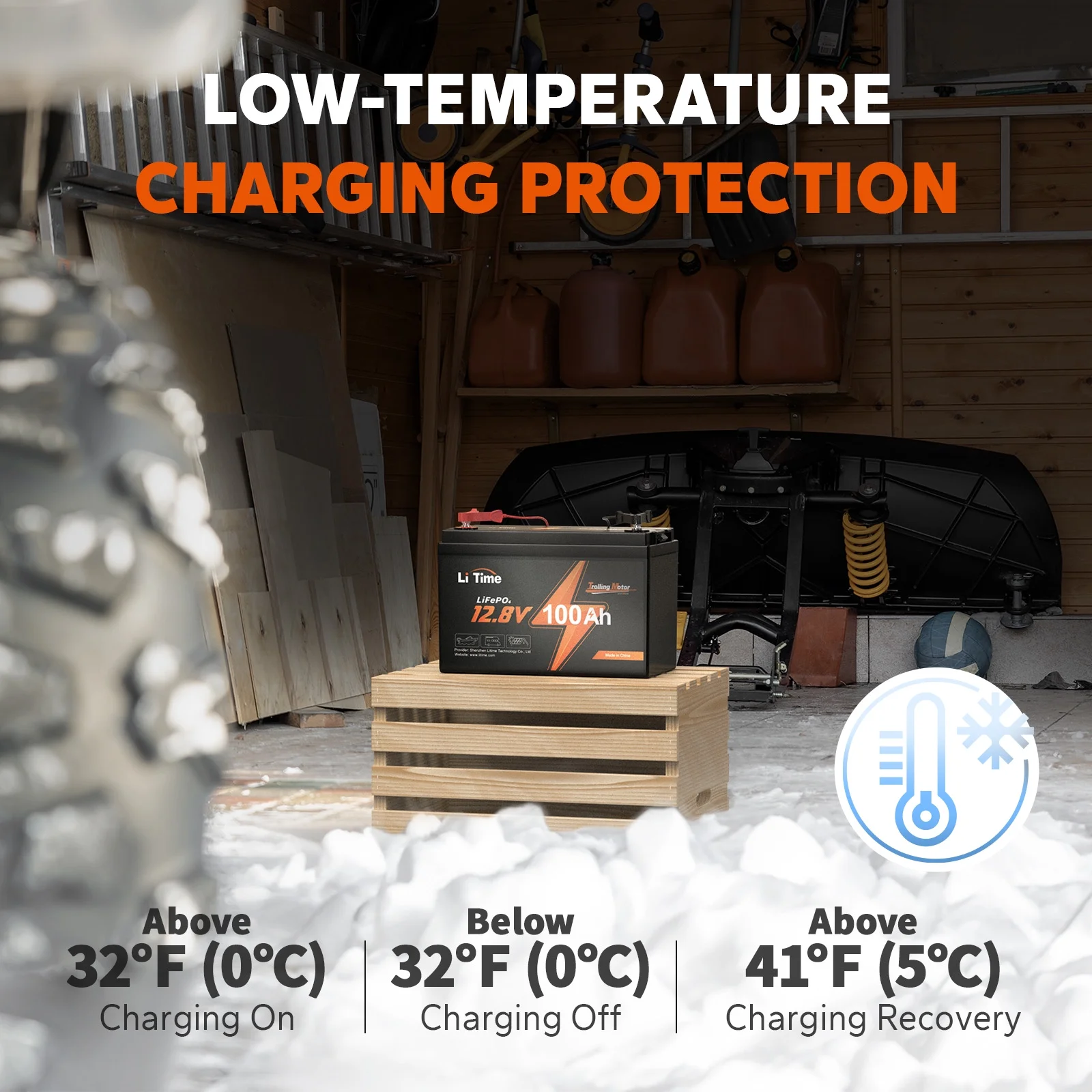

  4. Low-Temperature Protection：Yes (32�?0�?
  5. Low-Temperature Charging Protection Auto Recovery：Yes (41�?5�?
• OTHERS

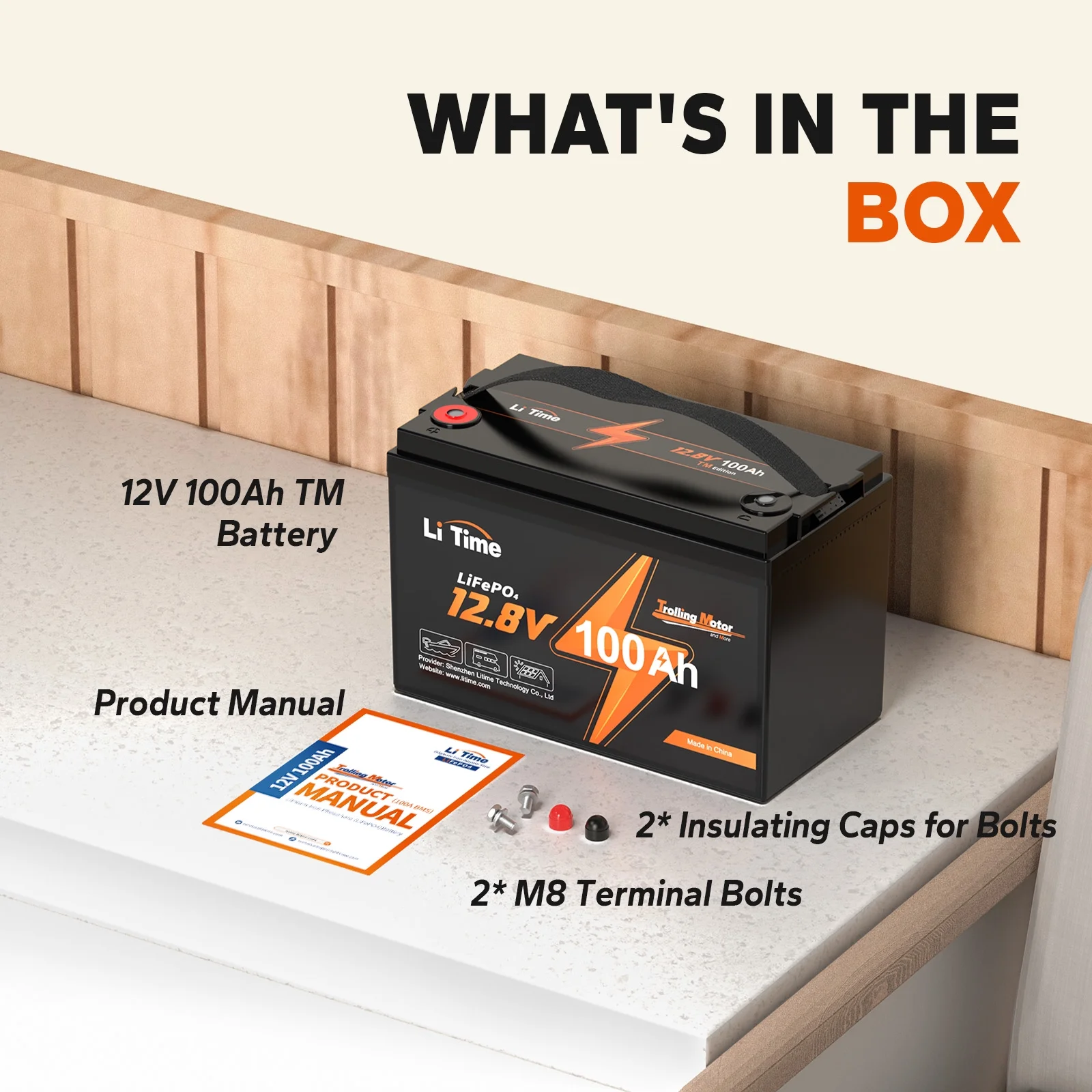

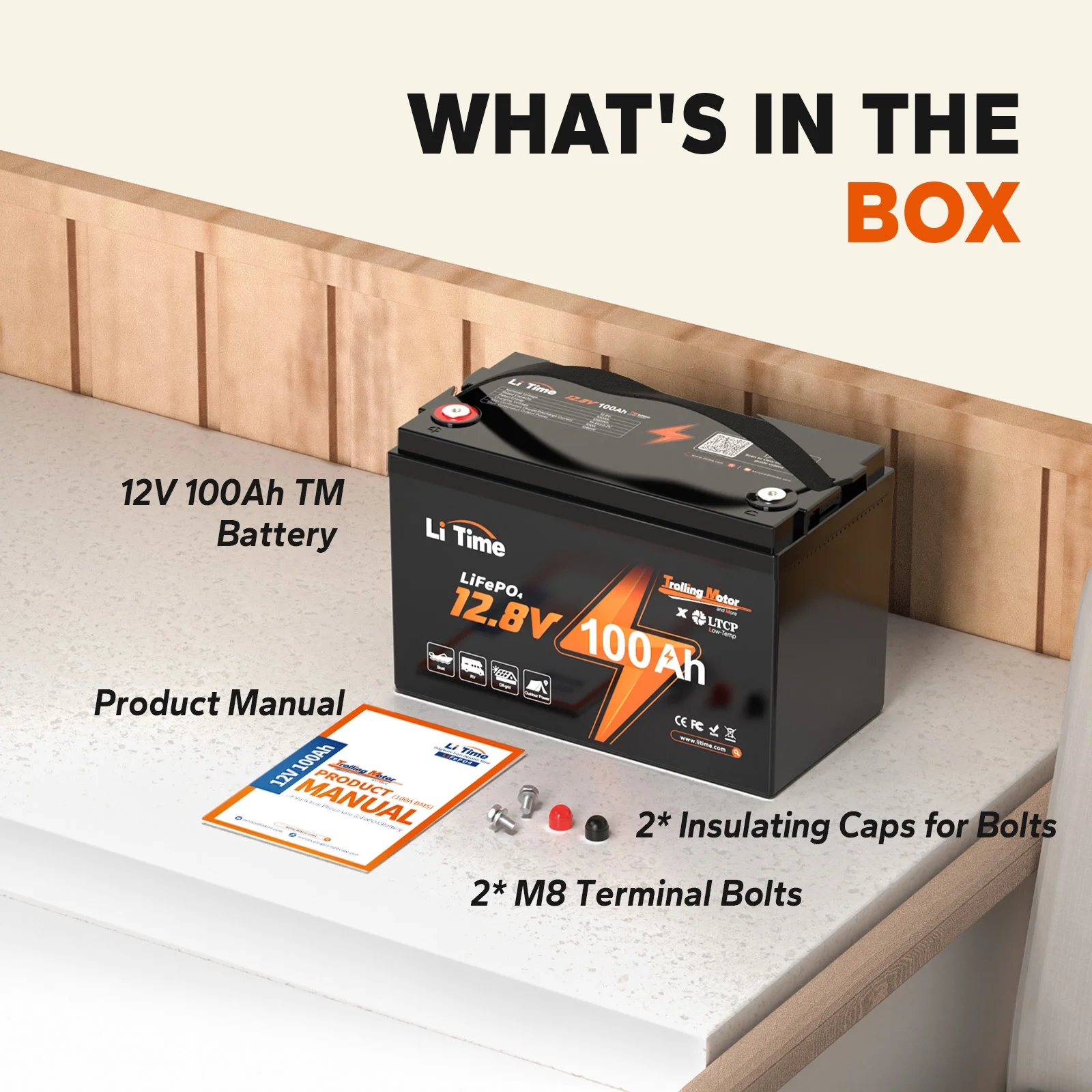

  1. Terminals：M8 bolts
  2. Weight Approx.�?3.4 lbs
  3. Size：L13*W6.77*H8.43 inch (group 31 size)
  4. Housing Material：ABS (Flame Retardant Plastic)
  5. Protection Class：IP65
• TIPS
  1. Please note that 12V 100Ah TM battery is suitable for energy storage rather than start-up and 12V 100Ah TM battery for 30~70lbs thrust trolling motor.
  2. Please use 14.6V lithium charger to charge the batteries, other types of chargers may cause damage to the batteries due to different charging stages and modes. If you have related problems, please feel free to contact us.
