32in Rear Axle Kit with 5" Wheels, 11x7.10 - 5 Tires, 428 41T Sprocket & Brake Caliper Master Cylinder, 3 Stud Hubs, Go Cart Seat for Racing Go Kart, ATV Quad Buggy & Drift Trike, Karting

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share

          🎁Some products are for clearance!

          🔥Limited stock at this price!

          ⏰The time for the clearance activity is limited!

          🎁Some products are for clearance!

          🔥Limited stock at this price!

          ⏰The time for the clearance activity is limited!

          Description

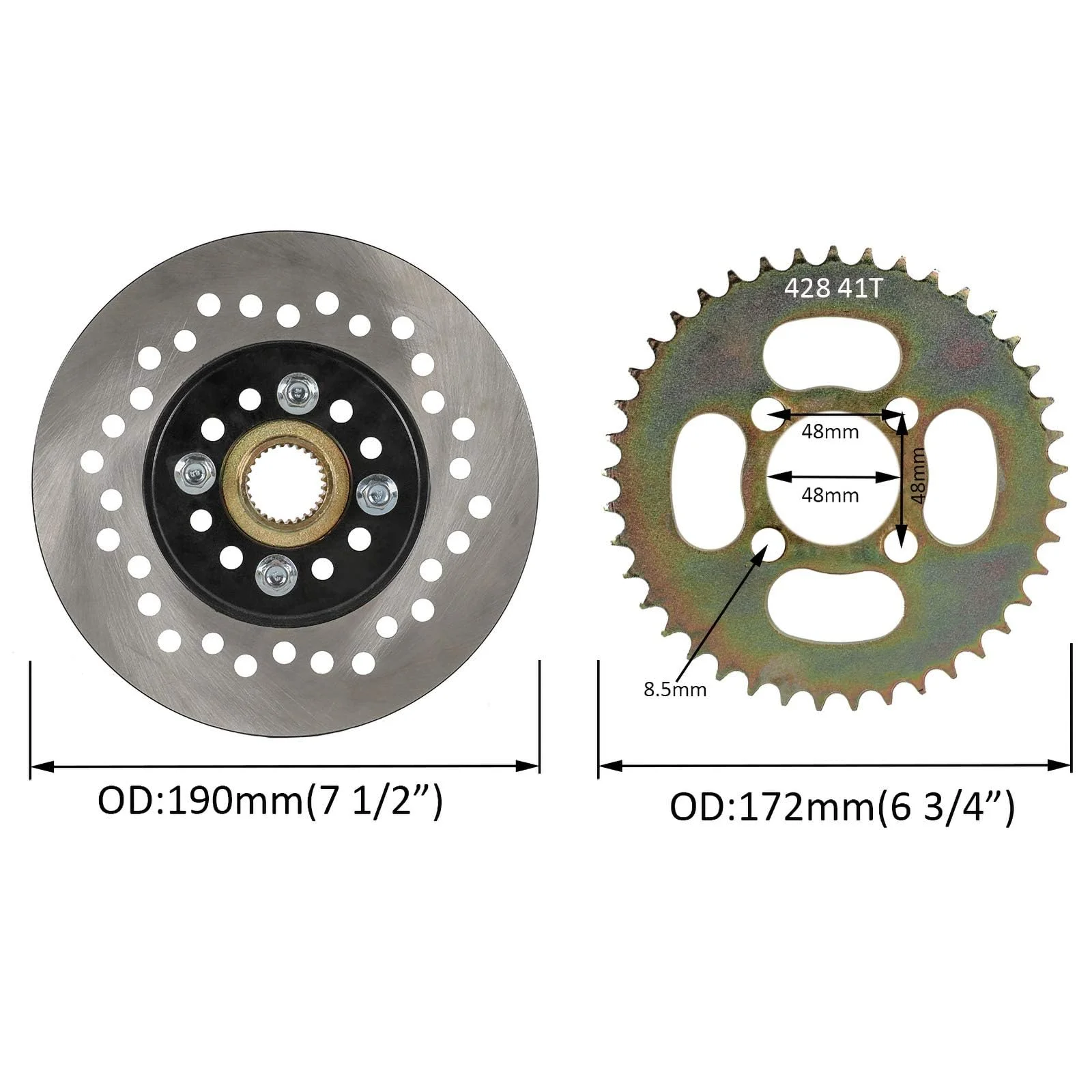

          Product Description Product Features and Specifications: Axle Dimensions: The axle has an overall length of 32 inches (810mm), with a diameter of 1 inch. The thickest part of the axle measures 1 3/16 inches (30mm), ensuring durability and strength. Sprocket Compatibility: It comes with a 428 41-tooth sprocket. We also offer a 420 sprocket variant upon request. Design: The axle features a splined design, rather than a key way, allowing for versatile use with various engine types and electric motors. Material: Crafted from high-strength chrome, the axle is bend-proof and capable of supporting over 500lbs, making it suitable for heavy-duty applications. Wheel and Tire Specifications: The kit includes two 5-inch, 3-stud tubeless wheels. The tires are sized at 11x7.10-5, ideal for racing go karts and similar vehicles. Interchangeable Setup: The positions of the sprocket and brake disc can be easily swapped, providing flexibility in assembly and use. Application: Perfect for vertical or horizontal engines of any displacement, as well as electric motors. Key Features: Durable and strong for heavy-duty use Versatile for various DIY vehicle projects High-quality chrome material for longevity Easy interchangeability of sprocket and brake disc positions Suitable for a wide range of engine types and electric motors Compatibility: Designed to fit a broad range of DIY vehicles including go karts, ATVs, quads, trikes, and golf carts. Compatible with 5-inch racing go kart wheels. Package Includes: 1 x 32-inch Live Rear Axle 2 x 5-inch Tubeless Wheels 1 x 428 41T Chain Sprocket (420 option available) 1 x Brake Master Cylinder 1 x Brake Disc 2 x 1-inch Pillow Block Bearings 3-Bolt Pattern Wheel Hubs 1x Go kart seat

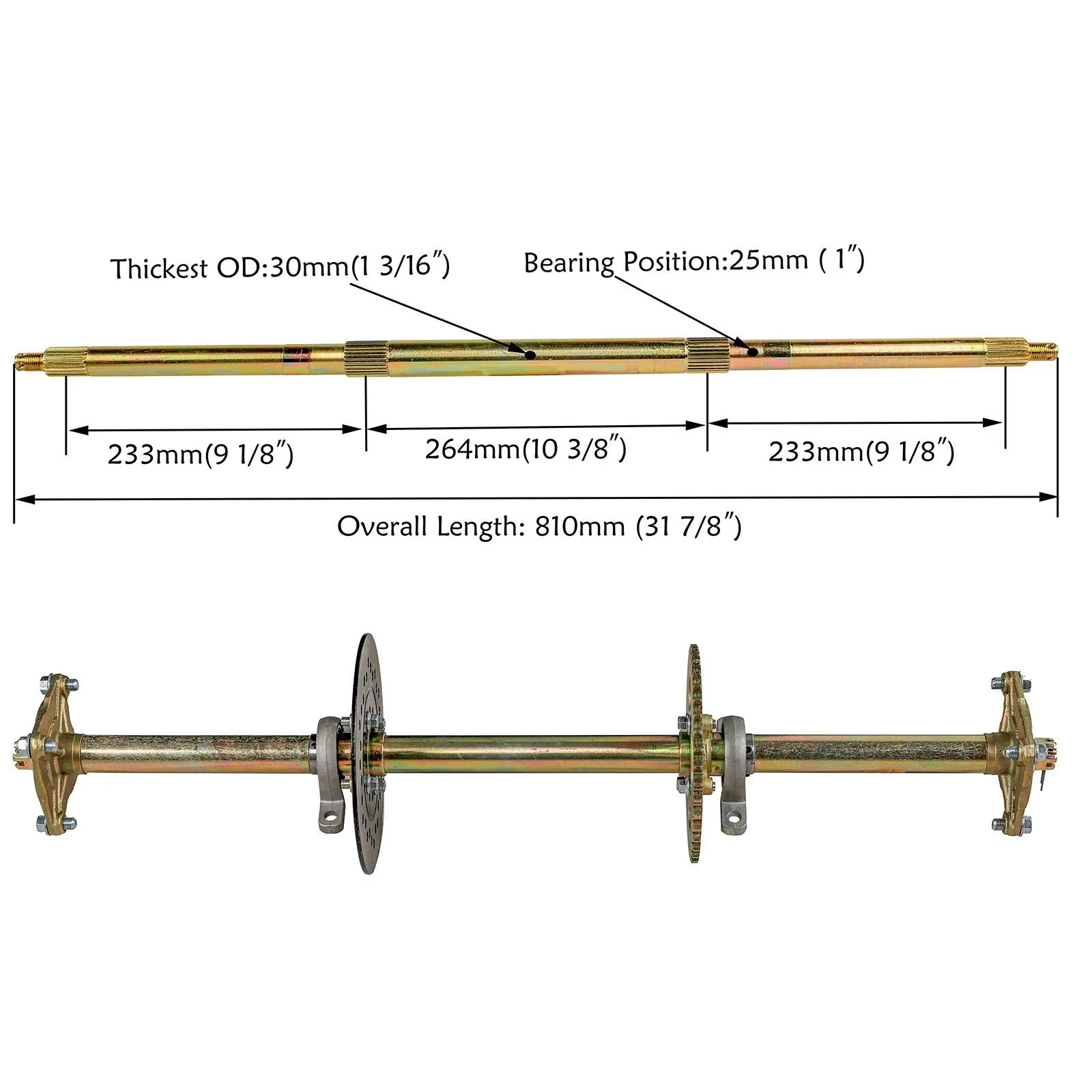

            • Axle overall length 32 inch (810mm), 1" in diameter and the thickest part of the axle is 1 3/16" (30mm)


            • This is a versatile and solid keyed live rear axle for DIY rebuild go kart, ATV, Quad, Trikes, Golf Carts
            • Made by high strength chrome, can support more than 500lbs

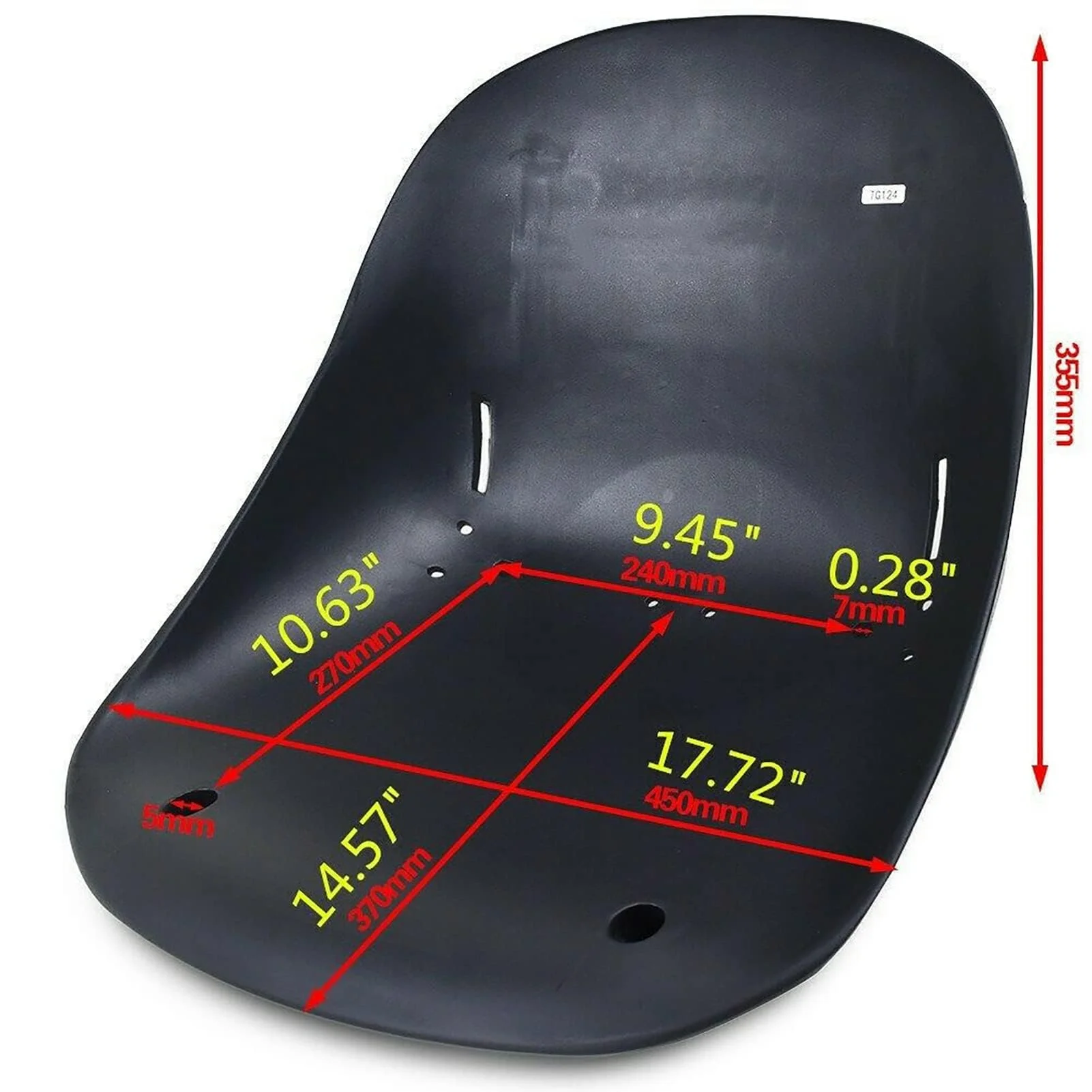

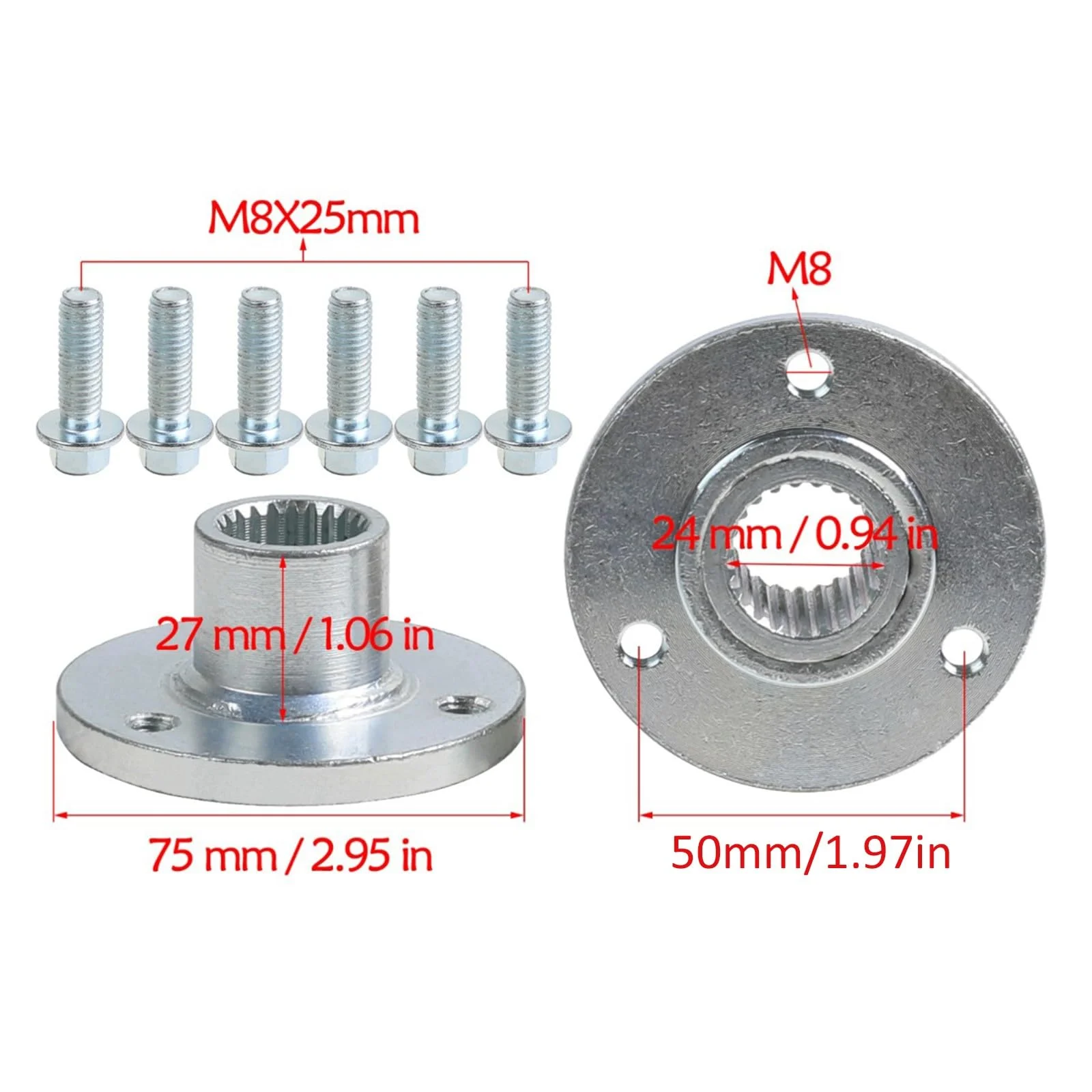

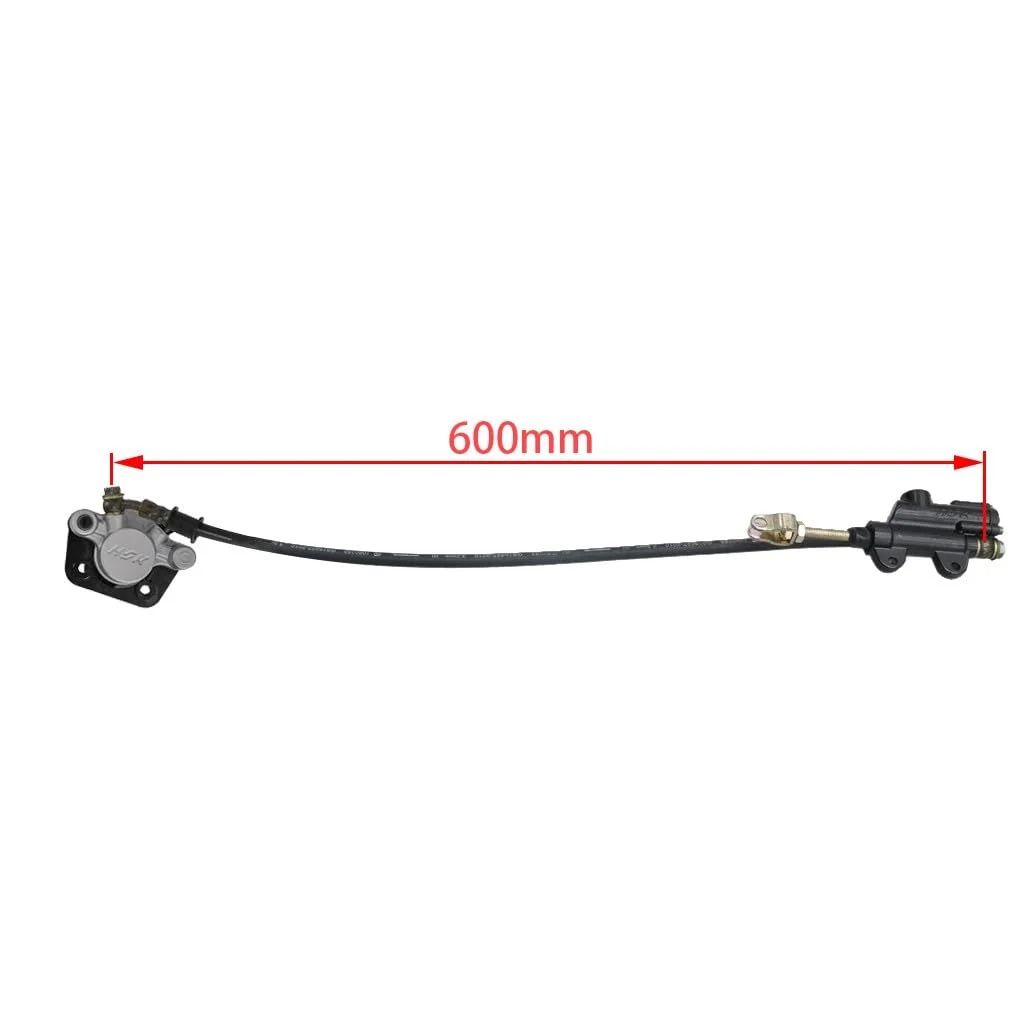

            • Axle Kit come with: Axle + (2) 5" Tubeless wheels + 428 Chain+ Sprocket + Brake Master Cylinder + Brake Disc + 1" Pillow block bearings + 3 Stud wheel hub+ go kart seat

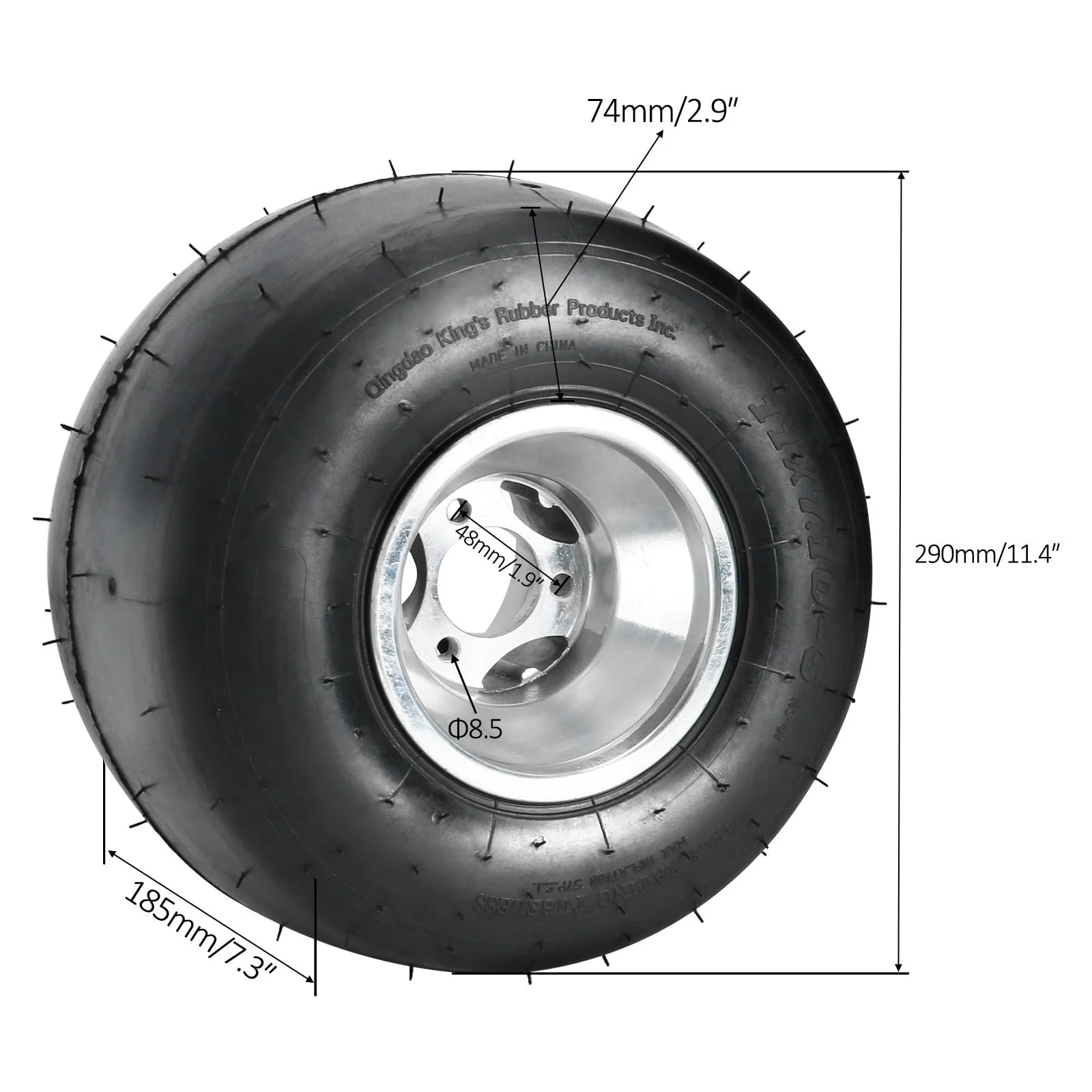

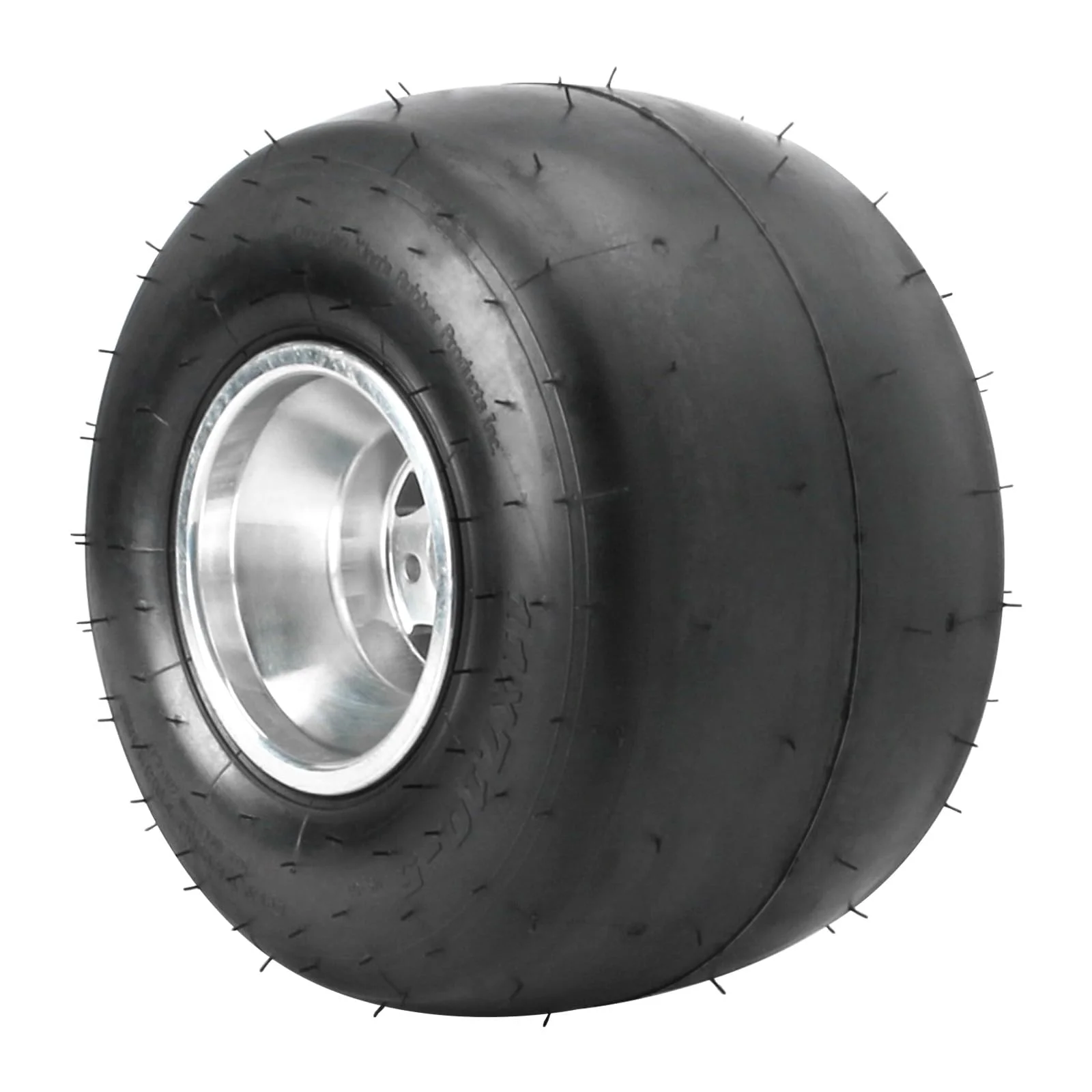

            • Versatile Tire and Wheel Size: Features 11x7.10-5 size tires on 5" tubeless wheels, suitable for varied terrains and racing conditions.
          • Easy Installation: Designed for straightforward assembly, perfect for DIY enthusiasts looking to upgrade or build their go-karts or ATVs.
