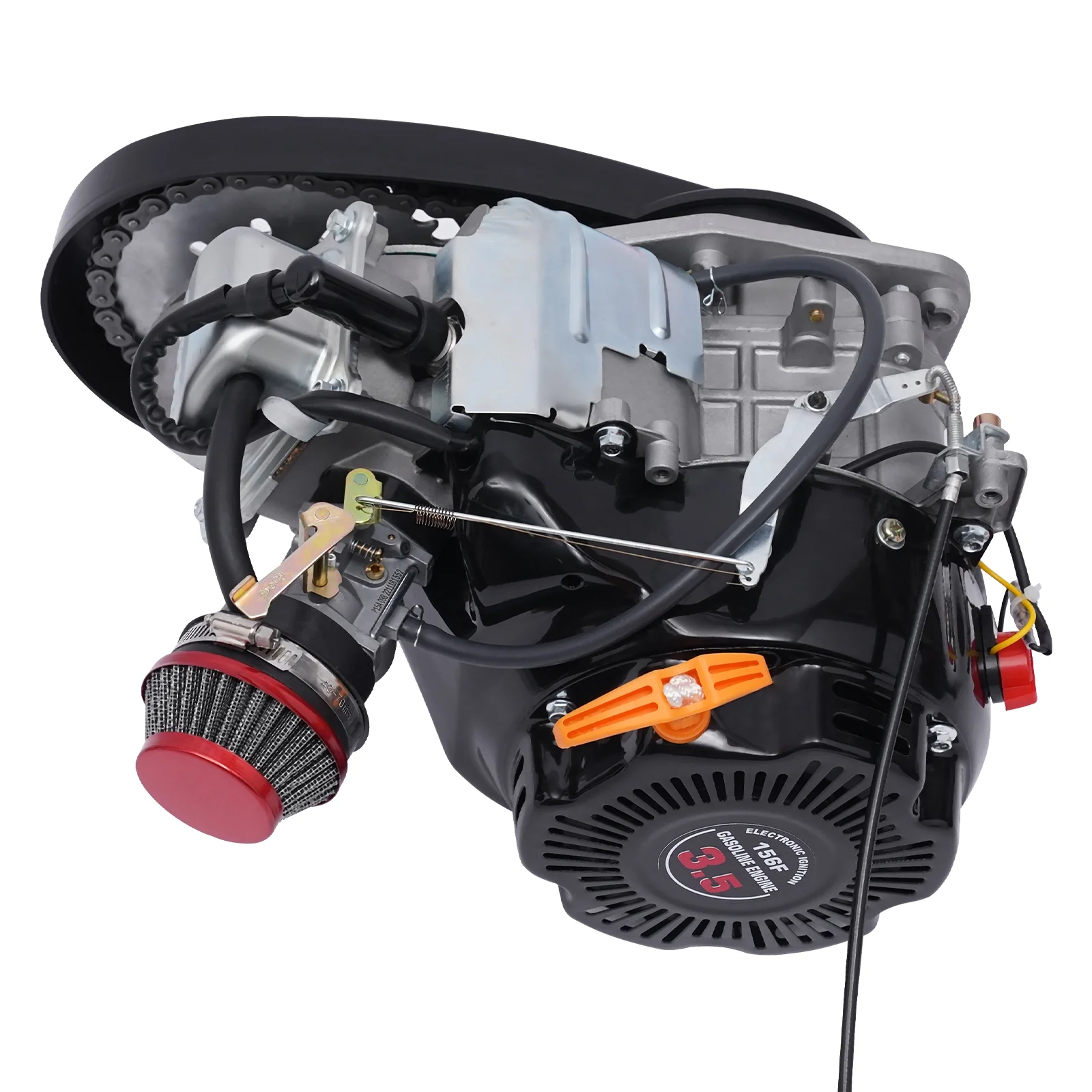

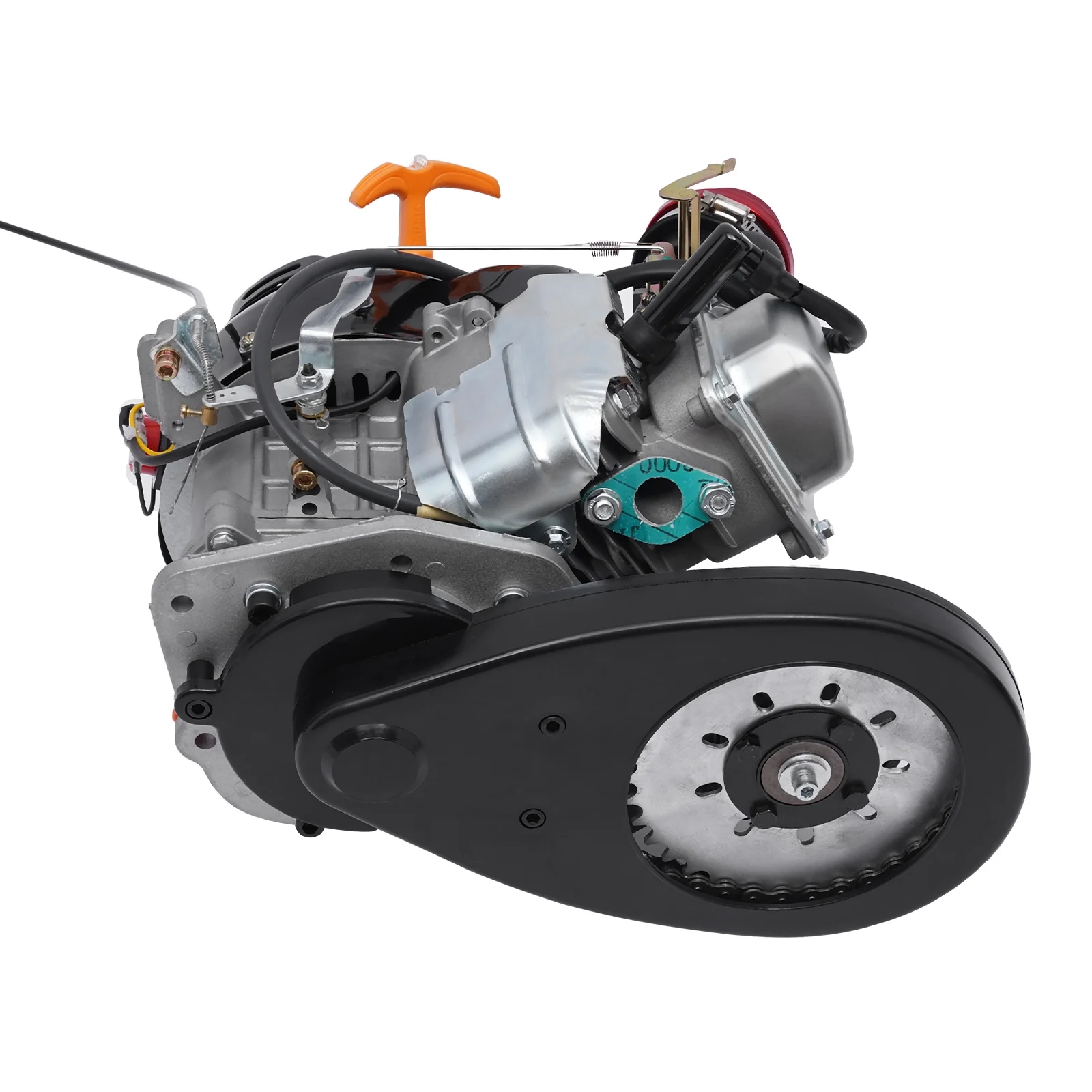

Miumaeov 100cc 4 Stroke Bicycle Modified Engine Kit Set Single Cylinder with Chain 3HP 3600rpm

Highlights

Brand New, With High Quality

Trouble-free Installation

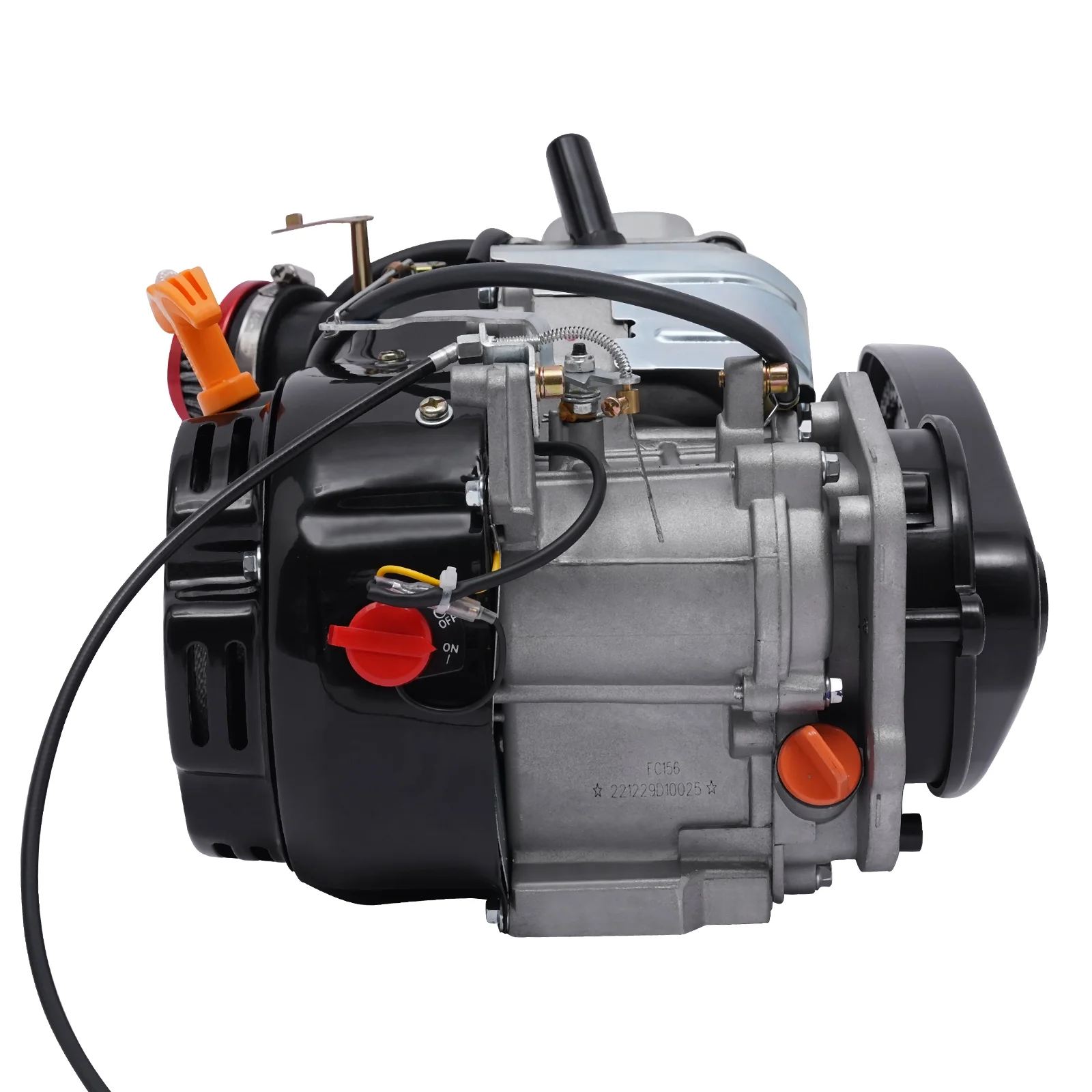

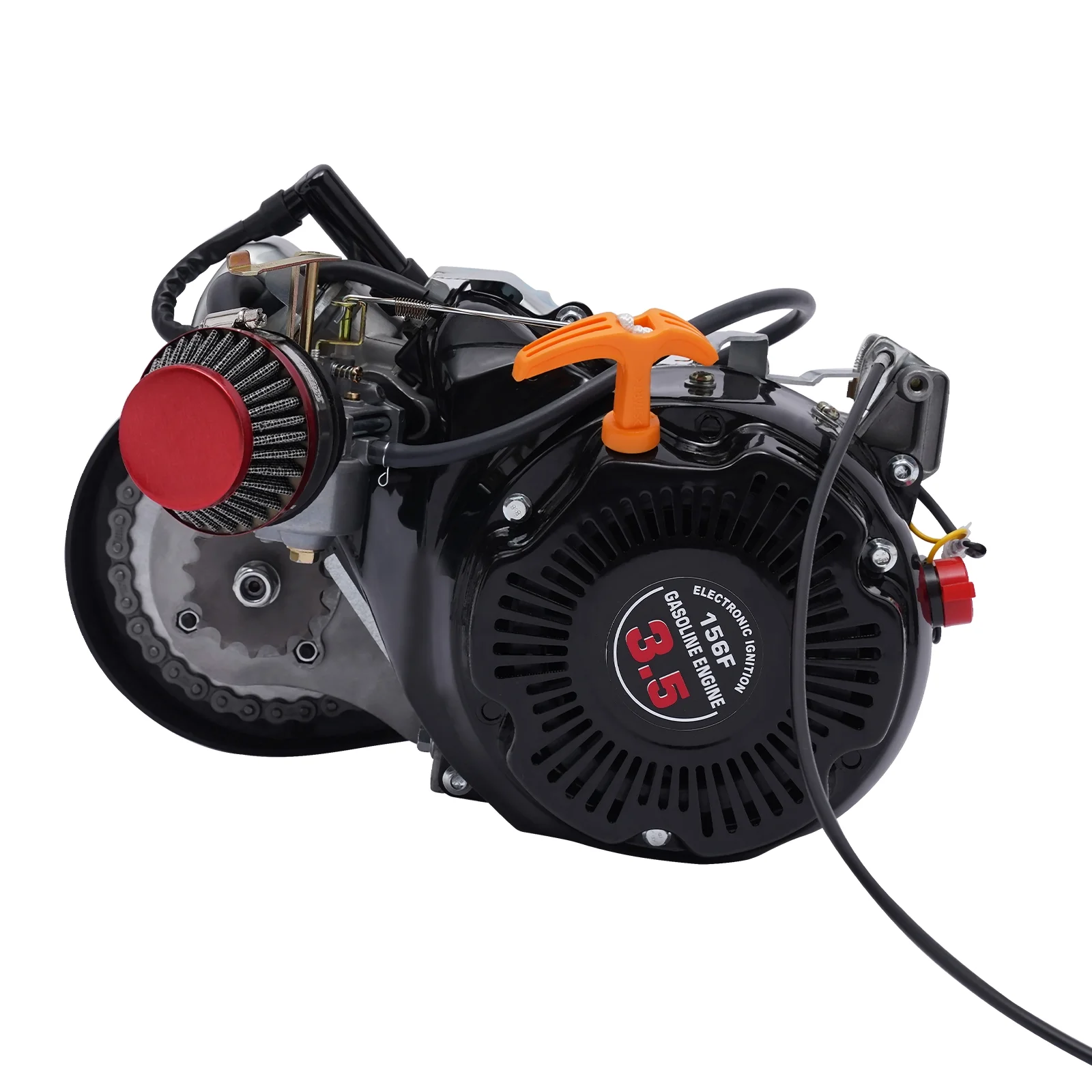

100cc 4-Stroke Gasoline Engine

Complete Kit

Large Capacity Fuel Tank

Low Fuel Consumption

Safe and Stable

Wide Application

Fast Speed

Good Heat Dissipation Performance

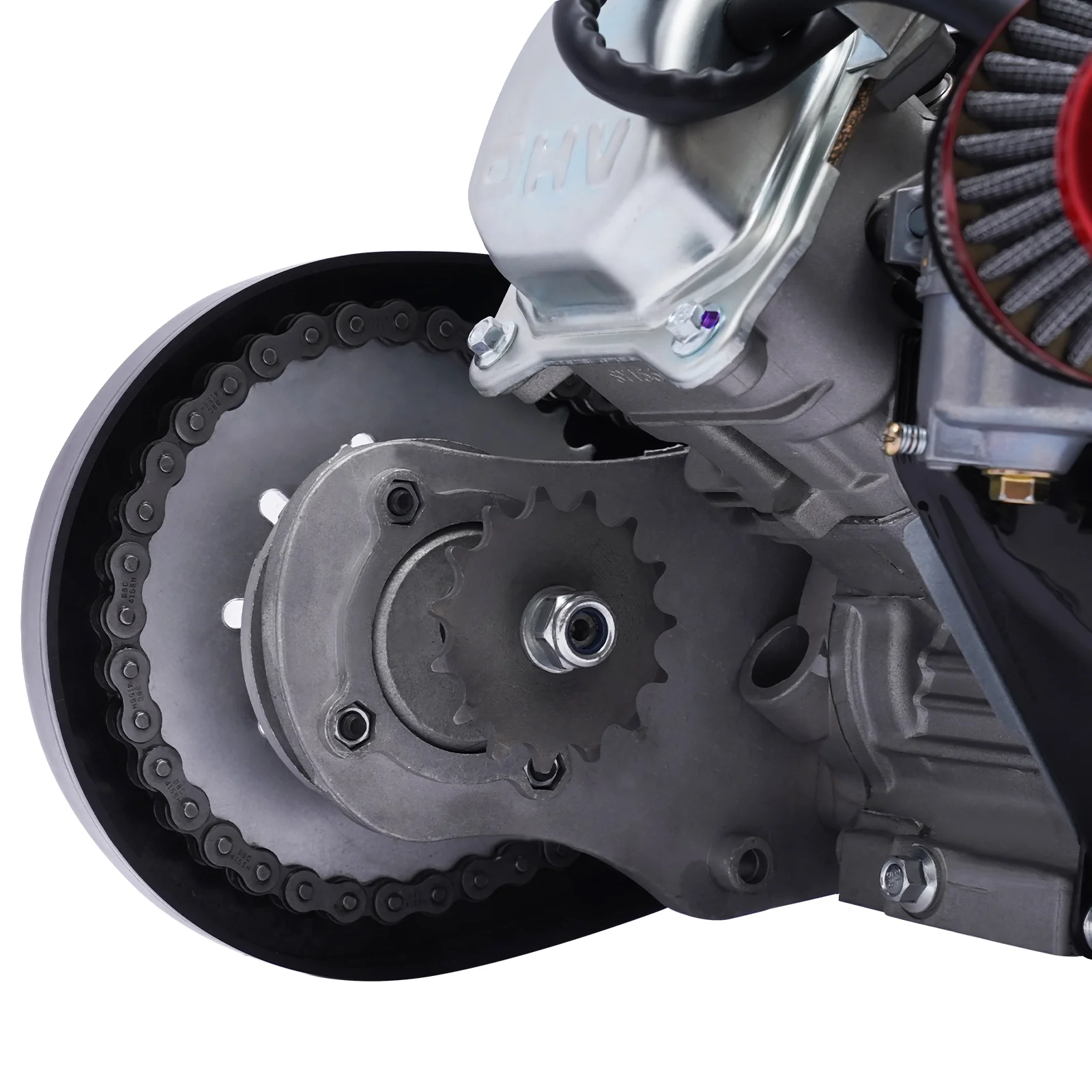

Strong Chain

Specifications

Model: EZ-156F

Type: Forced Air Cooling, 4-Stroke, OHV, Single-cylinder, Inclined by 25 Degrees

Starting System: Recoil Start

Material: Aluminum, Iron, and Plastic

Color: Black, Silver

Max Output: 3HP

Rated Power: 2KW/3600rpm

Max. Torque: 4.5N.m/2500rpm

Fuel Tank Capacity: 1.6L/0.42gal

Fuel Consumption: <420 g/KW.h

Oil Capacity: 0.4L/0.1gal

Oil Consumption: <6.8 g/KW.h

Min. Stable Speed Unloaded: 3600rpm

Reduction Ratio: 1:1

Bore x Stroke: 56x40 mm

Displacement: 100cc

Compression Ratio: 7:1

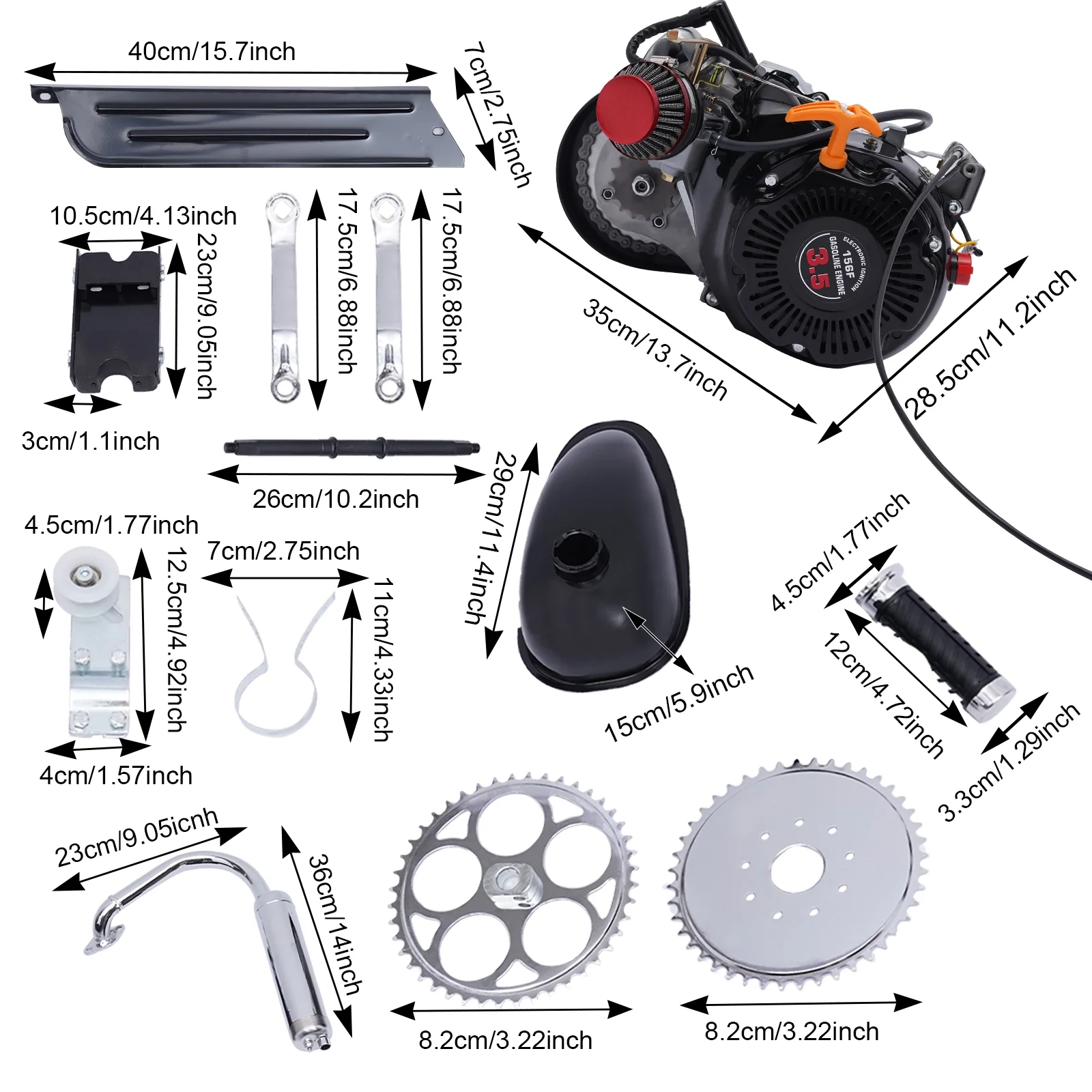

Product Size: 28.5*35*28cm/11.2*13.7*11in

Packing Size: 73*34*25cm/28.74*13.38*9.84in

Gross Weight: 21kg/46.29lbs

Net Weight: 20kg/44lbs

Fits (As a Reference)

For Beach Bikes with Large Triangular Frame Space

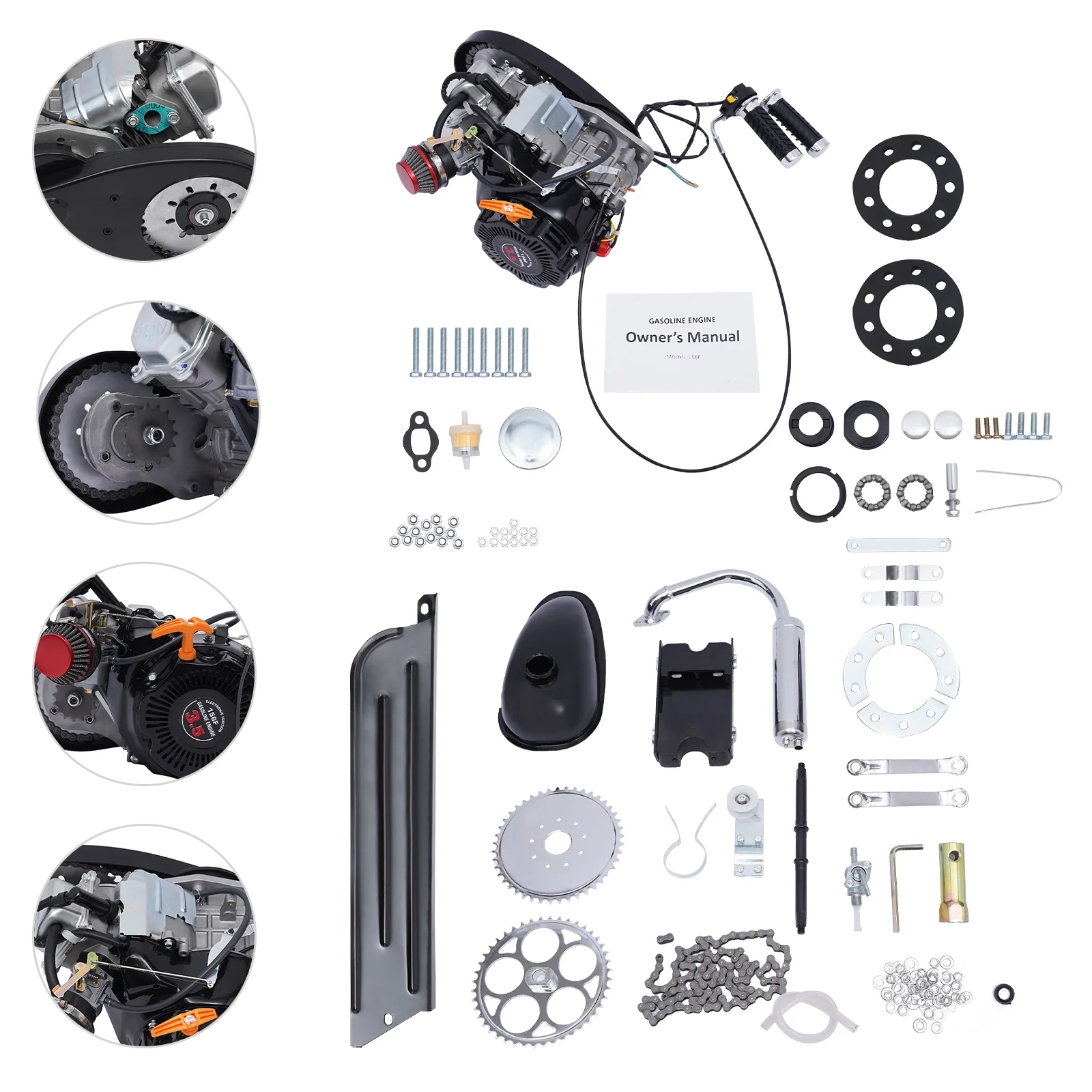

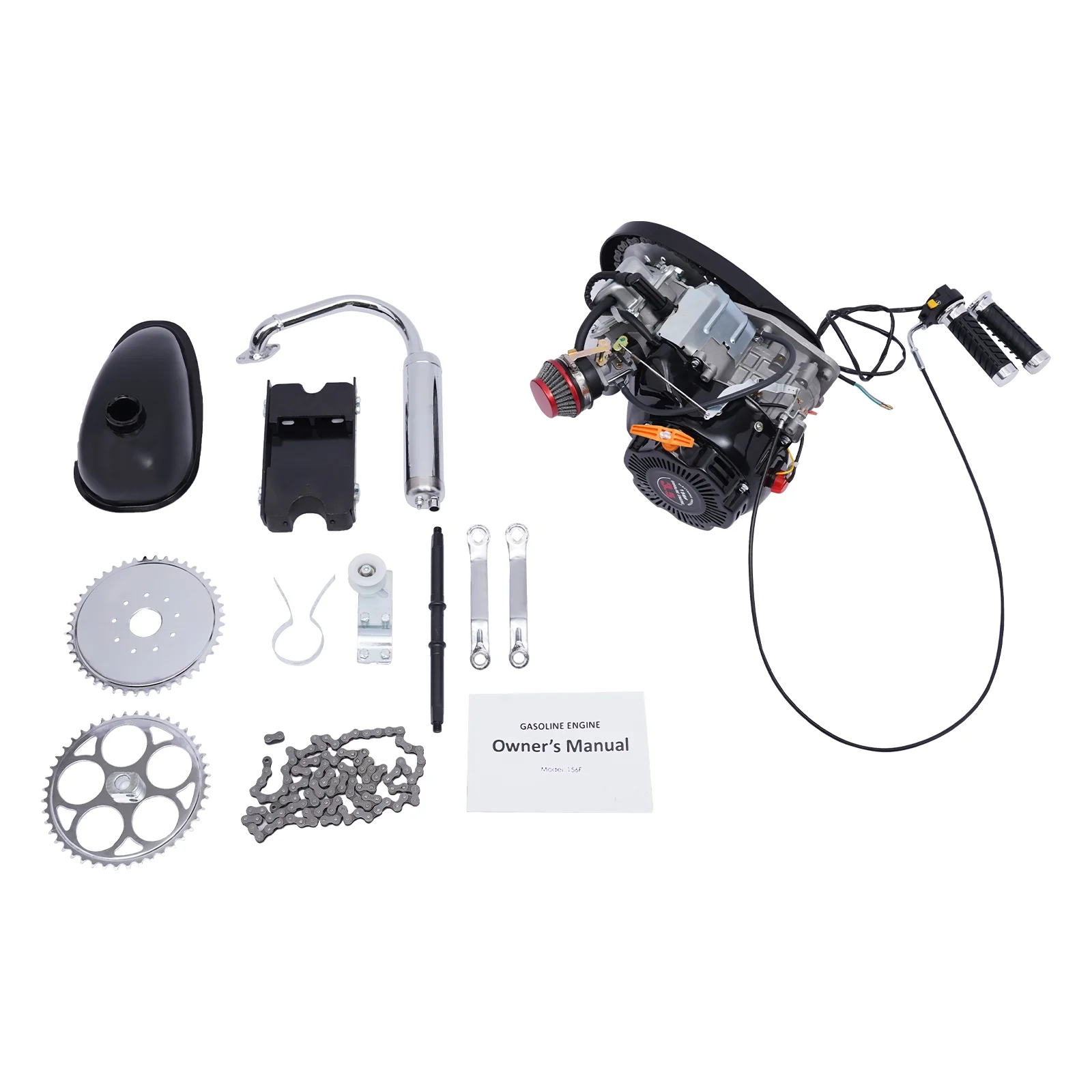

Package Included

1* 100cc 4-Stroke Gasoline Engine

1* Fuel Tank

1* Base Bracket

1* Exhaust Pipe

1* 44 Tooth Chain

1* Chain Tensioner

1* Chain

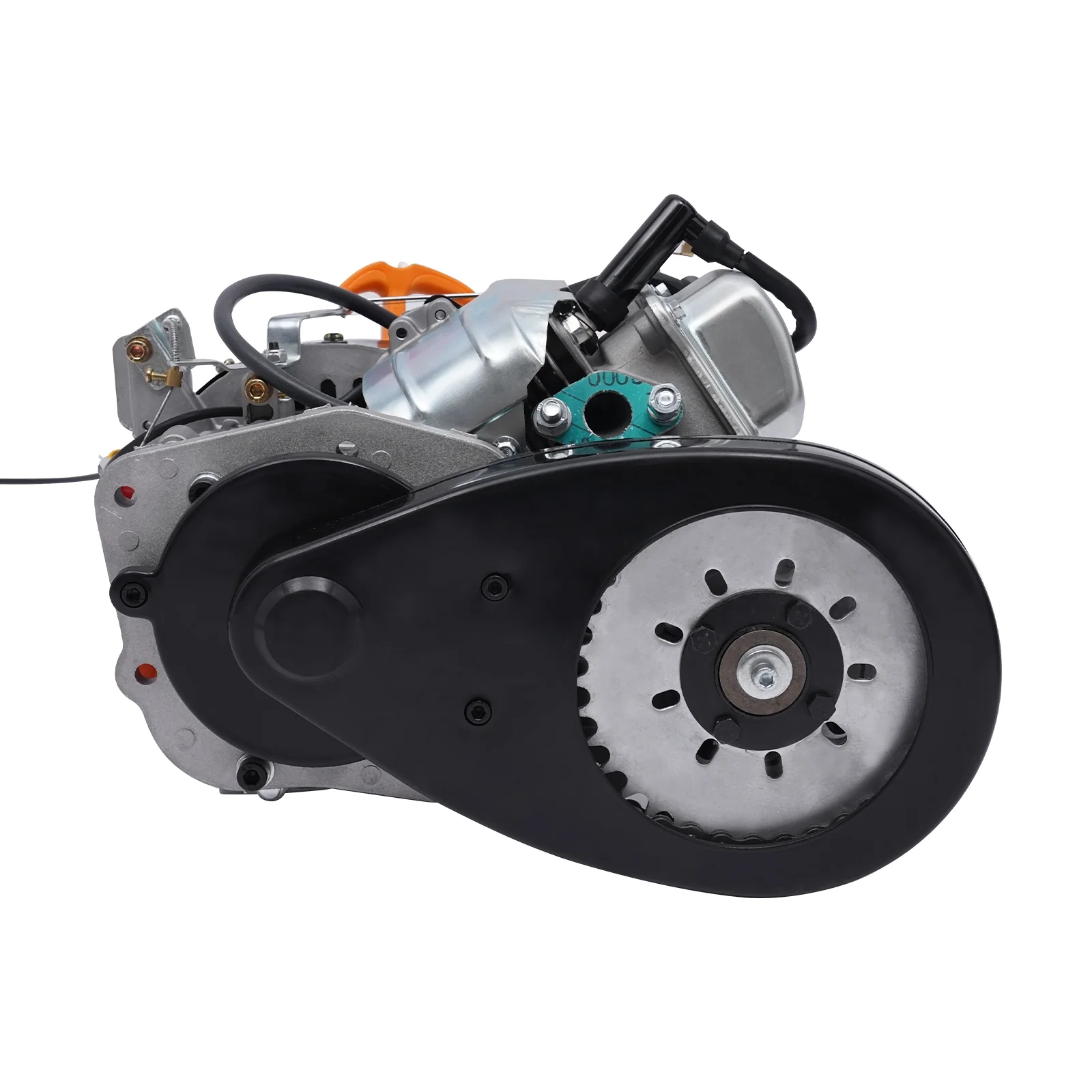

1* Chain Guard

2* Fixed Iron Pieces

1* Spark Plug Tool

1* Fuel Line

1*Fuel Tank Cap

1* Exhaust Cushion

1* Fuel Filter

1*Fuel Valve

1* Chain Tension Adjusting Tool

1* English Manual

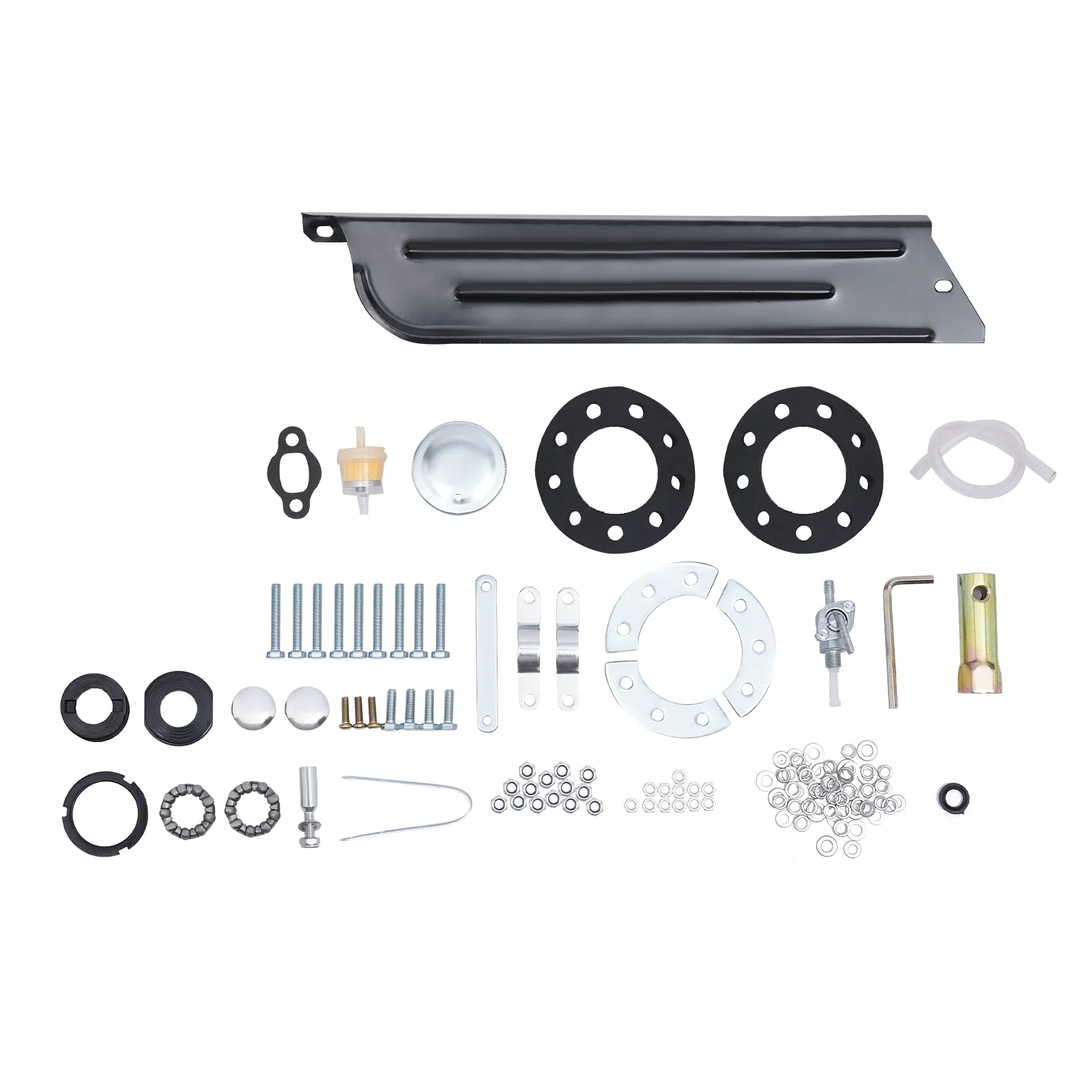

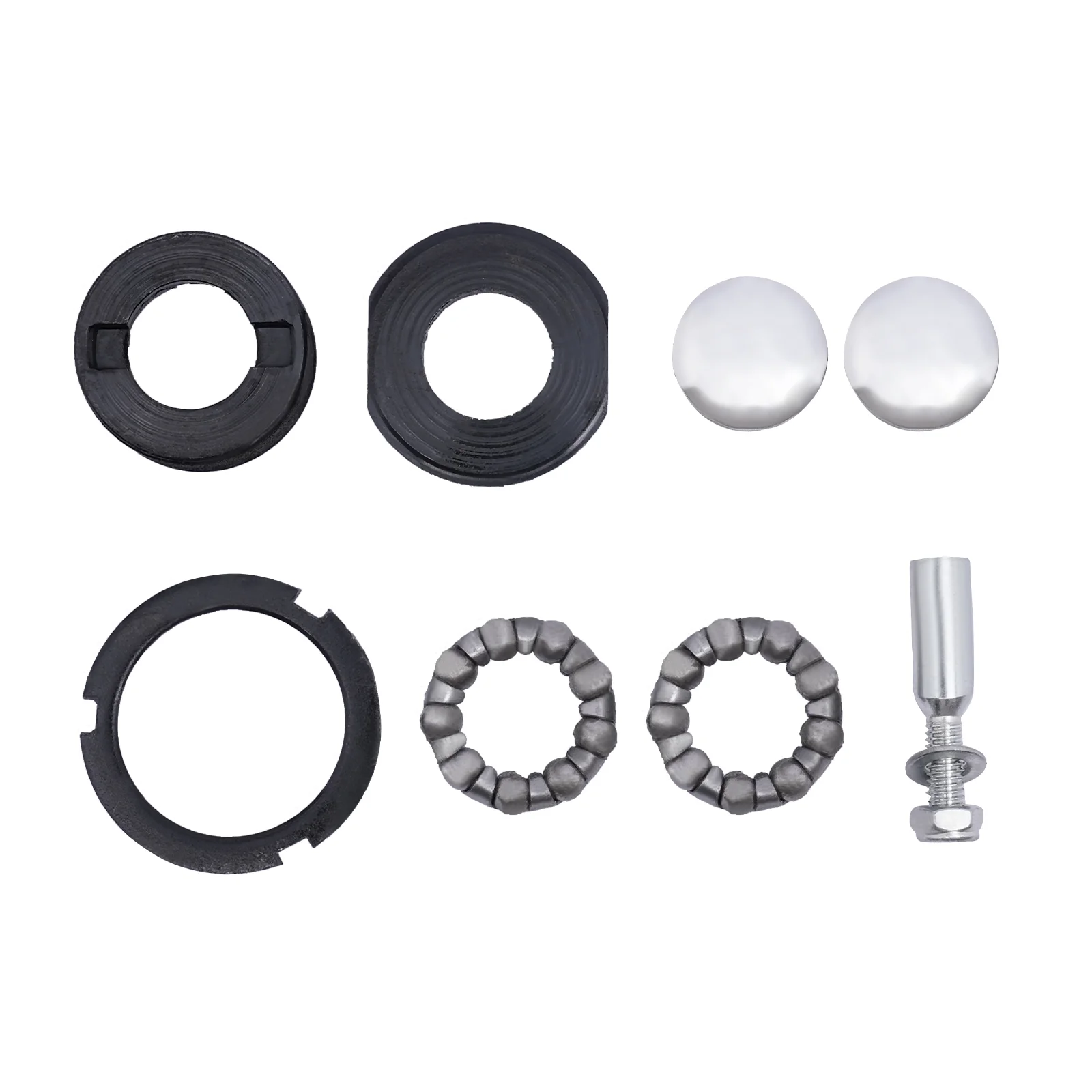

Other Mounting Accessories

Notes

1. We strongly recommend professional installation. Please contact us if you have any questions.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.

Miumaeov 100cc 4 stroke Bicycle Modified Engine Kit Set Single Cylinder with Chain 3HP 3600rpm

• Converts your bicycle into a motorized bike for enhanced riding experience
• Features a powerful 100cc 4stroke gasoline engine with a maximum output of 3HP
• Delivers a stable and quiet performance compared to 2stroke engines
• Equipped with a large capacity fuel tank (16L) for extended rides
• Low fuel consumption of less than 420 g/KWh for efficient operation
• Durable construction using highquality aluminum, iron, and plastic materials
• Designed for easy installation with all necessary components included
• Suitable for beach bikes with large triangular frame space
• Provides good heat dissipation performance and strong chain durability
• Compact product size: 285*35*28cm (112*137*11in) and packing size: 73*34*25cm (2874*1338*984in)
• Weighs 21kg (4629lbs) gross and 20kg (44lbs) net for manageable handling
• Specifications
• Model: EZ156F
• Type: Forced Air Cooling, 4Stroke, OHV, Singlecylinder, Inclined by 25 Degrees
• Starting System: Recoil Start
• Material: Aluminum, Iron, and Plastic
• Color: Black, Silver
• Rated Power: 2KW/3600rpm
• Max Torque: 45Nm/2500rpm
• Oil Capacity: 04L/01gal
• Oil Consumption:<68 g/KWh
• Min Stable Speed Unloaded: 3600rpm
• Reduction Ratio: 1:1
• Bore x Stroke: 56x40 mm
• Displacement: 100cc
• Compression Ratio: 7:1
• Packing Size: 73*34*25cm/2874*1338*984in
• Gross Weight: 21kg/4629lbs
• Net Weight: 20kg/44lbs
