Eastwood Mp250i Multi - Process 250 Amp Welder MIG - TIG - ARC

When you want a Multi-Process machine that's built to deliver great results with no compromises, you need the Eastwood Elite MP250i. It has all of the features of a standard DC TIG Welder like High Frequency Start and a Rocker Style Foot Pedal so when you switch from MIG to TIG you know you're going to get the same great results you'd expect from a dedicated TIG machine.

When you're doing a full-scale auto restoration, sometimes one welding function, whether it��s MIG or TIG, isn't going to be enough. This machine is completely plumbed for MIG and TIG welding, and the cart holds a gas bottle for each so you can almost instantly switch between functions without changing hoses and regulators like you would with other units. That means everything stays connected and ready to weld, and with a flip of a switch you can go from MIG to TIG welding when you're working on body panels, roll cages, custom-fab parts or other work.

Specifications

Power Voltage (V): 1 phase 240V+/-10%, 1 phase 120V+/-10%
Frequency (Hz): 50/60
No Load Voltage (V): 56V
Rated Input Current (Amps) 240V: MIG = 47.3, TIG = 35.7, ARC = 53.5
Rated Input Current (Amps) 120V: MIG = 42, TIG = 31.2, ARC = 51.1
Output Current Adjustment (Amps) 240V: MIG = 50-250, TIG = 15-250, ARC = 25-250
Output Current Adjustment (Amps) 120V: MIG = 50-140, TIG = 15-140, ARC = 25-140
Output Voltage (V) 240V: MIG = 16.5-26.5, TIG = 10.6-20, ARC = 21-30
Output Voltage (V) 120V: MIG = 16.5-21, TIG = 10.6-15.6, ARC = 21-25.6
Duty Cycle: 60% @ 250 AMPS @240 VAC and 60% @ 140 AMPS @120 VAC
Wire Size: .030 to .045
Power Factor: 0.73
Efficiency (%): 80%
Wire Feed Speed (in/min): 78-629
Post Flow Time(seconds): MIG 1.0+/-0.05 and TIG 5.0+/-0.5
TIG Welding Starting Method: High Frequency Start
Cooling Method: Fan
Gas System: Fully Independent MIG and TIG Systems
Gas Flowmeter: Brass, CO2/Argon Compatible
Welding Gas Bottle Capacity: Two 80 cu ft Cylinders
Dimensions: 30" x 29" x 15"
Weight: 159.83 lbs. (72.3 kg)
Plug Type: NEMA 6-50P
Wire Spool Sizes: 8 or 12 inch wire spools (44 lb. max weight)
Warranty: 3 Years

Contents

Included in 2 boxes
Eastwood Elite 250 Amp MultiProcess Welder
ERGO24 MIG Torch (14.8 feet)
WP17 TIG Torch (12 feet)
300 amp Electrode Holder (10 feet)
300 amp Ground Cable (10 feet)
Adaptor Cord (24")
TIG consumables
0.030 and 0.035 MIG tips
Gas Bottle Chains
Gas Hose
Two Standard Gas Regulators (C02,Argon)
Cable Hooks
Contact Tip Wrench
Front and Rear Caster Assemblies
Bracket to Hold Two Gas Cylinders
Foot Pedal for TIG Welding (15.9 Feet)
Instruction Manual

Spool Gun for welding aluminum is optional and not included.

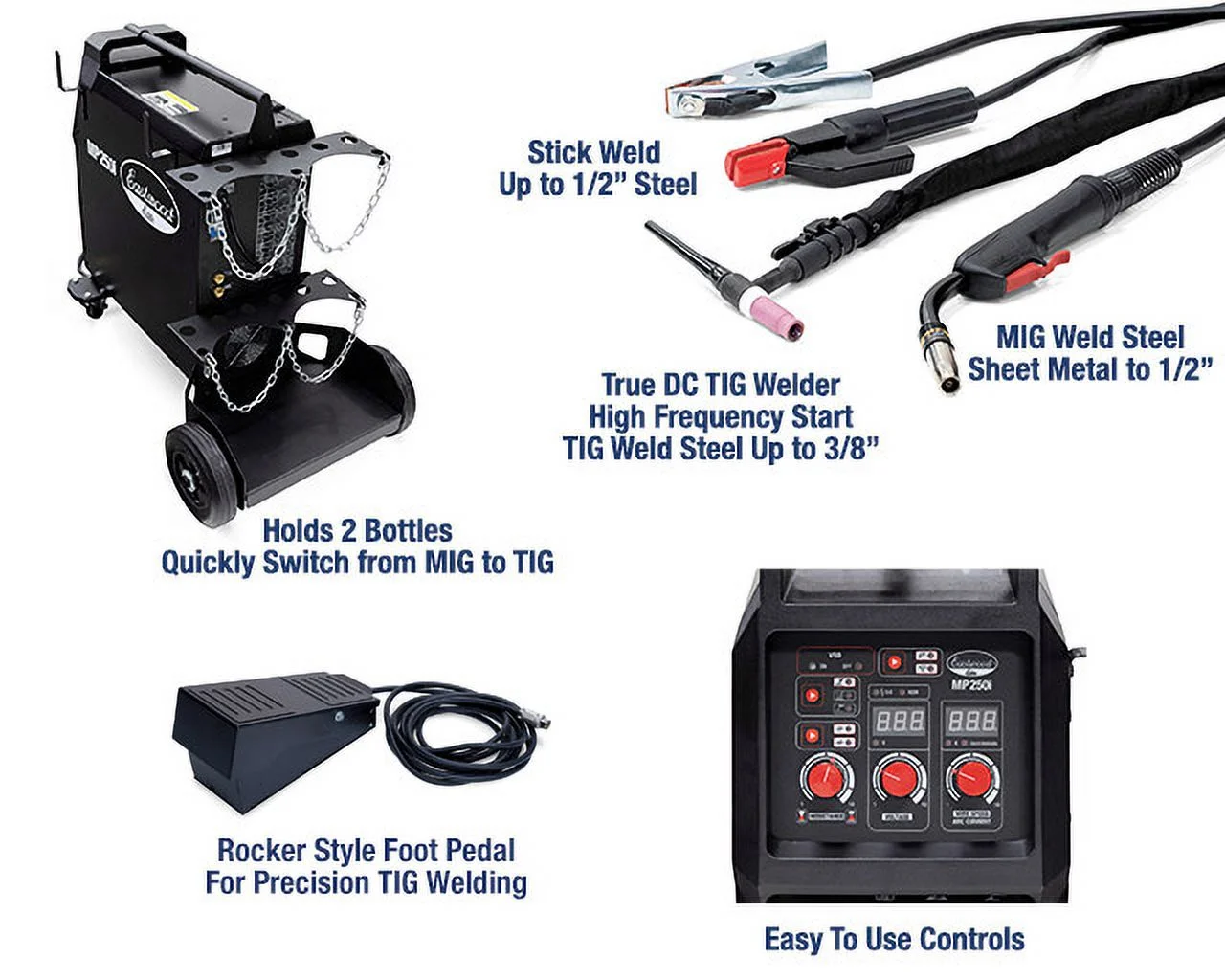

• Operates on either 120 or 240V
• Welds steel and stainless out of the box - Welds aluminum, with optional spool gun
• MIG Welds thin steel sheet metal or up to ? inch steel plate
• TIG Welds chrome moly tubing or thin steel sheet metal or stainless up to 3/8 inch thick
• Arc Welds up to ? inch steel and stainless
