Rockford Fosgate Prime 1200W Class D Monoblock Amplifier 1/2/4 Ohm + Install Kit

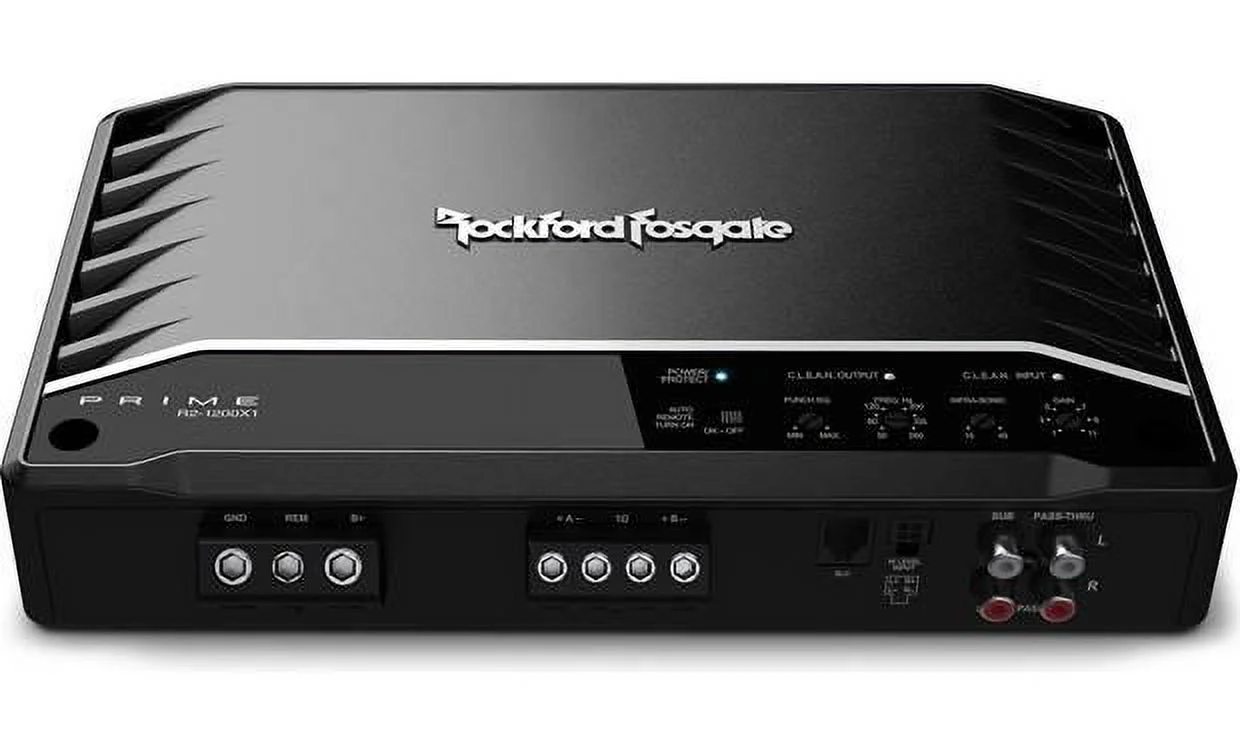

Rockford Fosgate Prime 1200W Class D Mono Amplifier R2-1200X1

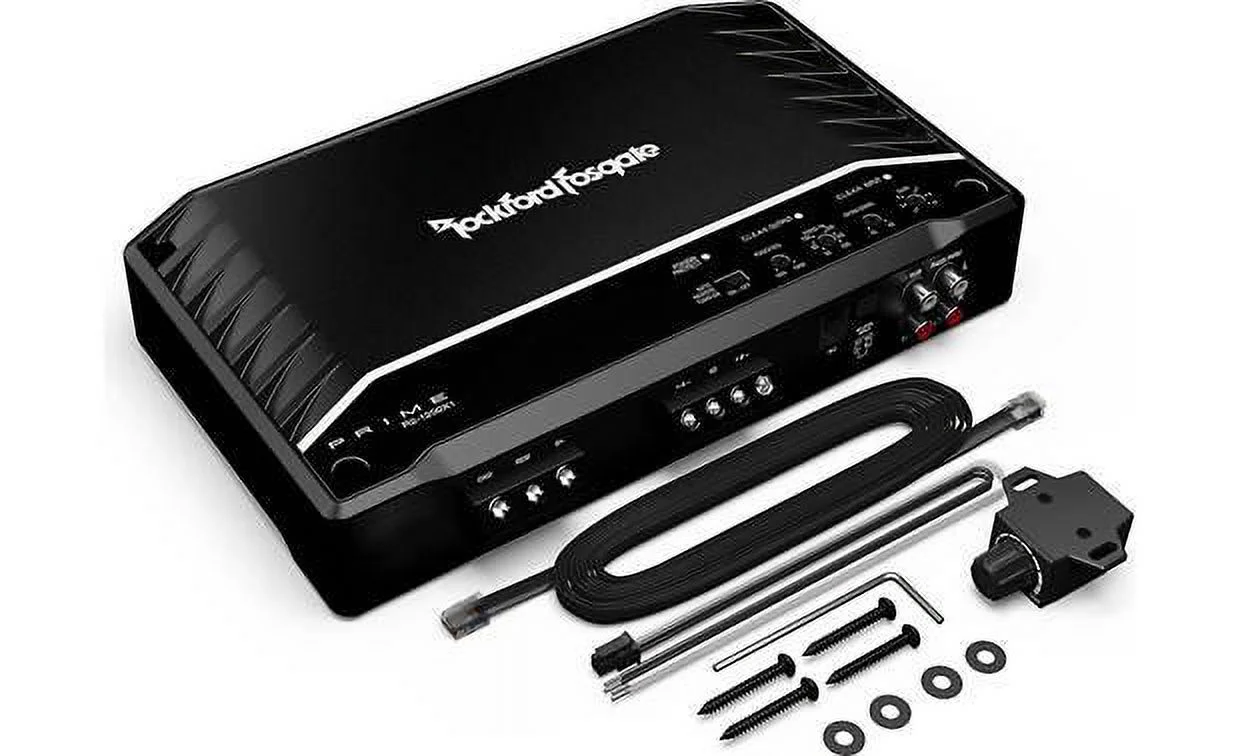

This listing includes:

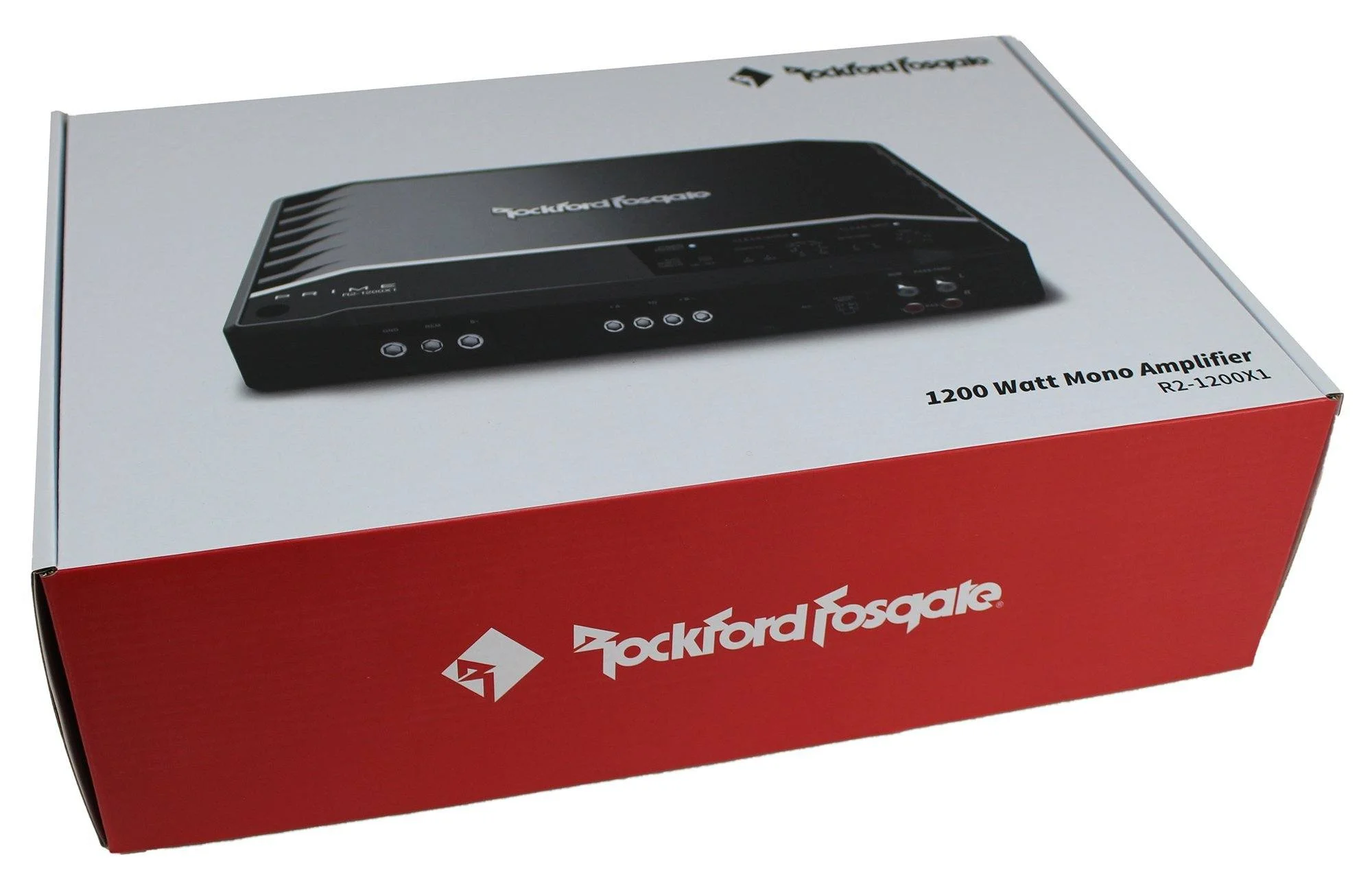

(1) R2-1200X1 Amplifier
(1) RFK4 4 Gauge PC-OFC Power Install Amplifier Kit

Primed for Performance, the R2-1200X1 amplifier is a 1200 watt, class-D, capable of operating at 4, 2 or 1 Ohm mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

The Prime Series were developed for car audio fanatics that want a reliable amplifier - with all the power and performance you've come to expect from Rockford Fosgate - at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being "under rated," easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

Balanced Differential Inputs with RCA Pass Through Outputs
High Level Input Capable
Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
Features C.L.E.A.N. Set-up
Variable Input Gain adjustment level

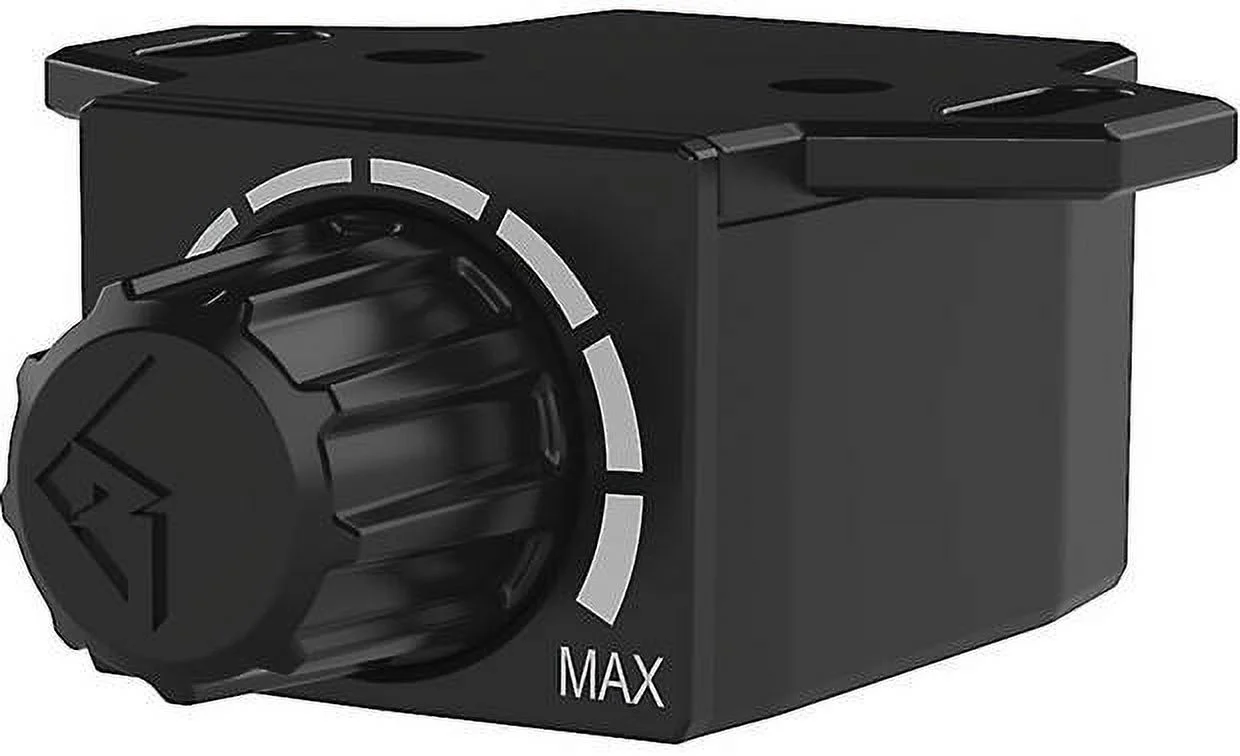

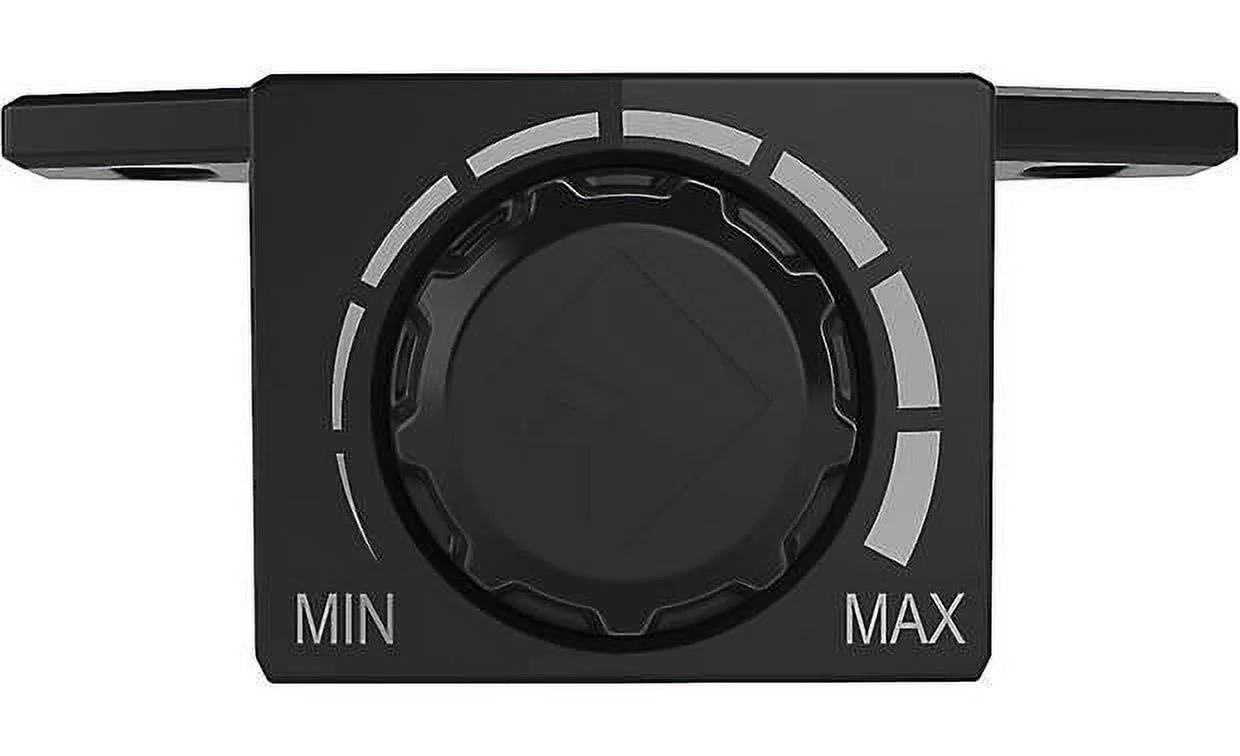

Includes RLC Remote Level Control
Variable Infrasonic Filter
Continuously Variable On Board Punch EQ
Top Mounted Control Panel
Short Circuit & Over Current Protection
CEA-2006 Compliant & CE Compliant
Cast aluminum heat sink
Full Range Class D
Rollback Protection
Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
1 Year Warranty

Features:
Number of Channels: 1 (Monoblock)
Total Power: 1200W
Rated Power:
400W x 1 @ 4 Ohm
800W x 1 @ 2 Ohm
1200W x 1 @ 1 Ohm
Dynamic Power:
489W x 1 @ 4 Ohm
889W x 1 @ 2 Ohm
1389W x 1 @ 1 Ohm
Bridgeable: No
Frequency Response: 20 Hz - 250 Hz
Input Sensitivity:
Low-Level: 150 mV - 4V
High-Level: 450mV - 12V
Circuit Topology Class: Class D

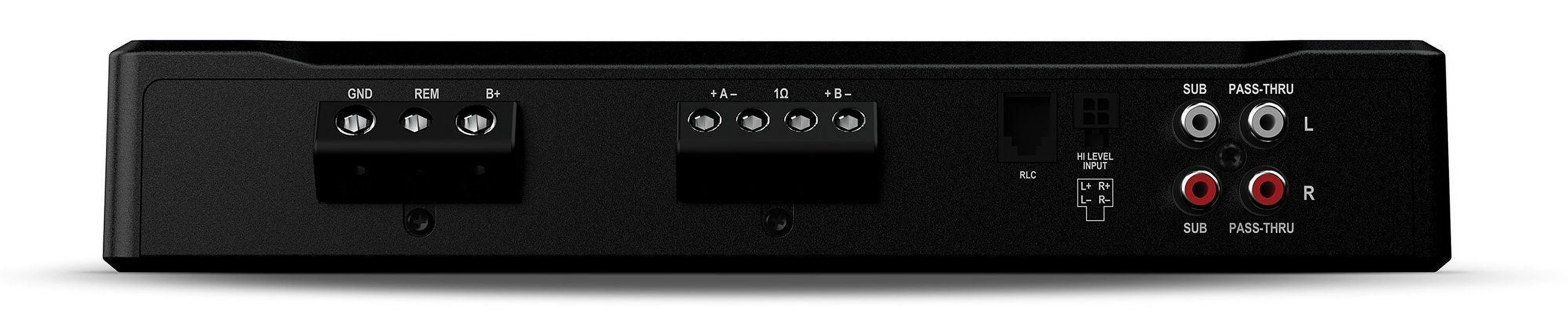

Signal Input:
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output:
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Tone controls: 0 to +18 dB @ 45 Hz
Crossover Controls:
Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
Remote Controls: Yes
Power Wire Gauge: 4 AWG
Power Input Connector: Compression Terminal Block
Speaker Wire Gauge: 8 AWG
Speaker Output Connector: Compression Terminal Block
Cooling: Convection
Operating Voltage: 9-16 VDC
Recommended Fuse (Not Included): 200 A
Max Current Draw (13.8V Sinewave): 121 A

Dimensions:
1.9" x 6.8" x 11.3"

• Purchase this amp and install kit bundle at no additional cost!
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• Continuously Variable On Board Punch EQ
• Full Range Class D
• Cast aluminum heat sink
