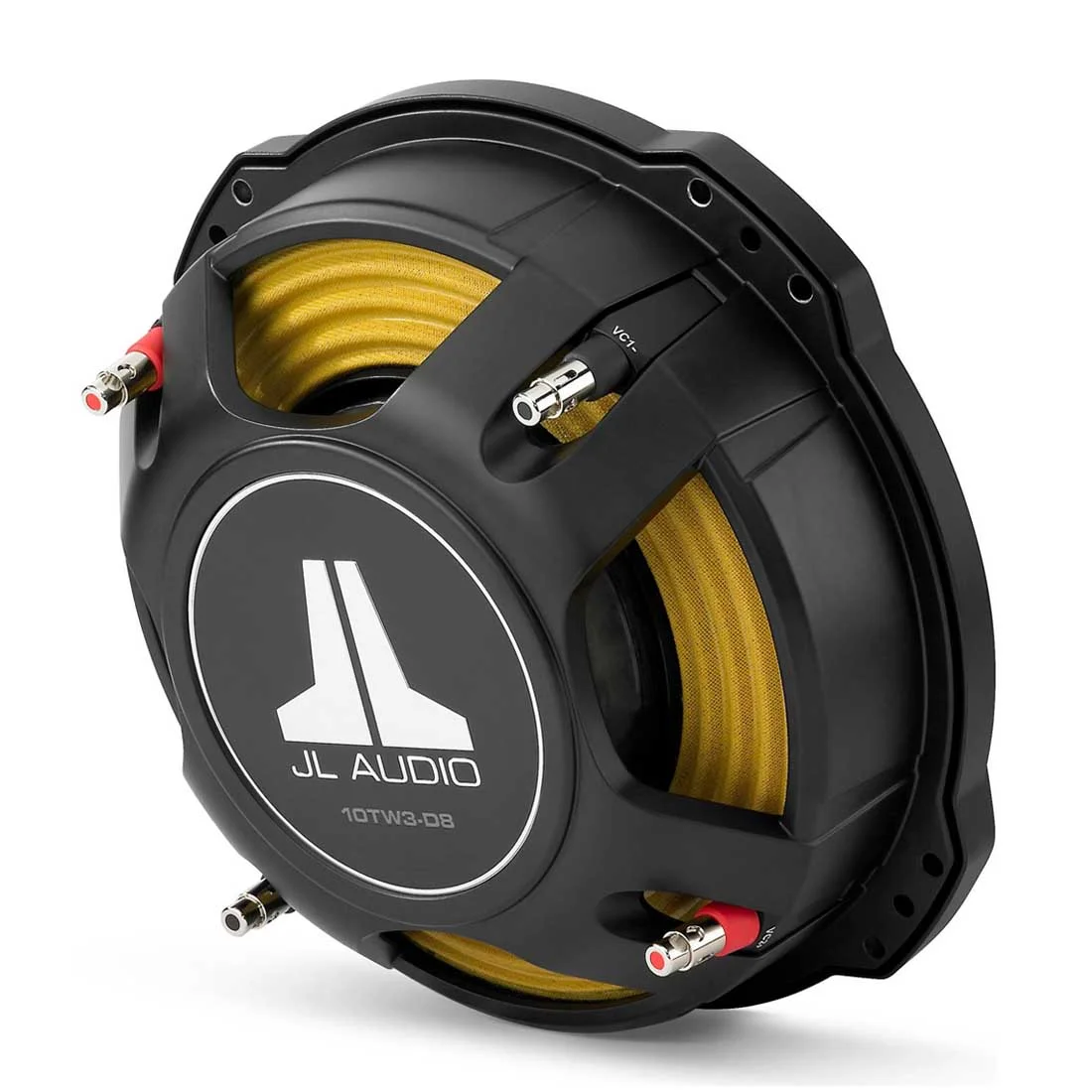

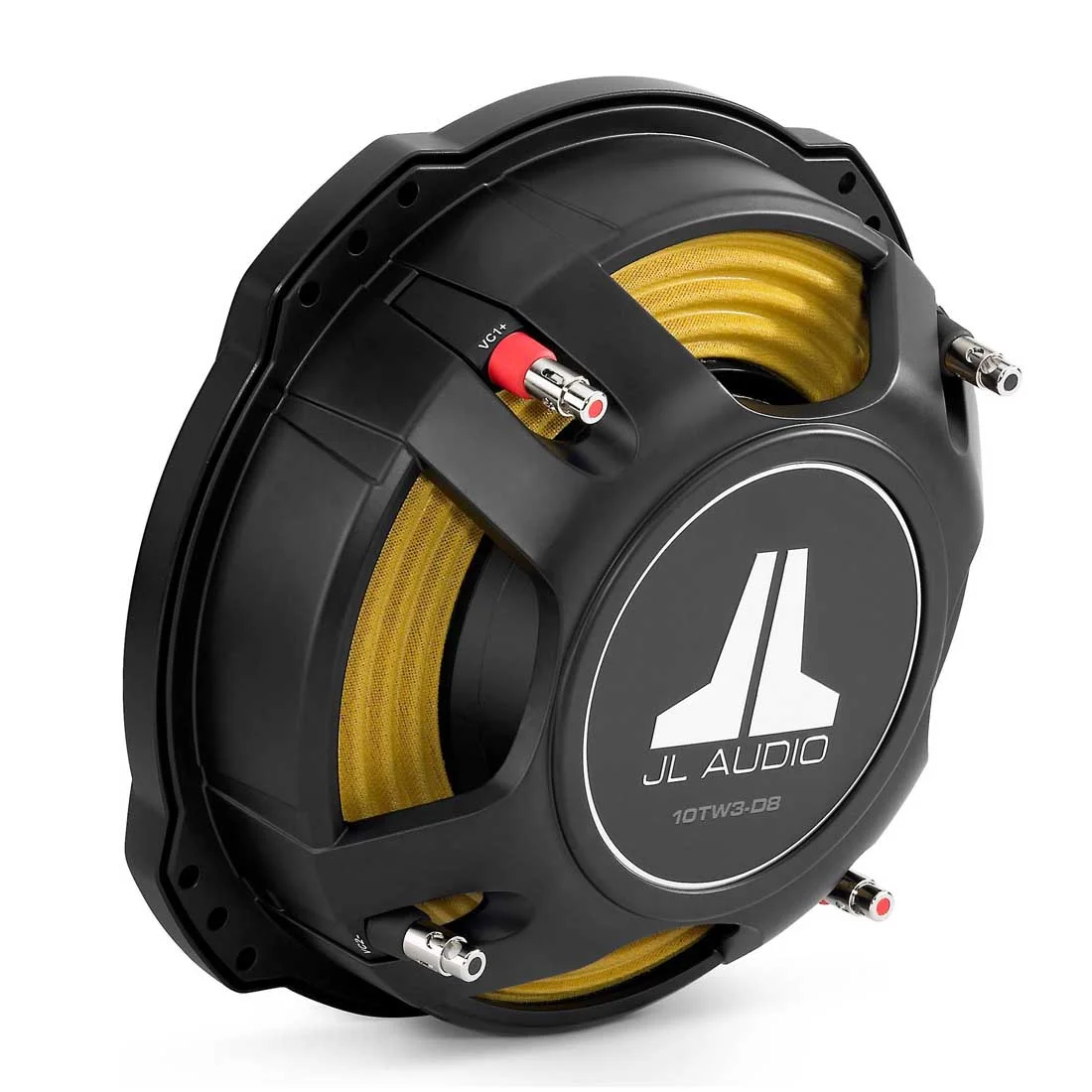

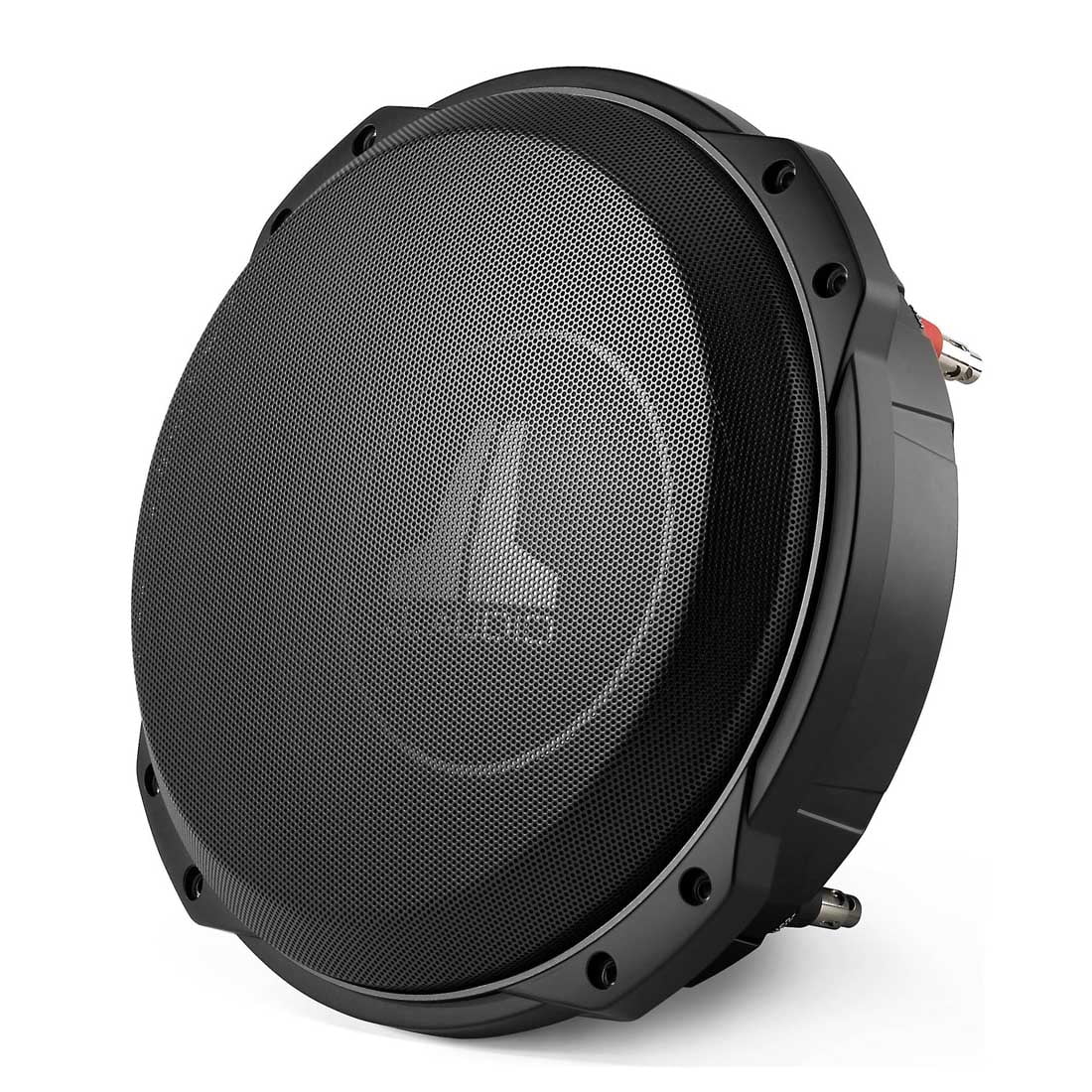

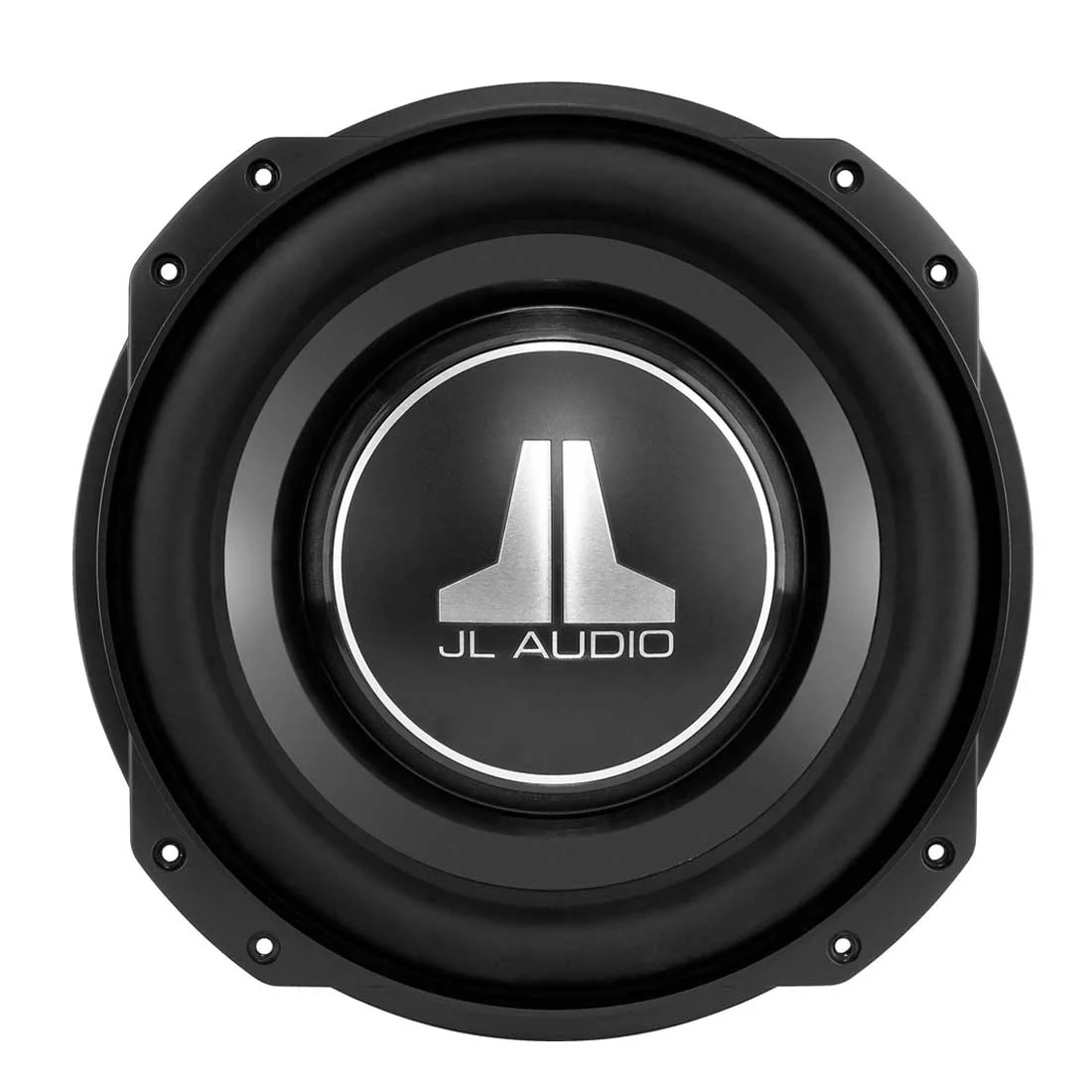

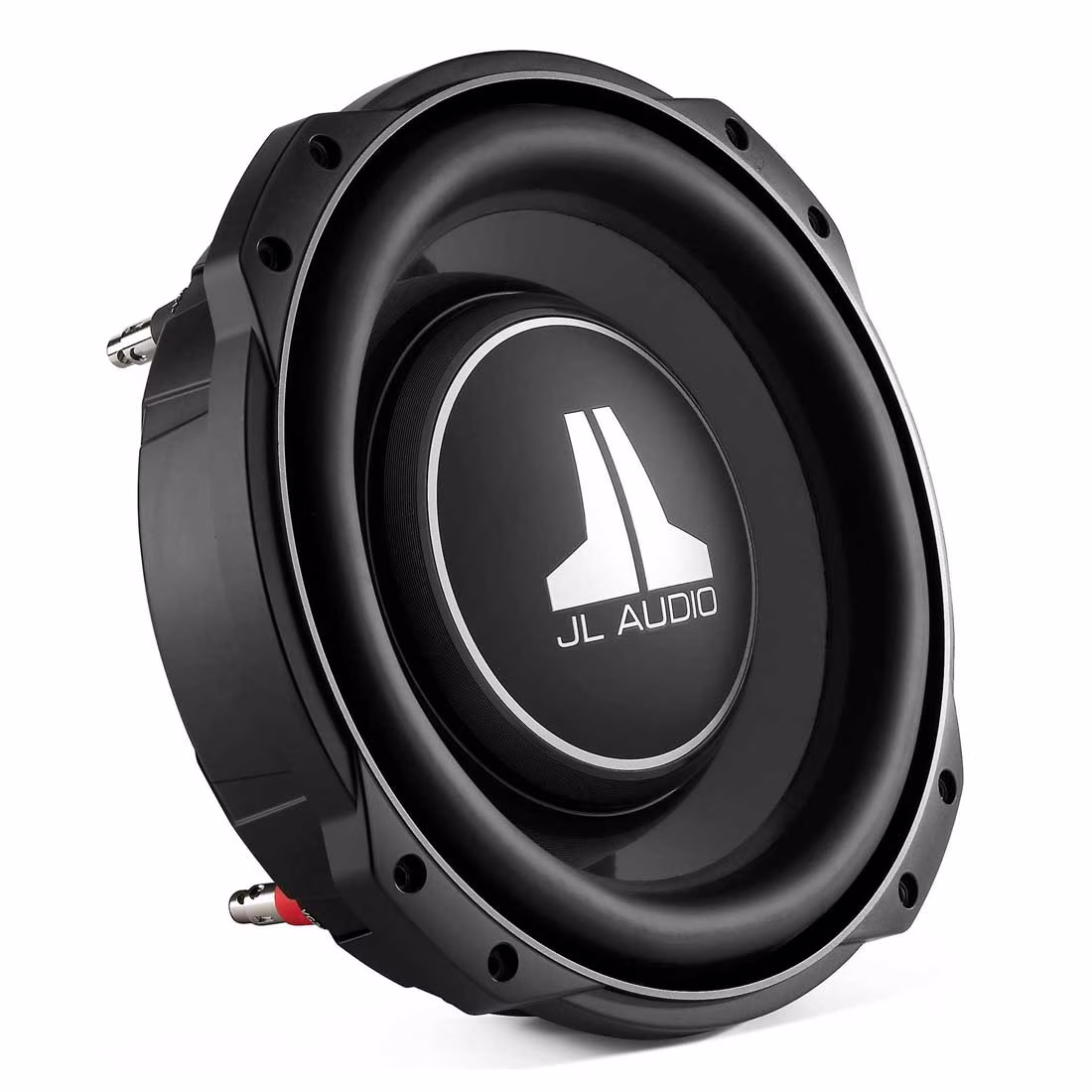

JL AUDIO 10TW3-D8
10-inch 400 Watts RMS Dual 8-Ohm Voice Coil Shallow-Mount Subwoofer
TW3s are optimized for small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints. We know you��re going to love working with these amazing Subwoofers.
Key Features:
- Very shallow mounting depth (3.25 / 3.50 Inches)
- No pole vent: permits mounting close to the rear wall of enclosure.
- Very small sealed enclosure volume requirements
- Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
- DMA-optimized motor designs
- ��concentric tube�� architecture
- Patented ��floating cone attach method�� technology
- Cast alloy frame
- Injection-molded, mica-filled polypropylene cone
- Rubber surround
- Aluminum-alloy dust cap and rear cap with JL Audio logo
- Precision-built in USA at JL Audio��s Miramar, Florida factory with global components
Specifications:
- Continuous Power Handling (RMS): 400 W
- Recommended Amplifier Power (RMS): 200 - 400 W
- Nominal Impedance (Znom): Dual 8 ��
- Nominal Diameter: 10 in / 250 mm
- Overall Diameter: A1: 11.2 in / 284 mm | 10.5 in / 267 mm
- Mounting Hole Diameter: 9.625 in / 244 mm
- Bolt Hole Circle Diameter: 10.5 in / 267 mm
- Motor Outer Diameter: 5.1 in / 130 mm
- Mounting Depth: 3.25 in / 83 mm
- Driver Displacement: 0.019 cu ft / 0.54 L
- Net Weight: 10.1 lb / 4.6 kg
Parameters:
- Free Air Resonance (Fs): 39.262 Hz
- Electrical ��Q�� (Qes): 0.825
- Mechanical ��Q�� (Qms): 9.84
- Total Speaker ��Q�� (Qts): 0.761
- Equivalent Compliance (Vas): 0.510 cu ft / 14.44 L
- One-Way Linear Excursion (Xmax)*: 0.6 in / 15.2 mm
- Reference Efficiency (no): 0.23%
- Efficiency (1 W / 1 m)**: 82.27 dB SPL
- Effective Piston Area (Sd): 56.532 sq in / 0.0365 sq m
- DC Resistance (Re)***: 15.008 ��
- 10-Inch Shallow-Mount Car Subwoofer
- Continuous Power Handling (RMS): 400 W
- Nominal Impedance (Znom): Dual 8 ��
