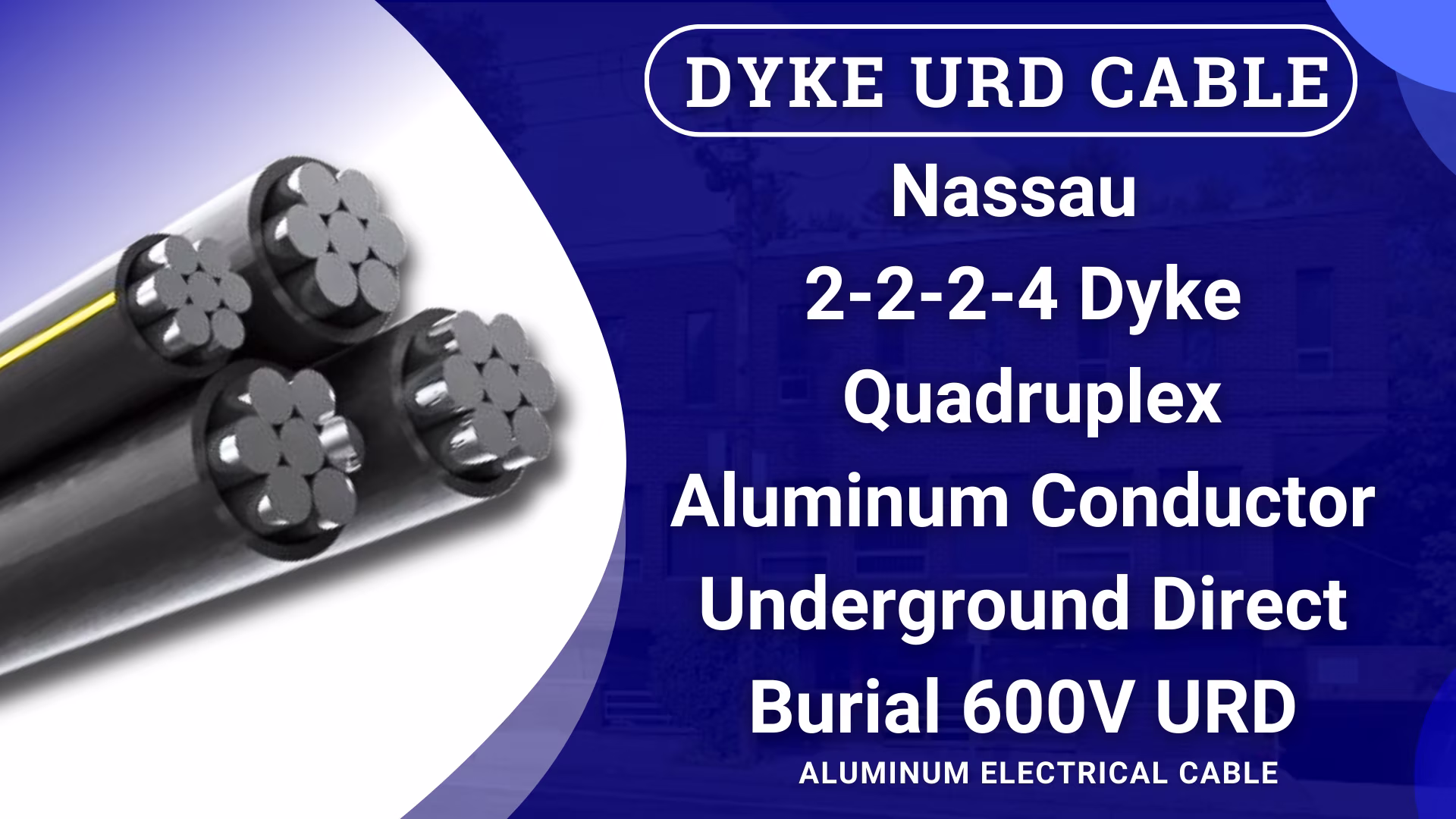

100' Aluminum URD Dyke 2 - 2 - 2 - 4 Cable Direct Burial Quadruplex Secondary Wire by General Cable

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share

          🎁Some products are for clearance!

          🔥Limited stock at this price!

          ⏰The time for the clearance activity is limited!

          🎁Some products are for clearance!

          🔥Limited stock at this price!

          ⏰The time for the clearance activity is limited!

          Description
          The Aluminum 600V URD is designed to serve in the secondary distribution circuits for power. In these secondary circuits, the electrical cable is installed in ducts or direct burial applications. Due to its versatility, conductor strength, and insulation integrity, it works well for these outdoor applications. It is also used in wet and dry places since the cable has a maximum operating temperature of 90��C. The electrical cable is also designed to provide an option of pre-pulling into ducts.

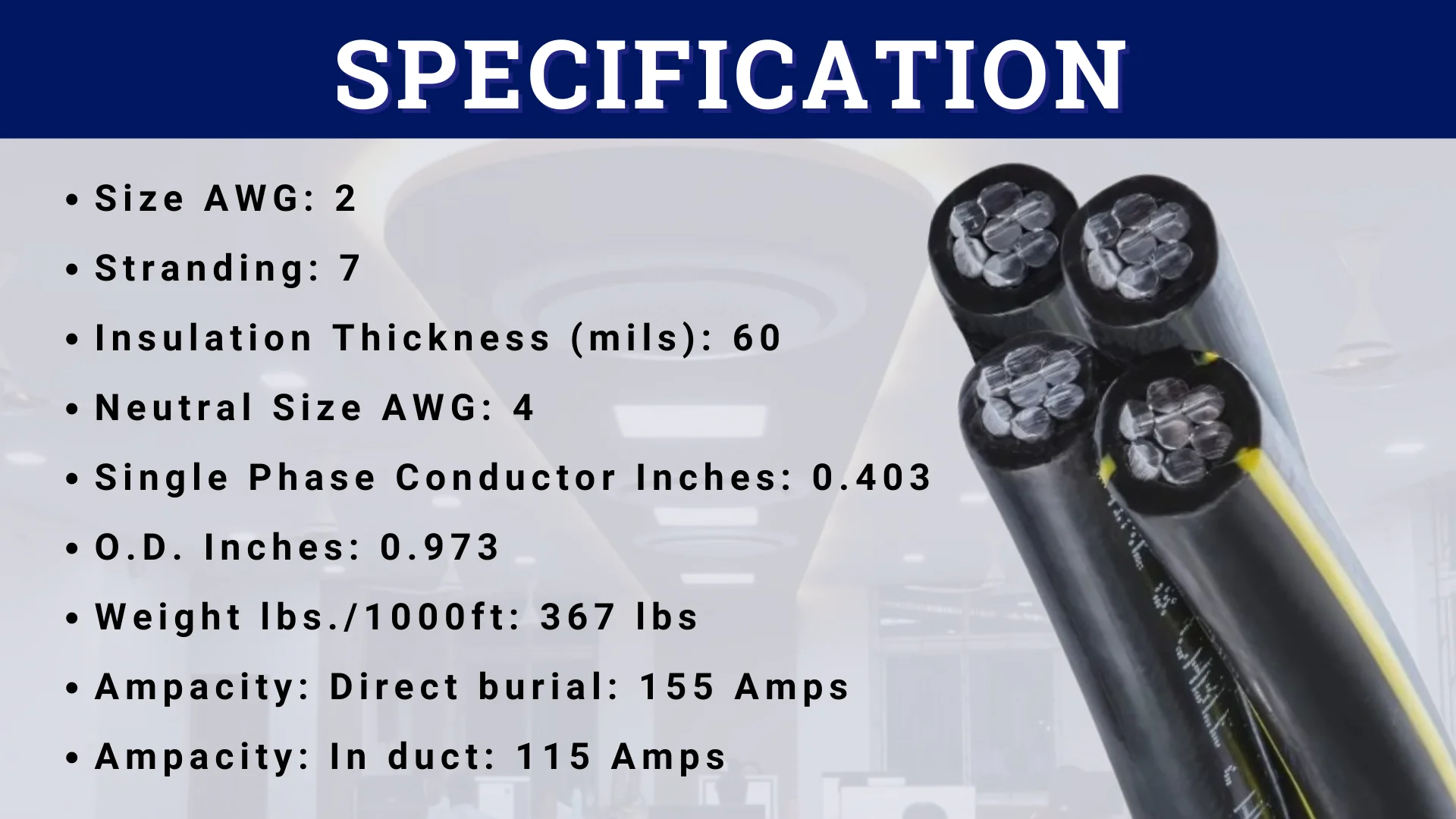

          • Size AWG2

          • Stranding: 7

          • Insulation Thickness (mils): 60

          • Neutral Size AWG: 4

          • Single Phase Conductor Inches: 0.403

          • O.D. Inches:  0.973

          • Weight lbs./1000ft: 367 lbs

          • Ampacity: Direct burial155 Amps

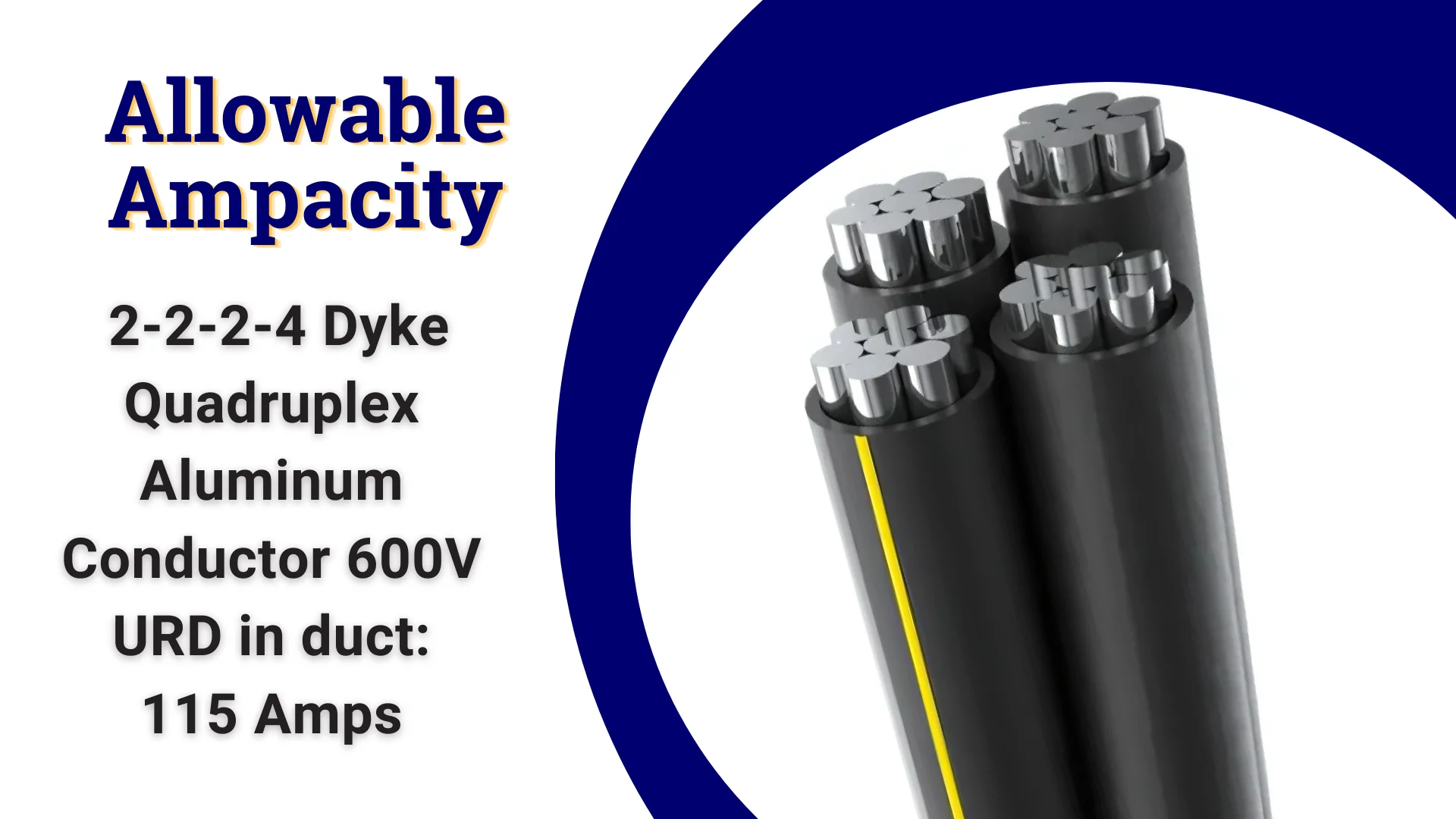

          • Ampacity: In duct115 Amps
