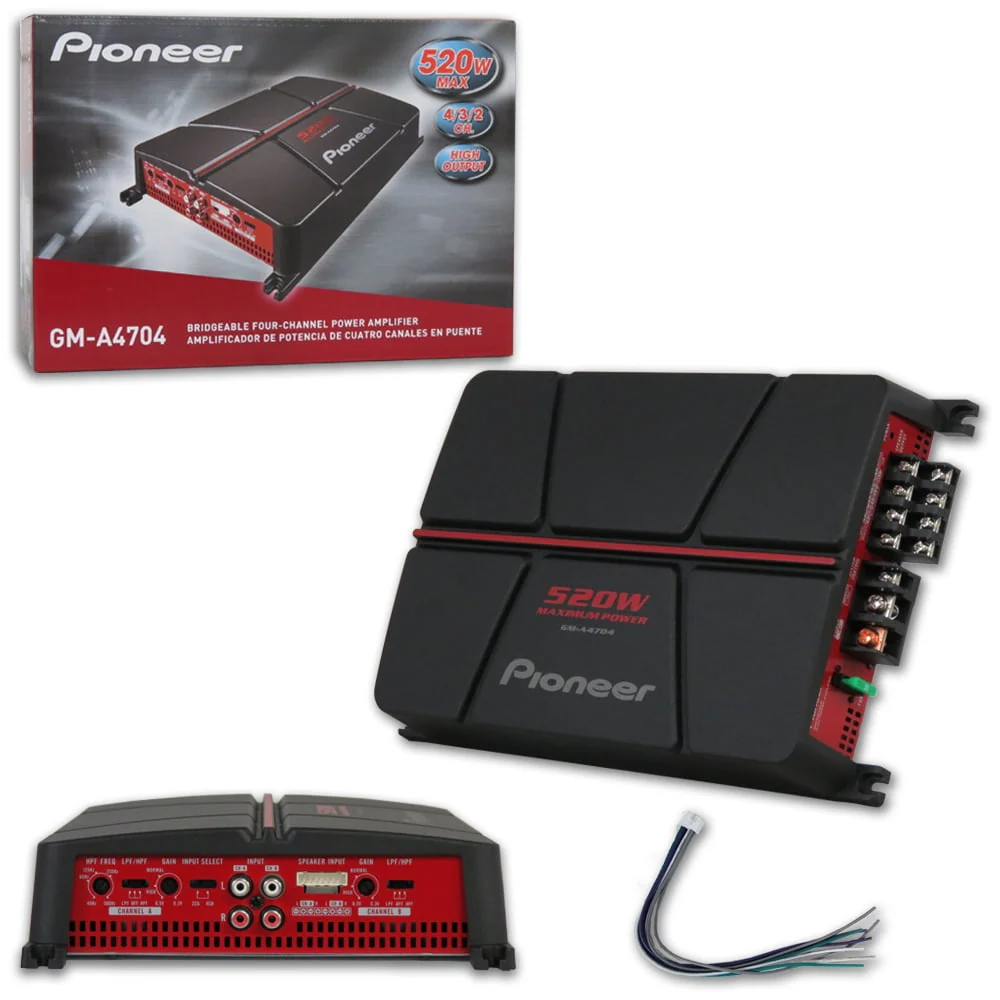

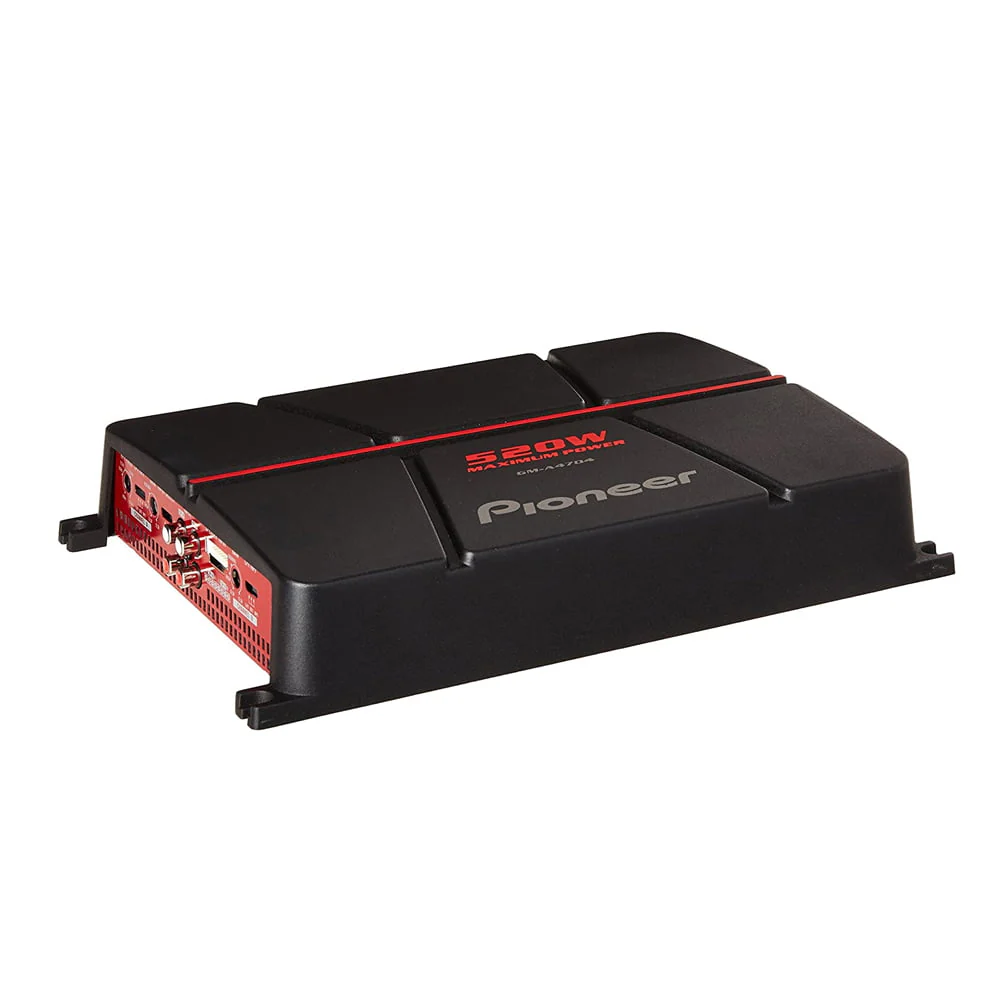

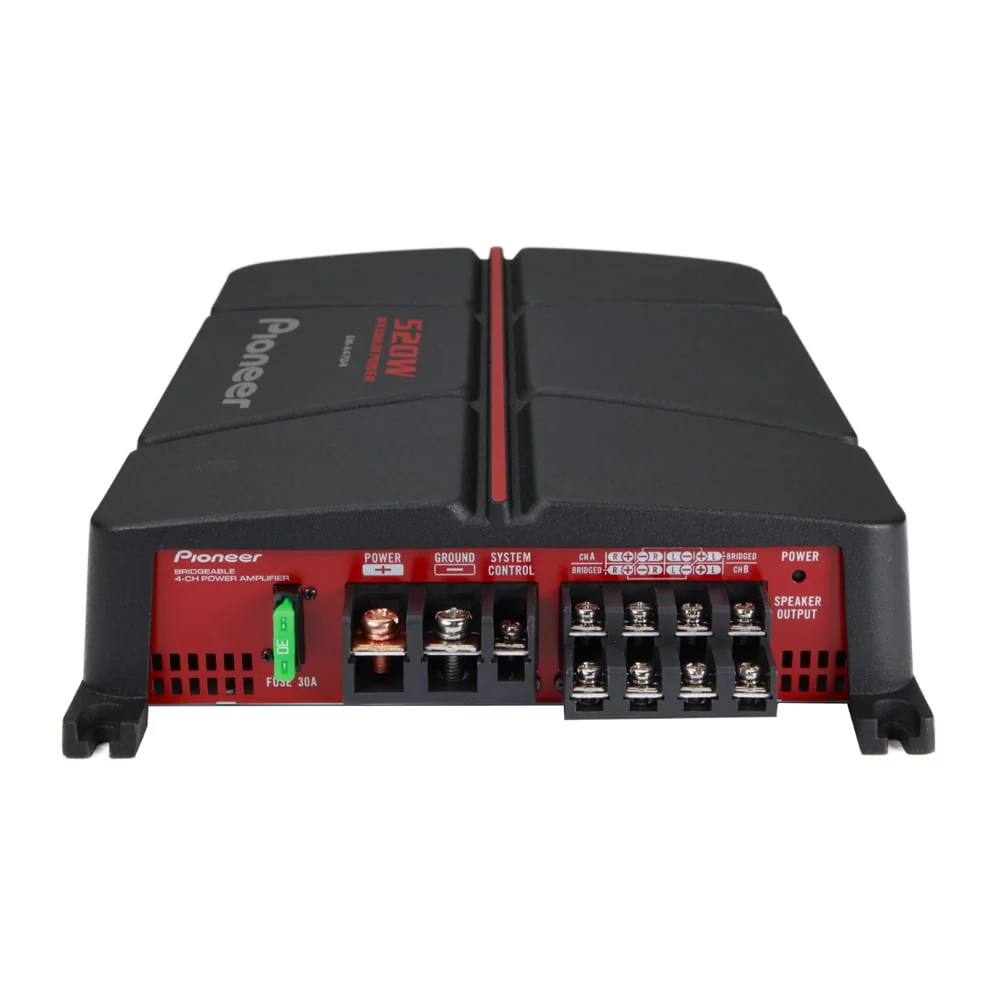

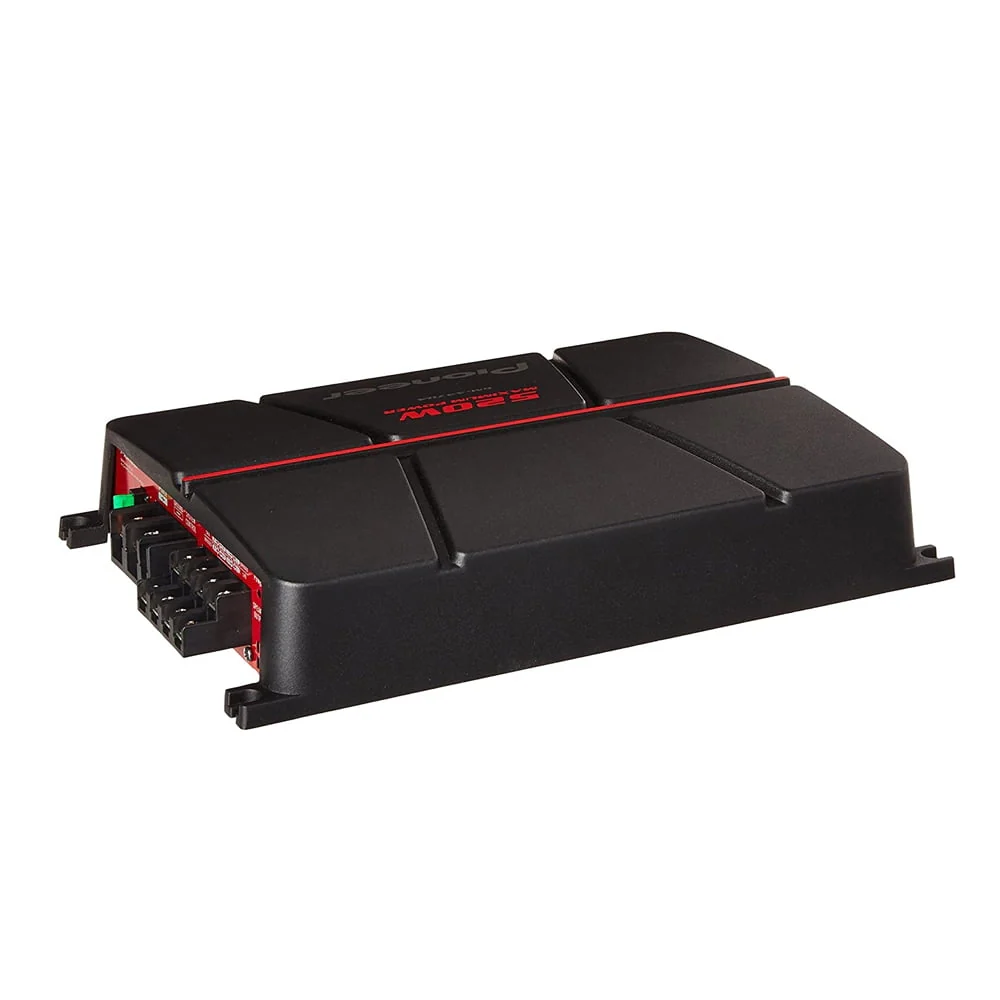

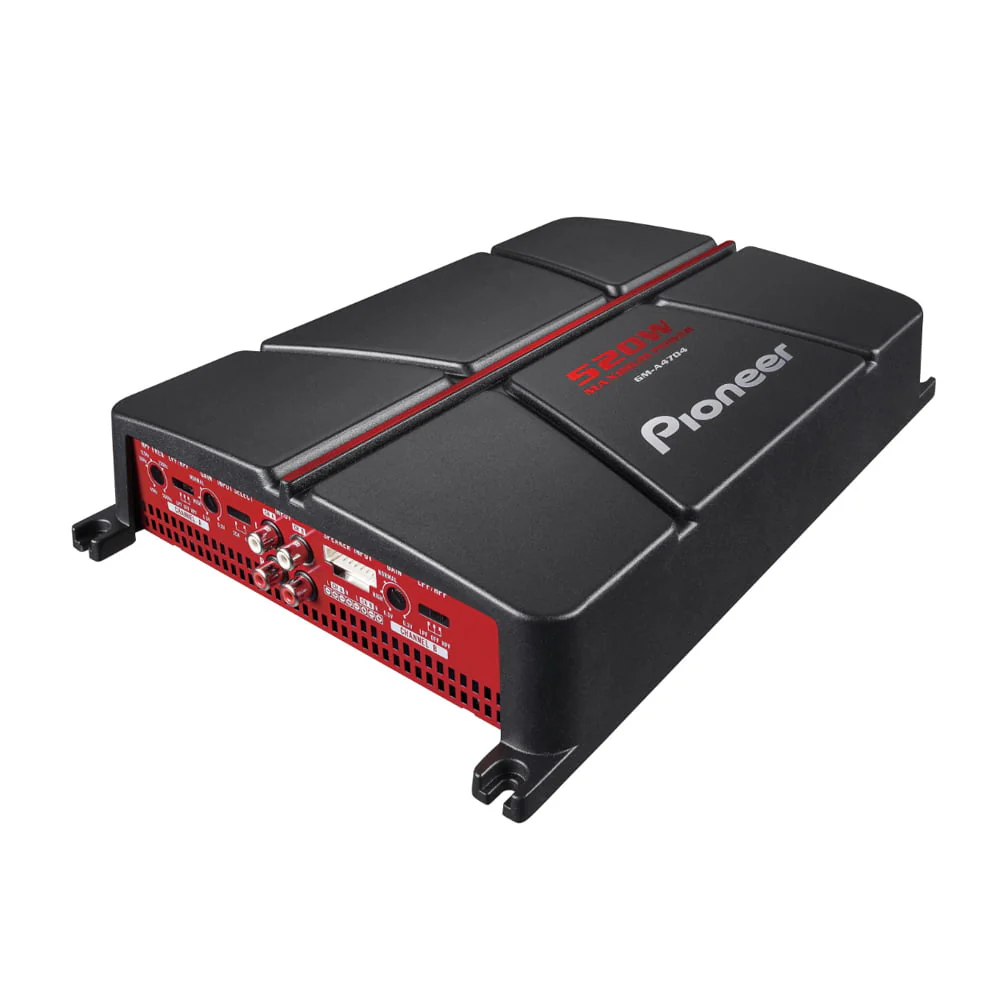

  • Pioneer GM - A4704 Class AB 4 Channel Car Audio Bridgeable Amplifier 520W Max

Pioneer GM - A4704 Class AB 4 Channel Car Audio Bridgeable Amplifier 520W Max

103.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share

          🎁Some products are for clearance!

          🔥Limited stock at this price!

          ⏰The time for the clearance activity is limited!

          🎁Some products are for clearance!

          🔥Limited stock at this price!

          ⏰The time for the clearance activity is limited!

          Description

          Car Audio 4-channel Class AB Amplifier
          Model: GM-A4704
          Max Power Rating:
          4 ohms: 40 watts x 4 channel
          2 ohms: 65 watts x 4 channel
          Bridged, 4 ohms: 130 watts x 2 channel
          Max power output: 520 watts
          CEA-2006 Compliant Amplifier
          Pulse Width Modulated MOSFET power supply
          Balanced Isolator Input Circuit
          LED power (on) and protect (off) indicators
          Soft start turn-on
          4, 3 or 2 channel operation
          Speaker-level (high-level) inputs with Signal Sensing Turn-on
          3-way protection circuitry (thermal, overload, and speaker short protection)
          Heavy duty aluminum alloy heat-sink for extreme heat dissipation
          Input sensitivity:
          Low level: 300mV - 6.5V
          High level: 3V - 26V
          Frequency Response: 10 - 70,000 Hz
          Total Harmonic Distortion (THD): <0.05%
          Signal to Noise Ration: >94 dB
          Selectable crossover modes (Ch A&B): LPF / OFF / HPF
          Crossover frequency Ch A: 80hz, 12 dB/octave
          Variable crossover frequency (Ch B): 40 - 500 Hz, 12 dB/octave
          Fuse Rating: 30A x 1
          4 - 8 gauge power and ground wiring is recommended for installation
          Dimensions: 12-1/2"W x 8-1/2"L x 2-3/8"H
